PICO Toµch Controller
32 www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.

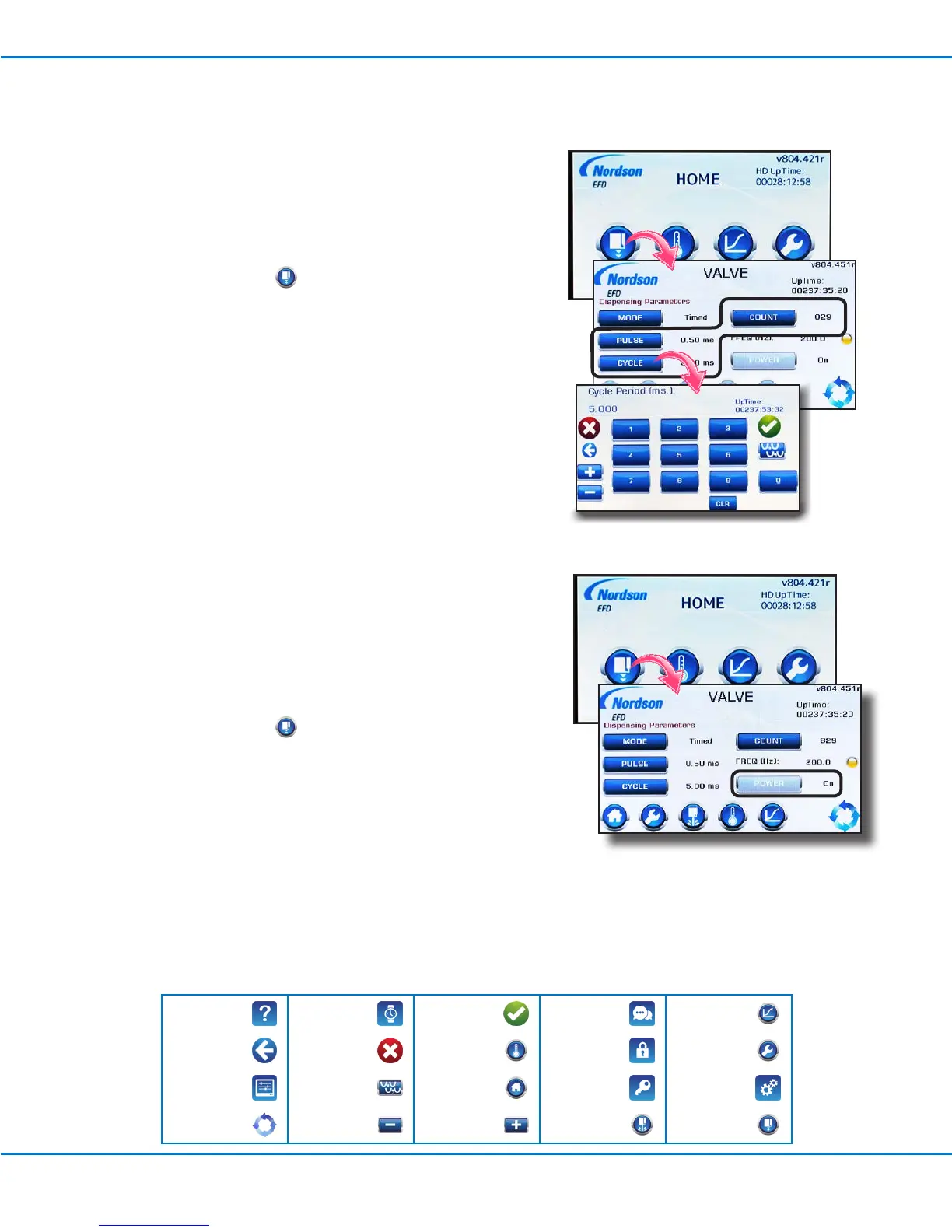

Adjusting the Valve Operating Parameters
(PULSE, CYCLE, or COUNT)
Follow this procedure to adjust how the valve operates, including
valve open time (PULSE), time between deposits (CYCLE), and
number of deposits per cycle (COUNT). For more information on these
parameters, refer to "VALVE Screen" on page 19.
1. Press the VALVE icon ( ).
2. Press PULSE, CYCLE, or COUNT. A numeric keypad appears for
data entry.
3. Enter the desired setting for PULSE, CYCLE, or COUNT.
• PULSE: How long the valve stays opens (in ms).
• CYCLE: Amount of time between deposits (in ms).
• COUNT: Number of deposits per cycle.
4. Press OK (check) > HOME to save the setting and return to the
HOME screen.
Setup and Programming Procedures (continued)
Switching Valve Power On or Off
Follow this procedure to set whether a valve initiate signal is processed.
Valve initiate signals are processed only when valve Power is ON.
NOTE: By default, valve POWER is ON when the controller is switched
ON (or anytime the controller is rebooted). To change the valve
POWER setting default, refer to "Appendix A, Remotely Operating the
Controller" on page 53.
1. Press the VALVE icon ( ).
2. Press POWER until the touchscreen shows the desired valve power
status.
• On: Valve closed; valve initiate signals processed.
• Off: Valve open; valve initiate signals NOT processed.
3. Press HOME to save the setting and return to the HOME screen.
ABOUT
CALENDAR
CLOCK SET
OK (check) LANGUAGE RAMP
Backspace Cancel HEATERS LOCKOUTS SETTINGS
LCD SETTINGS Decimal Point HOME PASSWORDS SYSTEM
CYCLE Decrement Increment PURGE VALVE
