PICO Toµch Controller
35www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
Setup and Programming Procedures (continued)

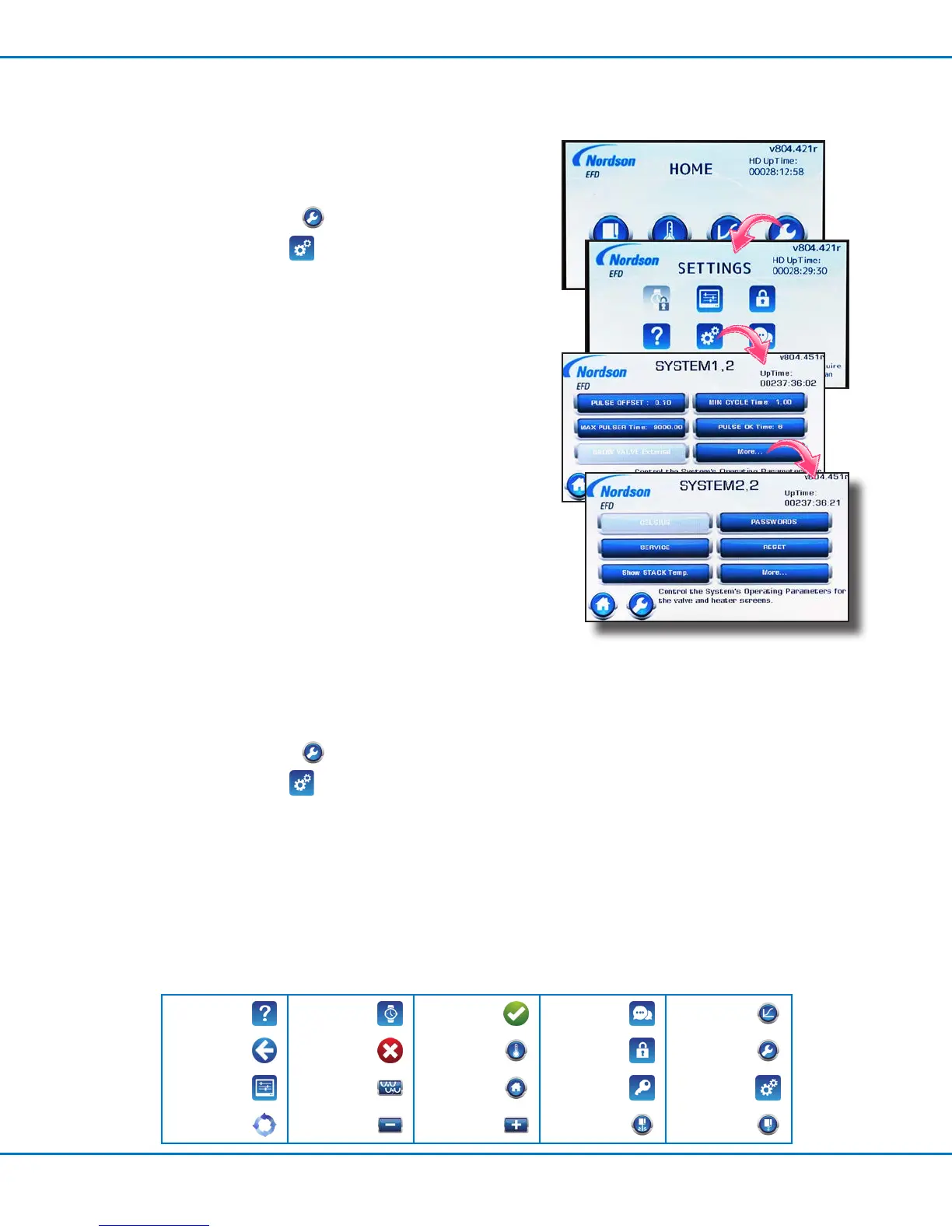

Viewing or Changing System Settings
Follow this procedure as needed to view or change the SYSTEM
settings explained under "SYSTEM Screens" on page 26.
1. Press the SETTINGS icon ( ).
2. Press the SYSTEM icon ( ) and enter the SYSTEM password.
3. Press MORE... to toggle between the SYSTEM1,2 and SYSTEM2,2
screens.
4. Refer to the SYSTEM section of the "SYSTEM Screens" on page
26 for detailed information the following SYSTEM screen
selections:
• PULSE OFFSET
• MAX PULSE Time
• SHOW VALVE External
• MIN CYCLE Time
• PULSE OK Time
• CELSIUS / FAHRENHEIT (how temperature units display)
• SERVICE
• Show STACK Temp.
NOTE: For PASSWORDS, refer to "Managing Password Protection"
on page 36.
NOTE: For RESET, refer to "Restoring the System to the Factory
Default Settings" on this page.
5. Press HOME to save the setting and return to the HOME screen.
Restoring the System to the Factory
Default Settings
Follow this procedure to restore all system settings to their factory-
default values.
1. Press the SETTINGS icon ( ).
2. Press the SYSTEM icon ( ).
3. Press MORE... > RESET > and enter the RESET password.
4. Press OK (check) to reset the system. The system prompts for
verication.
ABOUT
CALENDAR
CLOCK SET
OK (check) LANGUAGE RAMP
Backspace Cancel HEATERS LOCKOUTS SETTINGS
LCD SETTINGS Decimal Point HOME PASSWORDS SYSTEM
CYCLE Decrement Increment PURGE VALVE
To Next Page
