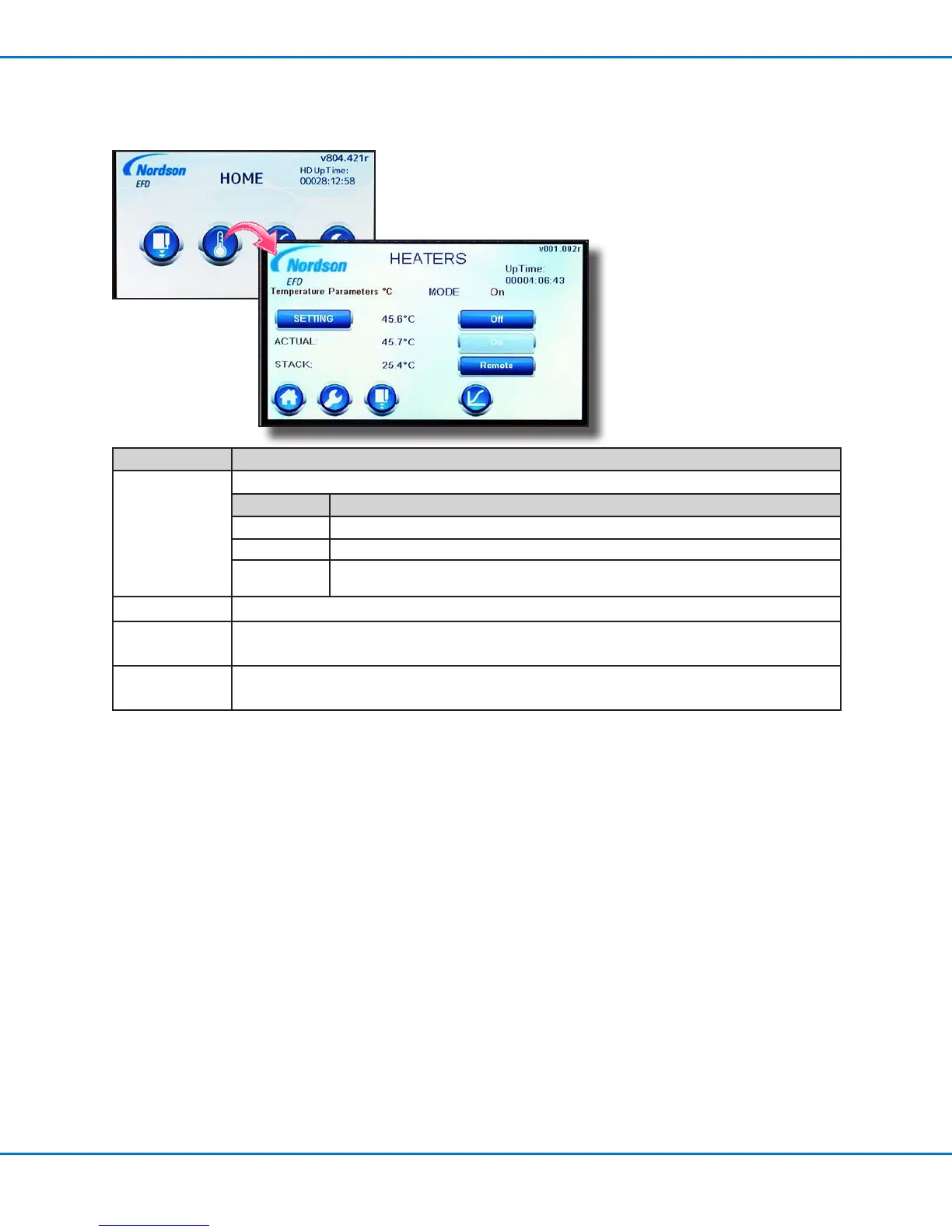

HEATERS Screen
The HEATERS screen is used to turn heater control on or off, change the heater control to remote operation, and to
enter a temperature setpoint for the valve heater.
Item or Button Description
MODE Shows the current heater control mode.
Mode Description
OFF Heater control is switched OFF.
ON Heater control is switched ON.
REMOTE The heater control follows the remote input supplied through the I/O connector. Refer to
"Input / Output Port Pin Descriptions" on page 46.
SETTING Sets the heater temperature in degrees C or degrees F.
ACTUAL
(Non-editable)
Shows the actual temperature of the heater.
STACK
(Non-editable)
If toggled on, shows the actual temperature of the piezo actuator stack. Refer to the SYSTEM
screen parameters under "SYSTEM Screens" on page 26 to toggle the STACK display.
To Next Page
