Wiring Diagrams (continued)

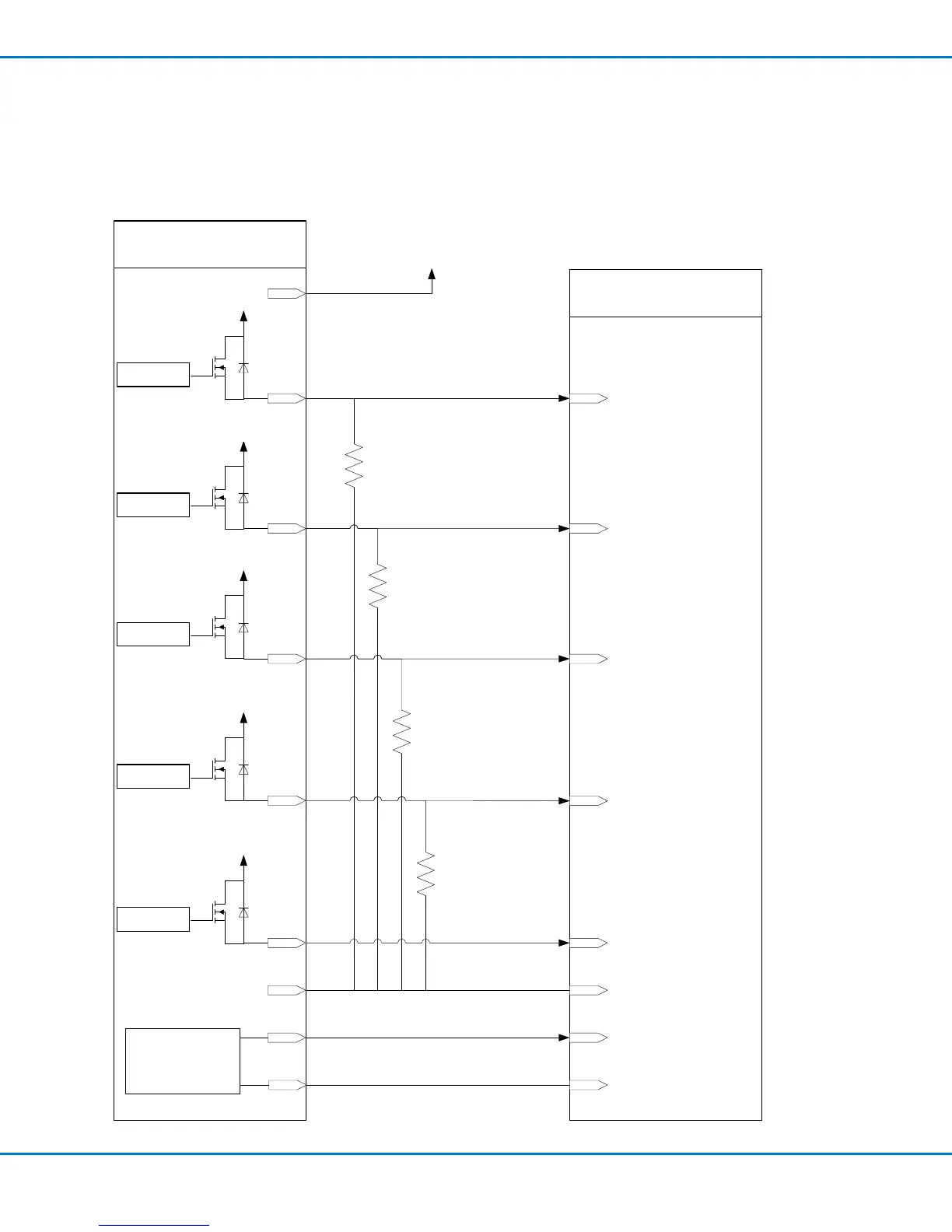

PICO Toμch Controller Outputs
PICO Toµch Controller
Outputs
Process Control,
Robot, PLC, etc.
Control
Control
+24V I/O is provided by the Touch
controller, with a maximum combined
current output of 200 mA.
Temperature
Out
Control
Control
Control
Input
Input
Input
Input
Analog Temperature Out 0–10V
Input
Analog GND
+24V I/O
provided by
the Toµch
controller
Pin numbers correspond to the
numbers on the 15-position
I/O 1 port D-sub.
Analog In
Analog GND
Pin 2 & 10
Analog Gnd
Pin 11
Temp Out
Pin 14
Pulse OK
Pin 13
Error
Pin 9
Stack Over
Temp
Pin 7
Power OK
Pin 5
Temp SPS
Pin 4
GND
Pin 15 +24V IO
+24V IO
+24V IO
+24V IO
+24V IO
+24V IO
GND
+24V
+24V
+24V
+24V
+24V
10K
1/4W 1%
10K
1/4W 1%
10K
1/4W 1%
10K
1/4W 1%
IO GND
