PICO Toµch Controller
14 www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
User Interface
The controller is operated through an easy-to-use touchscreen interface. This section provides an overview of the
user interface and all the controller’s screens and menus.
Navigation and Screen Structure
All system controls are accessed through the icons and buttons on the touchscreen. Each screen includes icons
that allow you to jump quickly to other main screens. Each screen also shows the current LCD display version and
the system UpTime, which is an indicator of how long the controller has been active or operational. The UpTime is
specically used to track when alarm conditions occur in the controller.
Button area
Quick navigation area
for easy access to other
modules / screens
Title bar area shows:
• LCD version
• Module / screen name
• Up Time: How long the controller has
been ON.
Alarm Indication
The title bar blinks red anytime an alarm condition is detected, regardless of the type of alarm. For example, if a
POWER alarm occurs when the VALVE screen is open, the title bar blinks red even though the alarm is not a valve-
related alarm. To view the alarm type, touch the title bar.
Title bar blinks red anytime
an alarm condition is
detected, regardless of the
alarm type. Touch the title bar
to view the alarm.

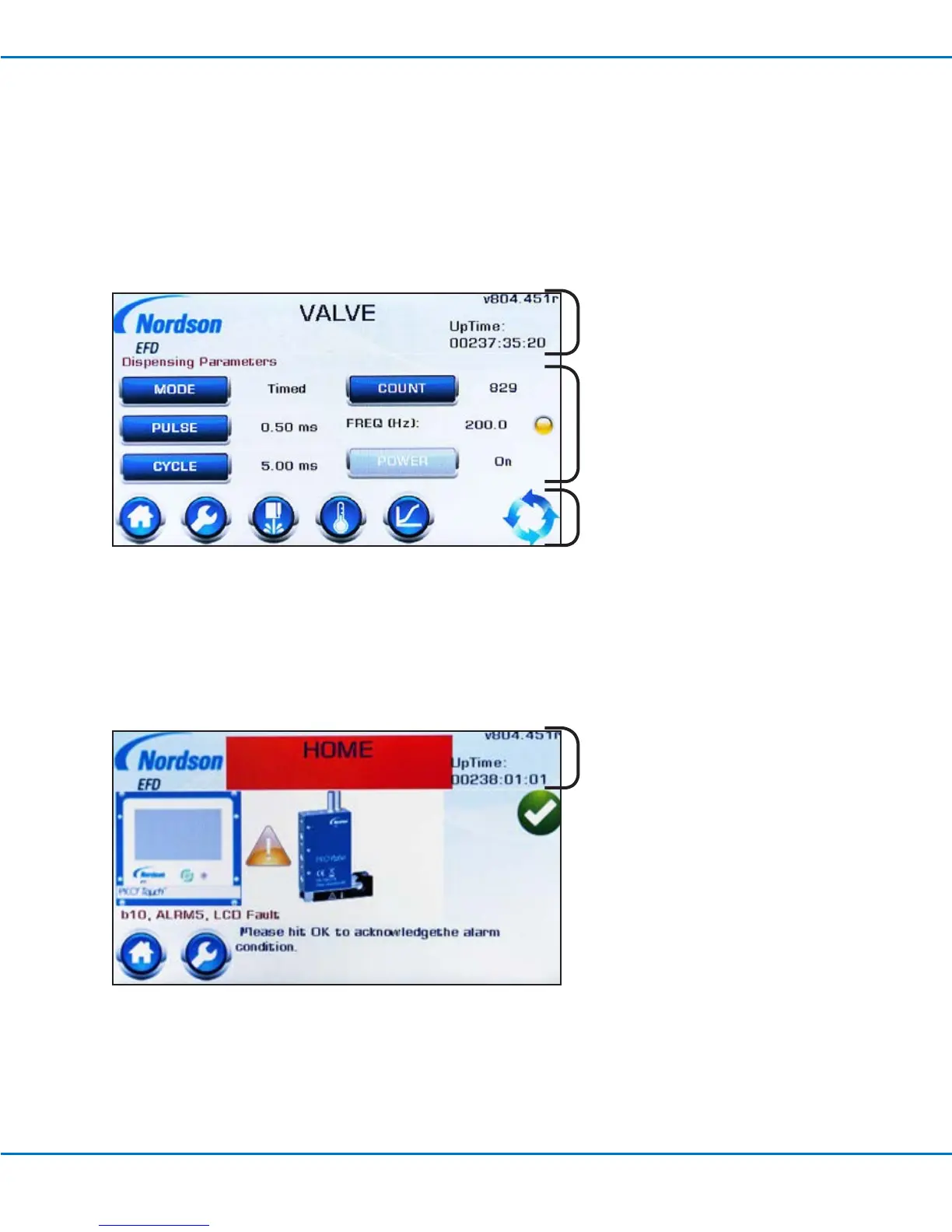

Structure of a Toµch controller screen (VALVE screen shown; LCD version number and UpTime values are only examples)
Example of the alarm screen
