PICO Toµch Controller
33www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
Switching the Heater Control (MODE) to
On, Off, or Remote
Follow this procedure to switch the heater control on or off or to
change the heater mode to remote operation.

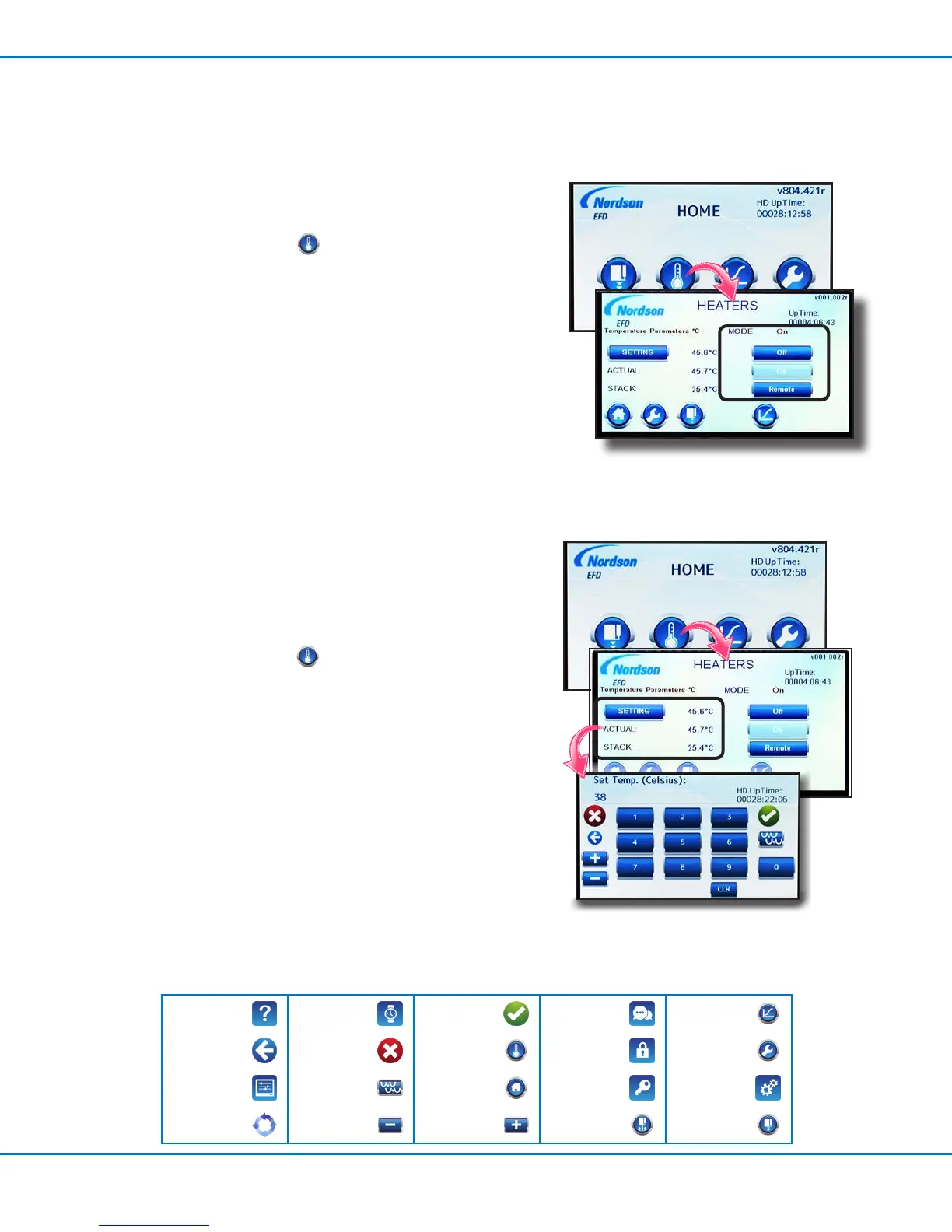

1. Press the HEATERS icon ( ).
2. Press the button for the desired heater mode.
• Off: Heater control switches OFF.
• On: Heater control switches ON.
• Remote: Heater control follows a remote input signal (refer to
"Input / Output Port Pin Descriptions" on page 46 to
connect inputs / outputs).
3. Press HOME to save the setting and return to the HOME screen.
Setup and Programming Procedures (continued)
ABOUT
CALENDAR
CLOCK SET
OK (check) LANGUAGE RAMP
Backspace Cancel HEATERS LOCKOUTS SETTINGS
LCD SETTINGS Decimal Point HOME PASSWORDS SYSTEM
CYCLE Decrement Increment PURGE VALVE
Viewing or Changing the Valve Heater
Temperature / Temperature Setpoint
Follow this procedure to view or change the valve heater setpoint
temperature or to view the actual temperature of the valve heater.
1. Press the HEATERS icon ( ).
2. Press SETTING and enter the desired temperature setpoint on the
numeric keypad.
NOTES:
• The actual temperature of the heater is displayed on the
touchscreen next to ACTUAL.
• To change how temperature units are displayed, refer to "Viewing
or Changing System Settings" on page 35.
3. Press OK (check) > HOME to save the setting and return to the
HOME screen.
To Next Page
