Viewing the Controller and Valve
Information
Firmware resides in three locations in a PICO Toµch system: on the
main circuit board inside the Toµch controller, on the LCD circuit board,
and on a small circuit board inside the Pµlse valve.

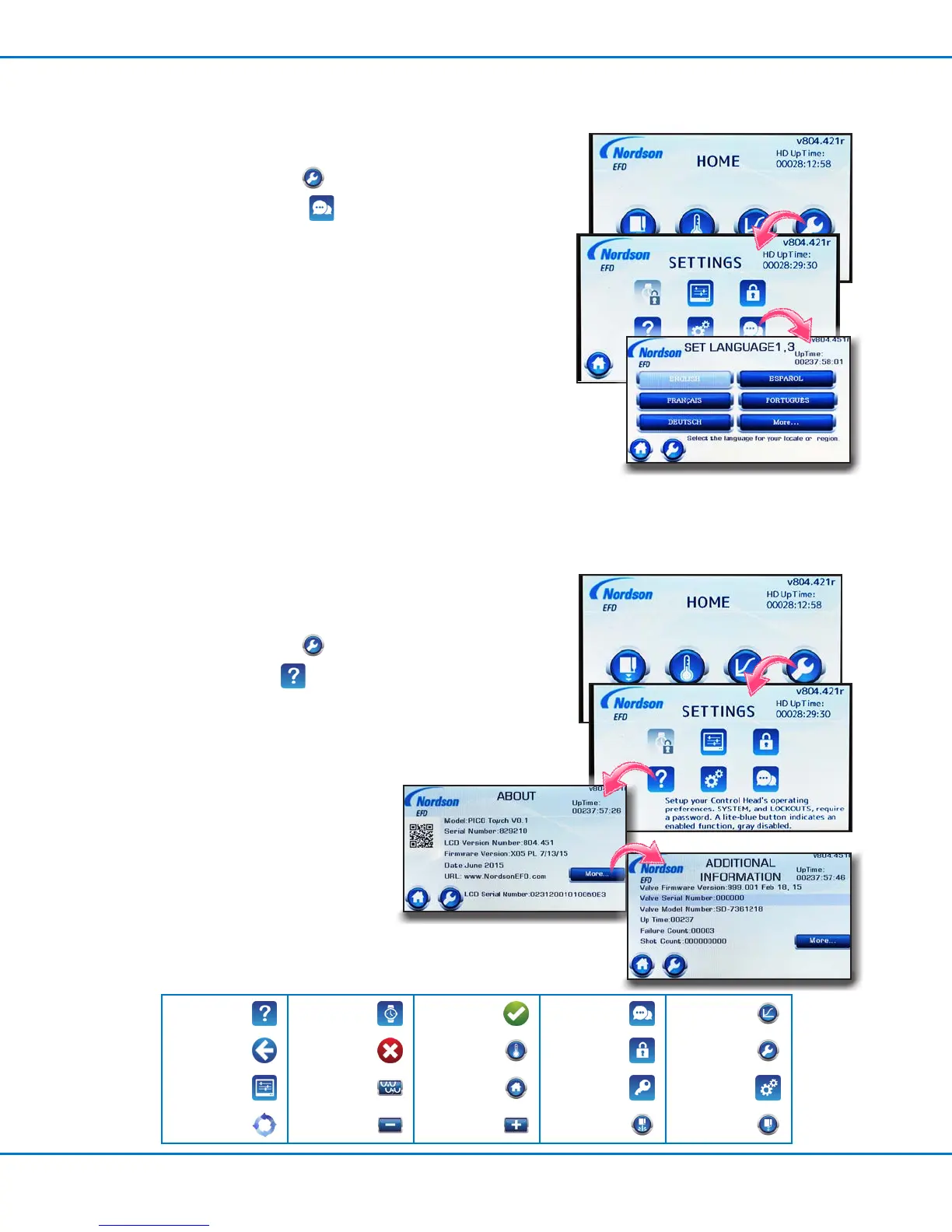

1. Press the SETTINGS icon ( ).
2. Press the ABOUT icon ( ).
3. Press MORE... to see the ADDITIONAL INFORMATION screen.
The ABOUT and ADDITIONAL INFORMATION screens provide the
current system information. Refer to "SETTINGS Screen" on page
23 for additional details on these screens.
Setting the Language
1. Press the SETTINGS icon ( ).
2. Press the LANGUAGE icon ( ).
3. Press MORE... to toggle through the SET LANGUAGE screens.
4. Press the button for the correct language.
5. Press HOME to save the setting and return to the HOME screen.
Setup and Programming Procedures (continued)
ABOUT
CALENDAR
CLOCK SET
OK (check) LANGUAGE RAMP
Backspace Cancel HEATERS LOCKOUTS SETTINGS
LCD SETTINGS Decimal Point HOME PASSWORDS SYSTEM
CYCLE Decrement Increment PURGE VALVE
