Nordson EFD PICO Touch - PICO Touch Controller to PICO Controller 2+2-XCH-V3 Wiring; Interconnecting Temperature and Control Signals; Interconnecting Initiate and Ground Signals

PICO Toµch Controller
52 www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
.
.
.
.
.
.
Wiring Diagrams (continued)

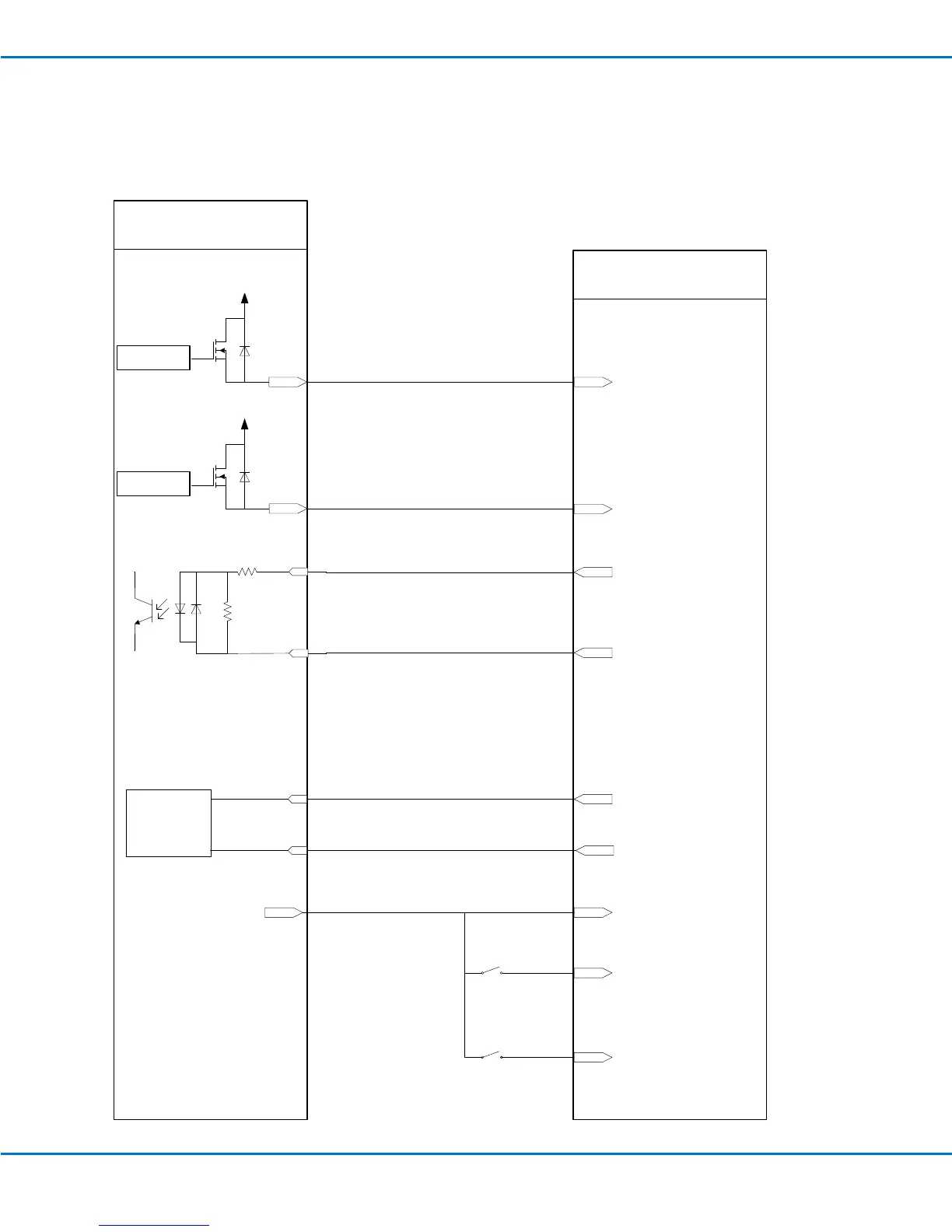

PICO Toμch Controller and PICO Controller 2+2-XCH-V3
PICO Toµch controller
PICO controller
2+2-XCH-V3
Control
Control
Temperature In
+24V I/O is provided by the Touch
controller, with a maximum combined
current output of 200 mA.
Pin numbers correspond to the
numbers on the 15-position
I/O1portD-sub.
Pin 3
Voltage
Initiate
(Uset)
Pin 13
Error
Pin 5
Temp
SPS
Pin 4
GND
Pin 2 & 10
Analog
Gnd
Pin 1
Analog Temp
Out (0–10V)
Pin 15
+24V IO
Pin 16
IN_TEMP_PLC
Pin 17
IN_FAULT_PLC
Pin 24
PULSE_OUT
Pin 2
GND_IO
Pin 23
OUT_ANALOG
Pin 1
GND
Pin 4
24 V_IO
Pin 5
IN 1
Pin 14
IN 10
+24V IO
+24V IO
