System Overview
2-4
Part 1618871−01
2020 Nordson Corporation
Touchscreen Interface
The operator performs all configuration and operation tasks with the
touchscreen interface. The touchscreen provides the operator a graphical
user interface for system configuration, operation, troubleshooting, and
onscreen help support.
NOTE: The operator interface software and operating system should be
completely shut down before turning off controller power.
NOTE: Optional E-stop is available for remote controllers.
1
2

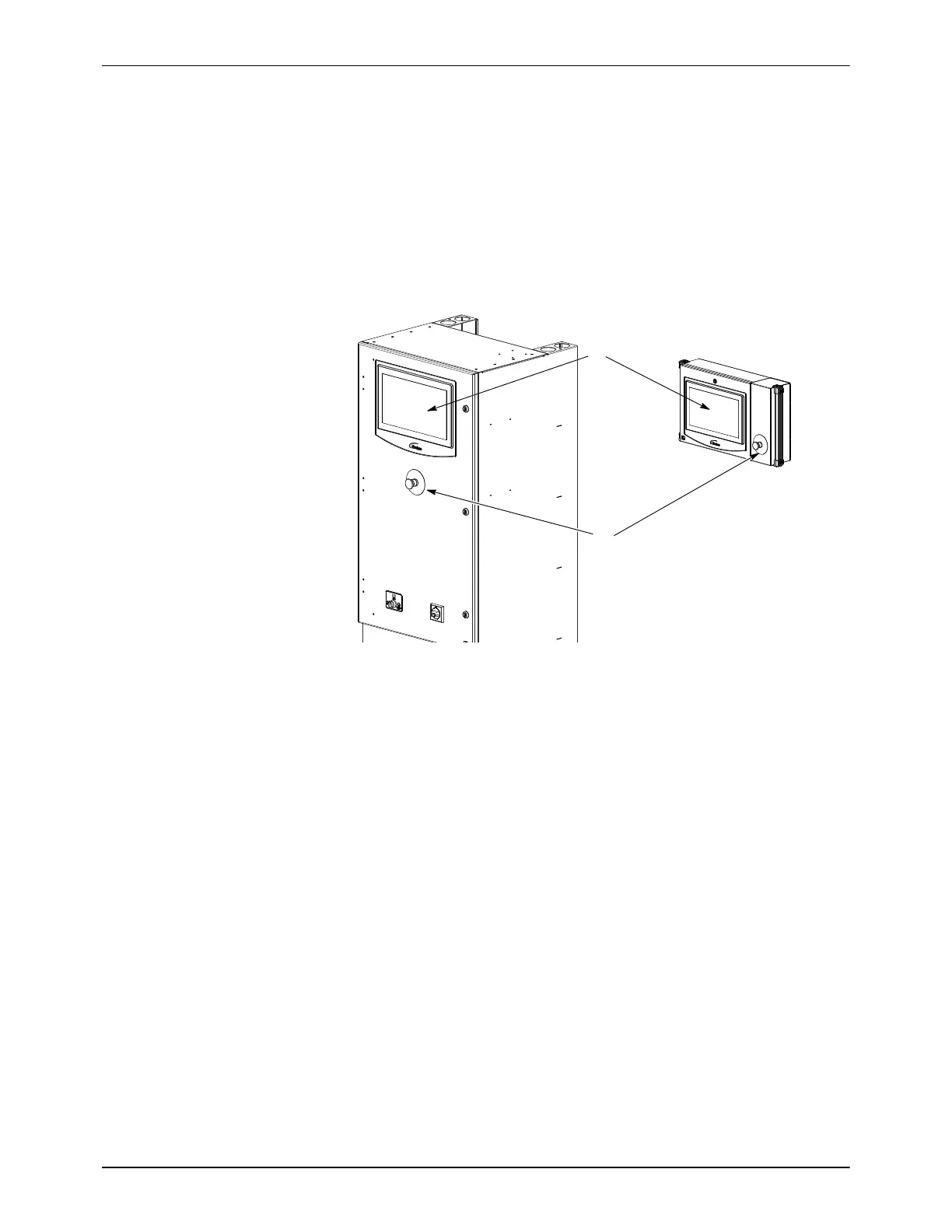

Figure 2-3 Main Controller and Remote Touchscreen
1. Touchscreen 2. E-stop
Interlock Keyswitch Functions
In the Ready position, the spray guns cannot be triggered unless the
conveyor is running. This prevents powder waste and hazardous operating
situations.
In the Bypass position, spray guns can be triggered on and off without
running the conveyor. Use the Bypass position to set up and test spray gun
settings.
In the Lockout position, the spray guns cannot be triggered and the in/out
positioners and reciprocators cannot be moved. Use this position when
working inside the booth.
