Nordson Encore Installation, Troubleshooting, Repair

Parts
6-19
Part 1618871−01
 2020 Nordson Corporation
Dual Manual Spray Gun Interface Kit
DSP_Dual−Man−Gun−Intfc−Kit_1615957
1
2
2
3
3

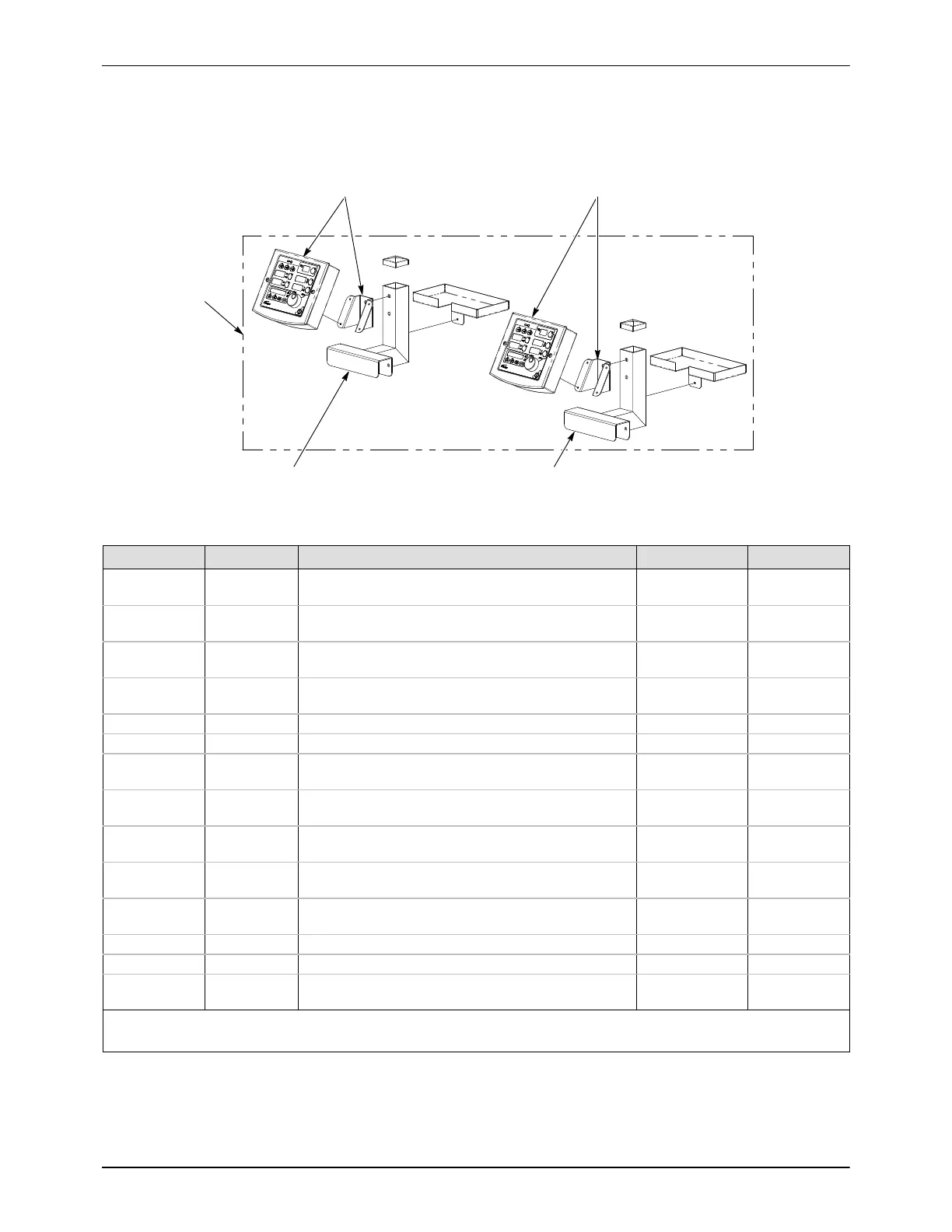

Figure 6-11 Manual Spray Gun Interface Kit (shown with dual manual gun interdace kit)
Item Part Description Quantity Note
1
- - - - - -
KIT, Engage, manual gun interface, dual, Encore
HD
1
2 1614566
 CONTROL UNIT, interface, Encore, Enhance,
packaged
2
3 1082739
 BRACKET, rail mount, controller interface,
Encore
2
NS 1046746
 TEE, DeviceNet

cable, 5 pin,
male/female/female
3
NS 1046749
 RESISTOR, teminator, device, mini, ¼ W
1
NS 1080718
 CABLE, interface/controller, 10 ft
3
NS 1046707
 CABLE, DeviceNet trunk, 5 pin mini, 300 V,
12 M
1
1
- - - - - -
KIT, Engage, manual gun interface, quad, Encore
HD
1
2 1614566
 CONTROL UNIT, interface, Encore, Enhance,
packaged
4
3 1082739
 BRACKET, rail mount, controller interface,
Encore
4
NS 1046746
 TEE, DeviceNet

cable, 5 pin,
male/female/female
5
NS 1046749
 RESISTOR, teminator, device, mini, ¼ W
1
NS 1080718
 CABLE, interface/controller, 10 ft
6
NS 1046707
 CABLE, DeviceNet trunk, 5 pin mini, 300 V,
12 M
2
AR: As Required
NS: Not Shown
