Installation
3-7
Part 1618871−01
2020 Nordson Corporation
CAN Network Connections and Settings
Engage communicates with the manual spray gun controllers and pump
control cards through a CAN network. See Figure 3-4 for connections
shown with auxiliary cabinet and 28 automatic spray guns and 4 manual
spray guns. Make sure each cable shield is connected on one end only.
NOTE: Terminating resistors must be installed for dust tight connections.
Field Connections
Flow
1
Flow
2
Flow
3
Flow
4
Flow
5
Flow
6
Flow
7
Flow
8
Flow
9
Flow
10
Flow
11
Flow
12
Flow
13
Flow
14
Manual
1
Manual
2
MGI
4
MGI
3
MGI
2
MGI
1
Backplane
Auxiliary
T
CAN
C
CAN
B
CAN
A
CAN
C
CAN
B
CAN
A
PLC
T
Backplane
Main
Cap
T
Terminations

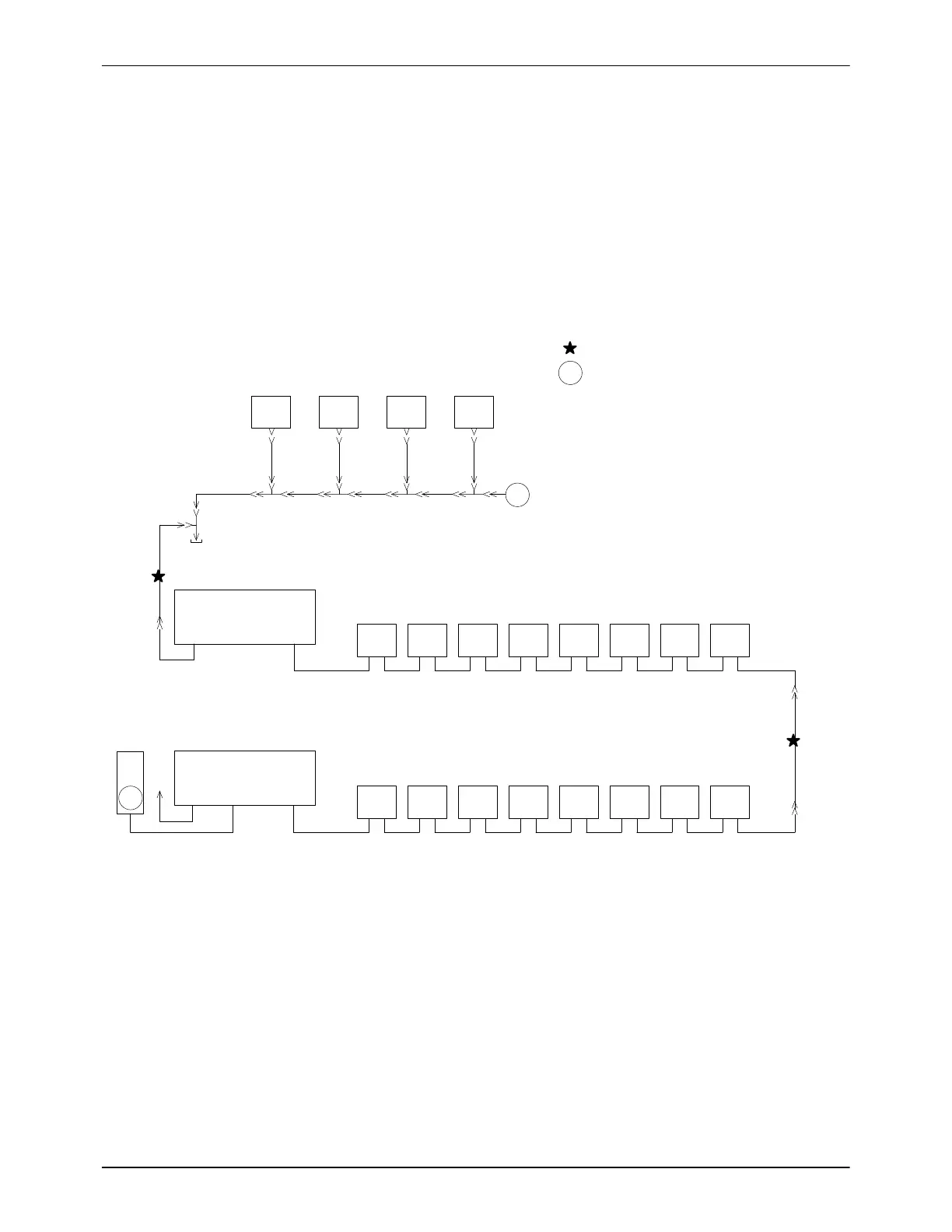

Figure 3-4 CAN Network Cable Connections
To Next Page
