Fulfill
Retrofit for Mesa Melters
16
Part 1121938_02
2013 Nordson Corporation
Electrical Components
NOTE: Refer to Appendix A, Retrofit Refill System With Nordson Level Sensor, for updated
information.
(6). Control Box
The control box contains the membrane panel and PCA. It connects to the
melter via the supplied bracket. An optional remote mount kit is available to
mount the control box away from the melter.
Membrane Panel
The front panel of the electrical control box shown in Figure 4 contains three
LEDs that have different colored lights to indicate the unit condition:
Enable LED (green light) - Indicates that the system is enabled.
Pressing the Enable button will toggle the indicator.
Enable button - Press the enable button to turn the fill system on or
off.
Adhesive transfer LED (blue light) - Indicates adhesive delivery is
active. When a low level is detected, the indicator notes that
adhesive is being transferred from the adhesive storage bin into the
melter tank through the transfer hose.
Fault LED (red light) - activates if the system exceeds the user
defined fill time limit. The system will not resume operation until the
fault is cleared with the clear fault button.
Clear fault button - Press the clear fault button to reset fault and
resume normal activity.
1
2
3
4

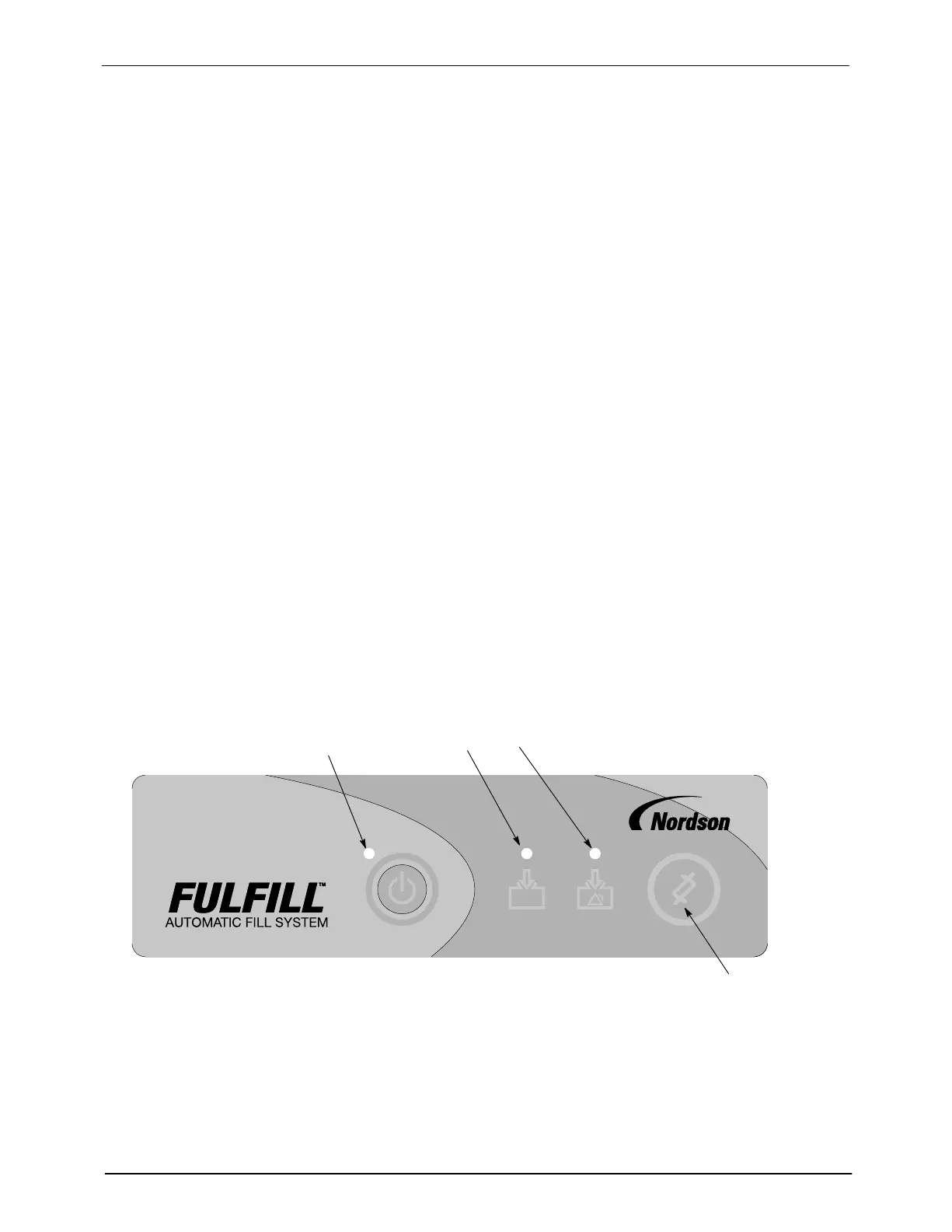

Figure 4 Fill system controls and indicators
1. Enable On/Off
2. Filling activated symbol and blue LED
3. Fault symbol and red LED
4. Clear fault
