Fulfill
Retrofit for Mesa Melters
28
Part 1121938_02
2013 Nordson Corporation
Operation
NOTE: Refer to Appendix A, Retrofit Refill System With Nordson Level Sensor, for updated
information.
Once enabled, the fill system immediately begins operation. Maintain
adhesive level in the storage bin to maintain automatic operation.
NOTE: During warm‐up, the melter's ready-delay time may need to be
increased for the Fulfill to operate properly. The proper ready-delay time
depends on the tank size and shape, adhesive type, and application
temperature.
Time Settings
See Figure 15. There are three timers found on the PCA board in the control
box:
Fault - The overfill timer. A fault is generated if the Fulfill unit dispenses
longer than the time allotted. Time range is 5 to 115 seconds.
Delay - The time duration the Fulfill unit waits to transfer adhesive from
the storage bin to the melter once a signal from the level sensor has been
transmitted to the control box. Time range is 1 to 119 seconds.
Air - Used only with the optional vibrator kit. The air timer signals the
amount of time the vibrator actuates once the filling process begins.
Time range is 0 to 20 seconds.

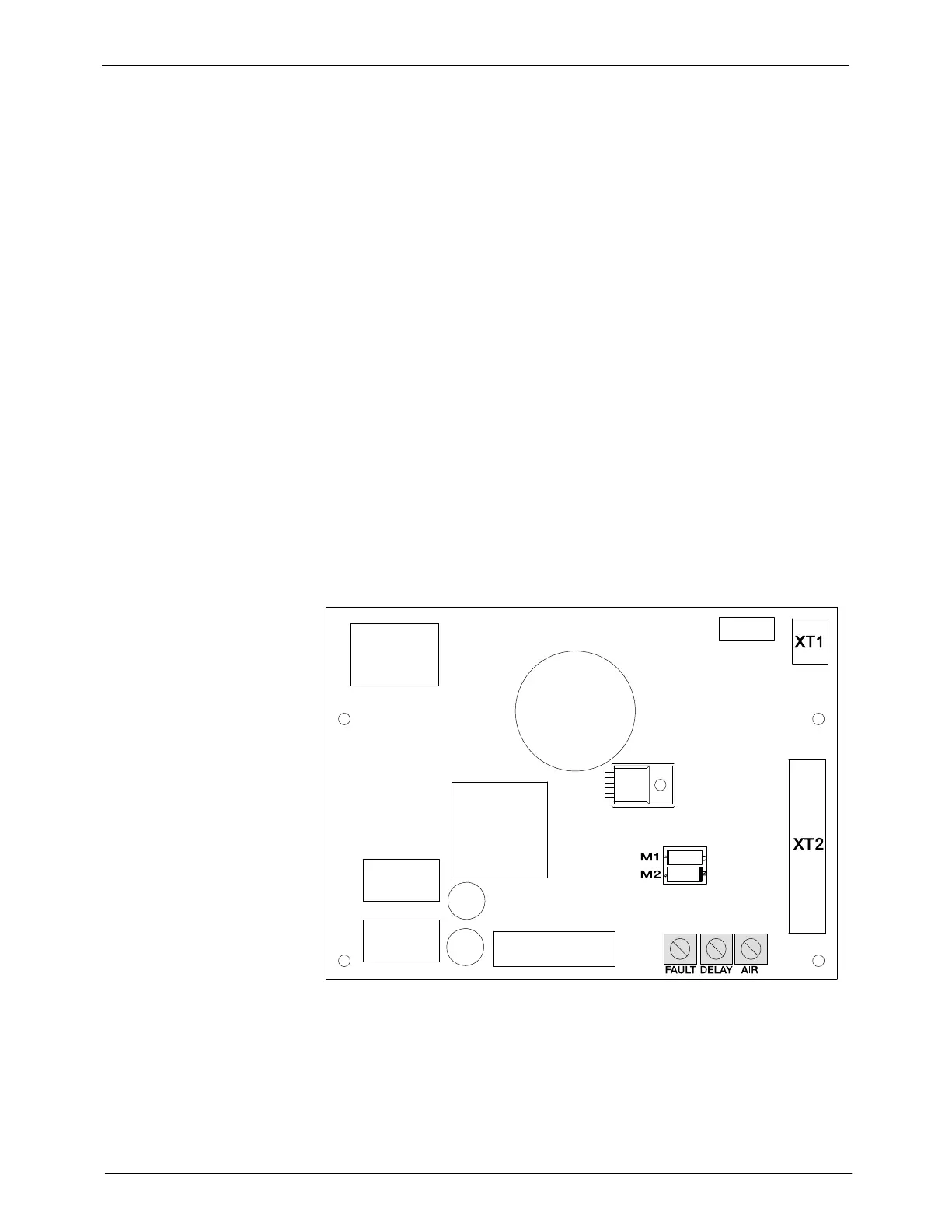

Figure 15 PCA timer settings (located inside the control box)
Use a flat head screwdriver to turn the timers clockwise to increase the time
settings, counterclockwise to decrease the timer settings.
