Nordson Mesa Fulfill User Manual

Fulfill

Retrofit for Mesa Melters
20
Part 1121938_02
 2013 Nordson Corporation
Prepare the Melter (contd)

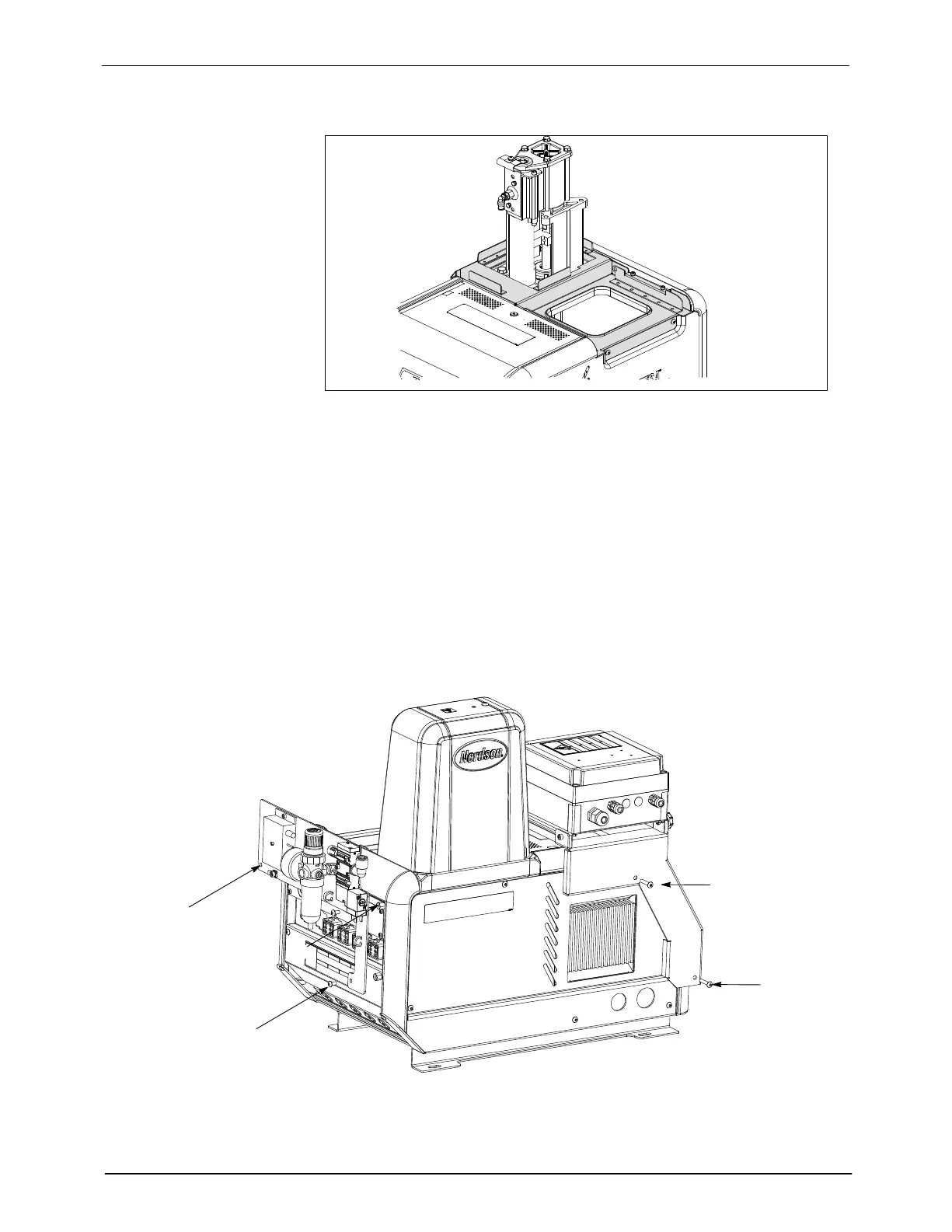

Figure 7 Remove the tank lid
Install the Control Box
1. See Figure 8. Remove the three screws (1) from the left side panel and
the two screws (2) from the back panel.
2. Place the standoffs provided into the screw holes in the rear panel of the
Mesa melter. Secure the pneumatic and control assembly bracket onto
the melter (1). Replace the screws previously removed into the
standoffs.
3. Place the control box with bracket onto the melter at the left panel with
the two M5 x 25 screws provided in the ship with kit.
4. Anchor the solenoid cable to the left side of the melter with the wire tie
and anchor provided.
1
2
2
1
1
Figure 8 Install the Fulfill control box onto the melter
