Fulfill
Retrofit for Mesa Melters
19
Part 1121938_02
2013 Nordson Corporation
Installation
WARNING! Allow only personnel with appropriate training and experience to
operate or service the equipment. The use of untrained or inexperienced
personnel to operate or service the equipment can result in injury, including
death, to themselves and others, and damage to the equipment.
Prepare the Melter
1. Operate the melter until the tank is empty.
2. De‐energize the system as directed in the Maintenance section of the
Mesa manual.
3. Remove the right side panel from the Mesa melter. Set the screws aside
for reassembly.
4. Remove the pump cover.
5. See Figure 6. Remove the existing tank lid by inserting a small flat‐tip
screwdriver in the gap between the lid and the melter frame, pressing in
on the end of the spring‐loaded lid hinge rod to release the rod from the
pivot point, and then lifting the lid out.

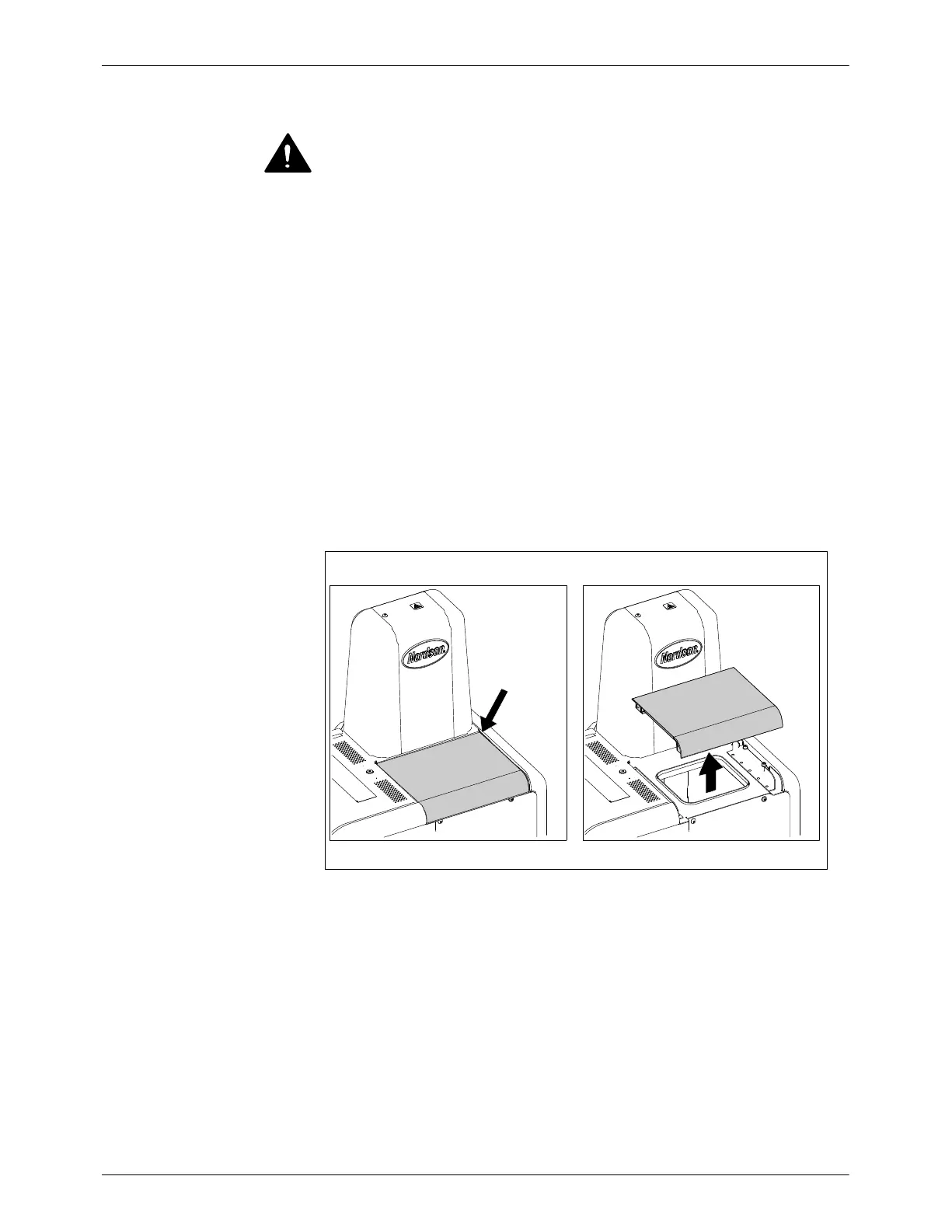

Figure 6 Remove the existing tank lid
CAUTION! Remove dirt and debris from the melter before proceeding with
these procedures.
6. See Figure 7. Remove the five screws that secure the pump/lid support
bracket, and then remove the bracket. Set the screws aside for
reassembly.
