Chapter 39 Hardware procedures 249

Multiservice Switch 7400 Hardware Installation, Maintenance, and Upgrade 6.1S2

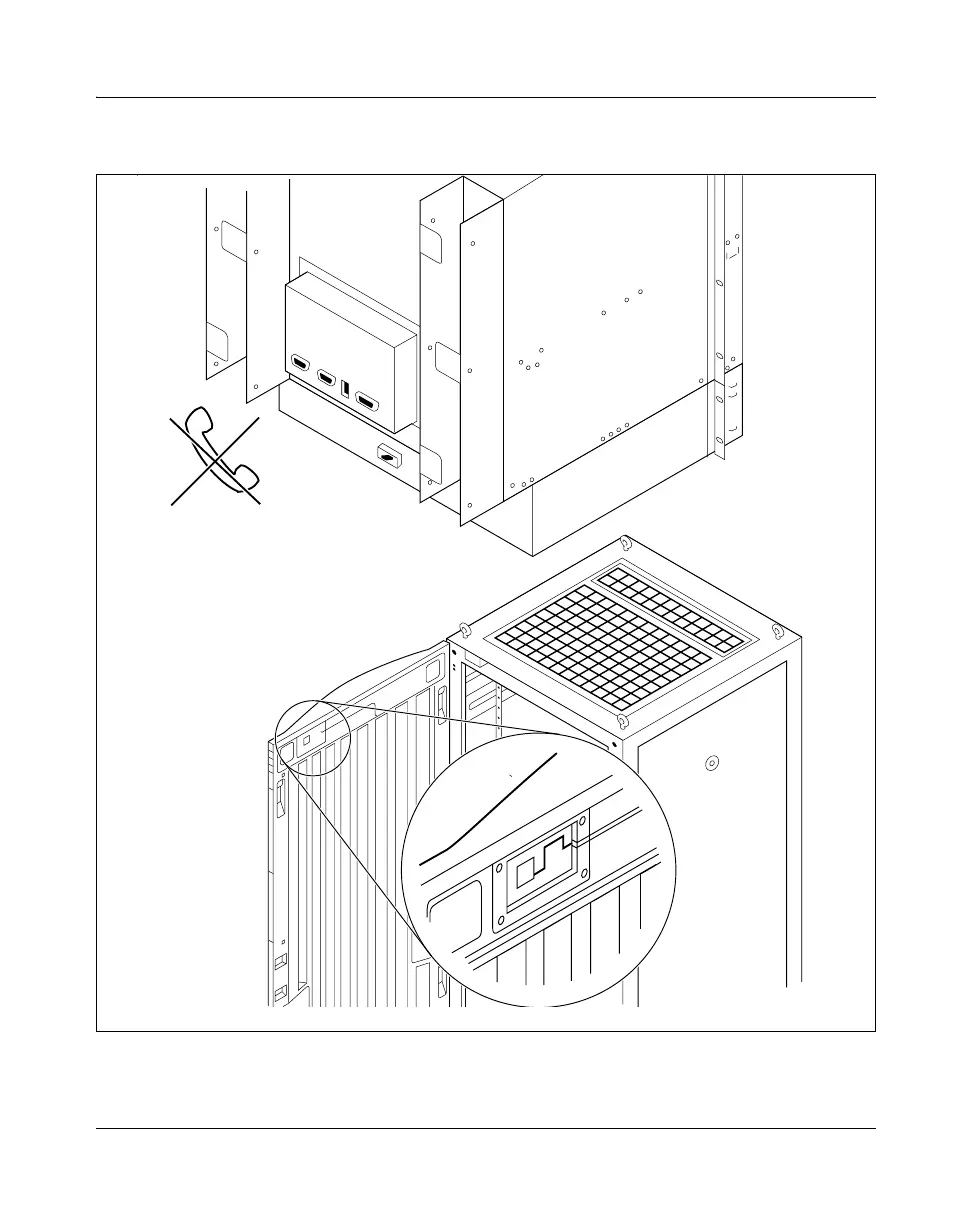

Figure 78

Door alarm connectors for a Multiservice Switch 7480

Do not use door alarm connectors for telephones.

Front door

PPT 0884 001 AA
