Chapter 39 Hardware procedures 385

Multiservice Switch 7400 Hardware Installation, Maintenance, and Upgrade 6.1S2

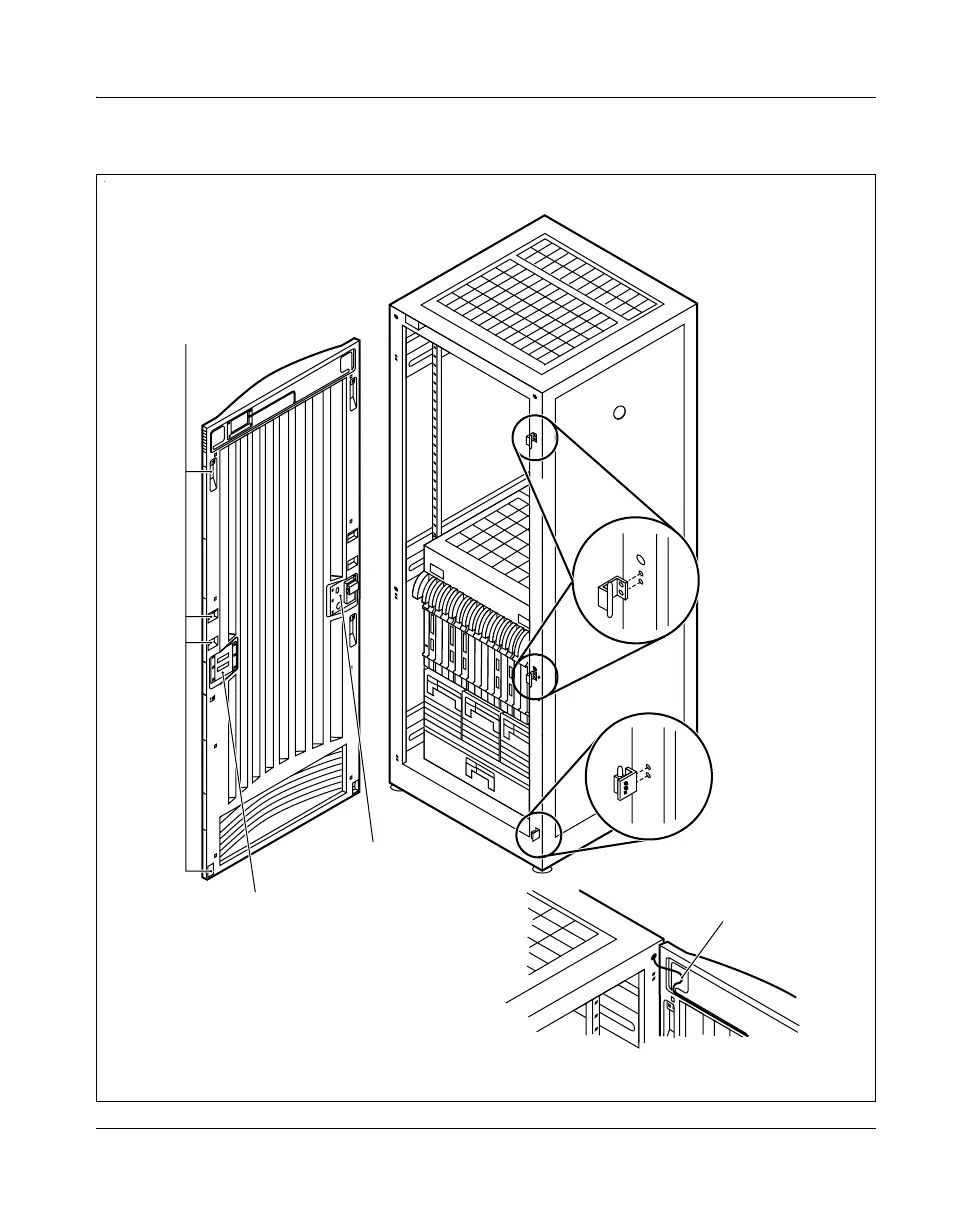

Figure 142

Cabinet door with hinges on the right

PPT 1045 001 AA

Door latch

Door alarm

indicator cable

Lower hinge

Hinge supporting

plates

Top and

centre hinges

Blank door latch
