Installation guidelines
AN2016 Cabinet User Guide Rel 1.0 Standard May 1999
Procedure 3-13 (continued)
Installing batteries
Step Action
10
Install the batteries into the external vault according to local practices and
battery manufacturer’s recommendations.
—end—

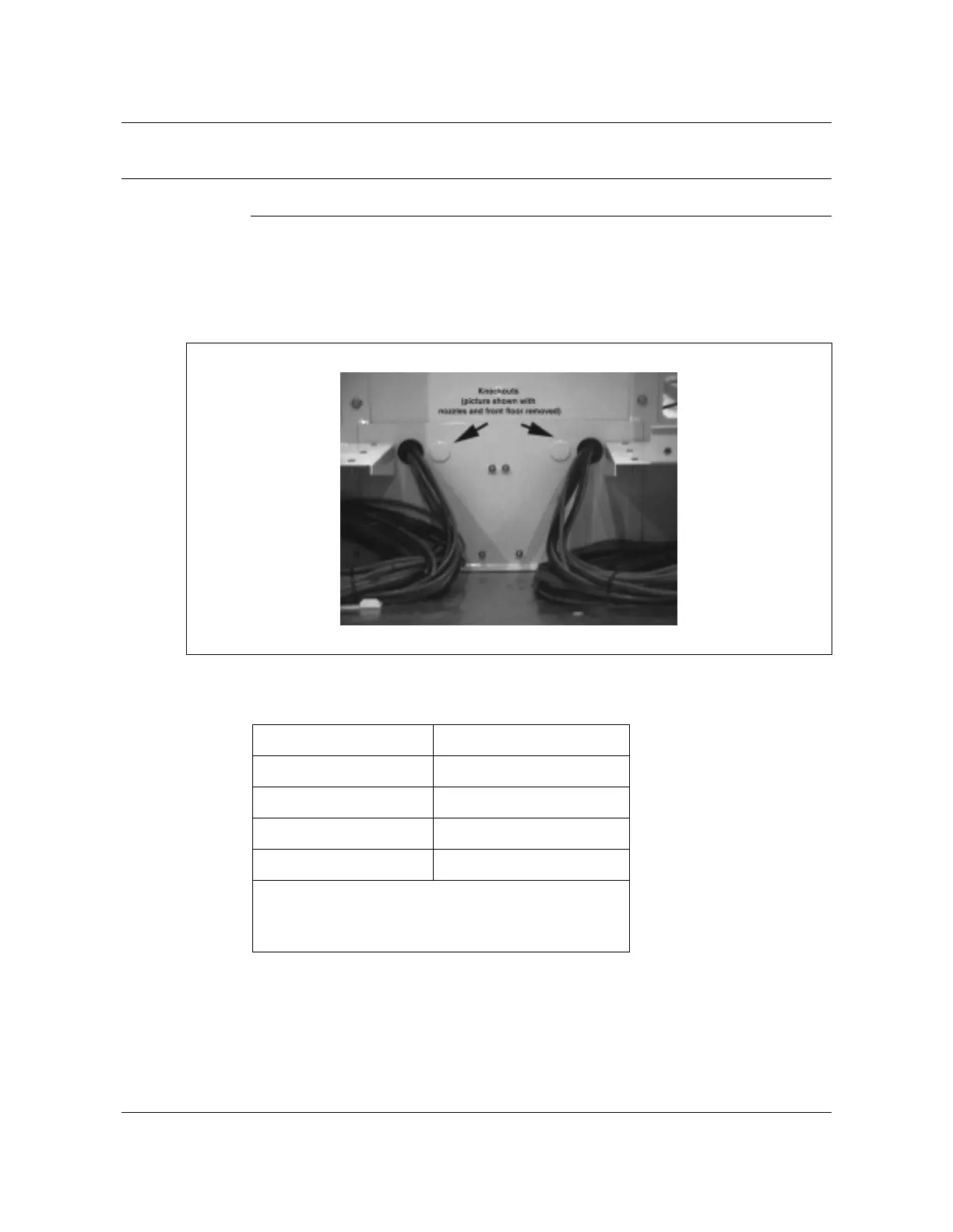

Figure 3-27
Knock out for external battery vault
AN0084.tif
Table 3-4
Battery cable length for each string in the cabinet
Battery string Length
1 and 5 76 in.
2 and 6 88 in.
3 and 7 106 in.
4 and 8 124 in.
Note 1:
You must provide the Anderson connector.
Note 2:
You must determine the cable length from the
external vault to the cabinet.
