3-4
Installation guidelines
AN2016 Cabinet User Guide Rel 1.0 Standard May 1999
Procedure 3-3
Preparing a concrete mounting pad for the cabinet
Use this procedure to prepare a concrete mounting pad.
Place the AN2016 Cabinet on a concrete pad, which is either poured in place
or precast. Install a power transfer pedestal on the mounting pad or mounted
on a pole near the cabinet. Figure 3-1 shows the general position of the
AN2016 cabinet and power transfer pedestal on the concrete pad.

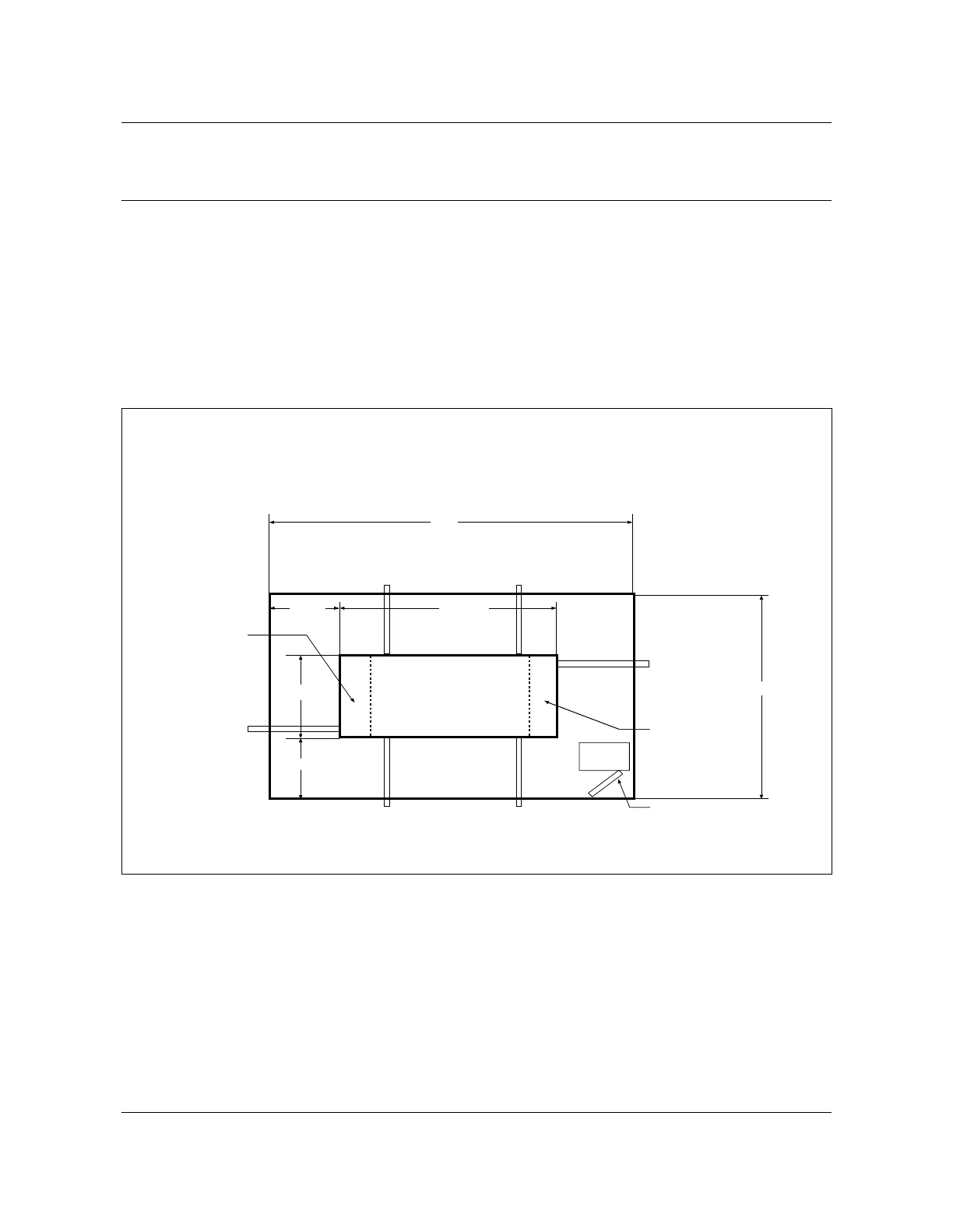

Figure 3-1
Concrete mounting pad with optional power transfer pedestal
AN0032.tif
—continued—
29.90"
30.0"
AN 2016
AC compartment
Termination
compartment
Power pedestal
106"
112.19 "
46.0 "
172"
