Equipment
2-25
User Guide Rel 1.0 Standard May 1999

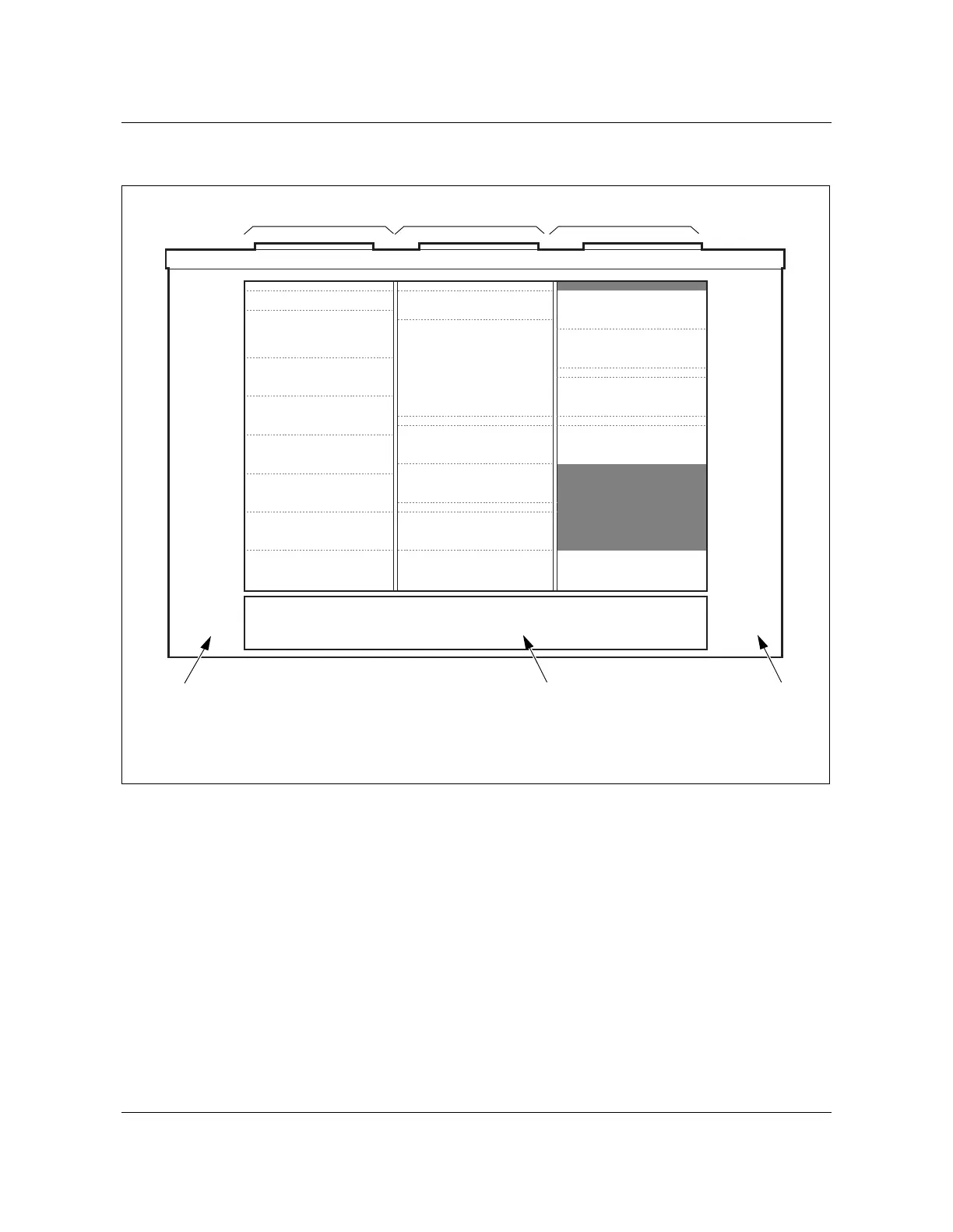

Figure 2-16
864-line configuration (rear view)
AN0056.eps
1344-line AccessNode system
This configuration consists of 1344-line AccessNode system. Two ABM
shelves are required to support the system capacity. The AccessNode system
is equipped with 14 copper-distribution shelves that provide up to 96 lines
each.
The extended system configuration is equipped with a DSX-1 cross-connect
shelf to feed DS-1 lines from the primary ABM shelf to the second ABM shelf.
The 1–1344 VF lines are routed from the system out to the surge protection
center (SPC).You can splice the VF lines directly into the outside plant (OSP)
cables.
See Figure 2-17 and Figure 2-18 for a view of the equipment frame/bay layout.
LCAP
BIP
ABM 1
Fan shelf
CDS 1 (1)
CDS 2 (1)
Shelf spacer
CDS 3 (1)
Heat exchanger plenumHeat exchanger plenum
RMU
Fiber manager
Helios 200 CTRL
Rectifier shelf 1
Rectifier shelf 2
DSX 1
DSX 2
Loop extender
or DDM+
CDS 4 (1)
CDS 5 (1)
Fan shelf
CDS 6 (1)
Shelf spacer
CDS 7 (1)
Rear of cabinet
Air gap
Frame/bay D Frame/bay F Frame/bay E
AC compartment SPC compartment Battery compartment
Heat exchanger
plenum ECU
Future expansion
