Equipment
2-15
User Guide Rel 1.0 Standard May 1999

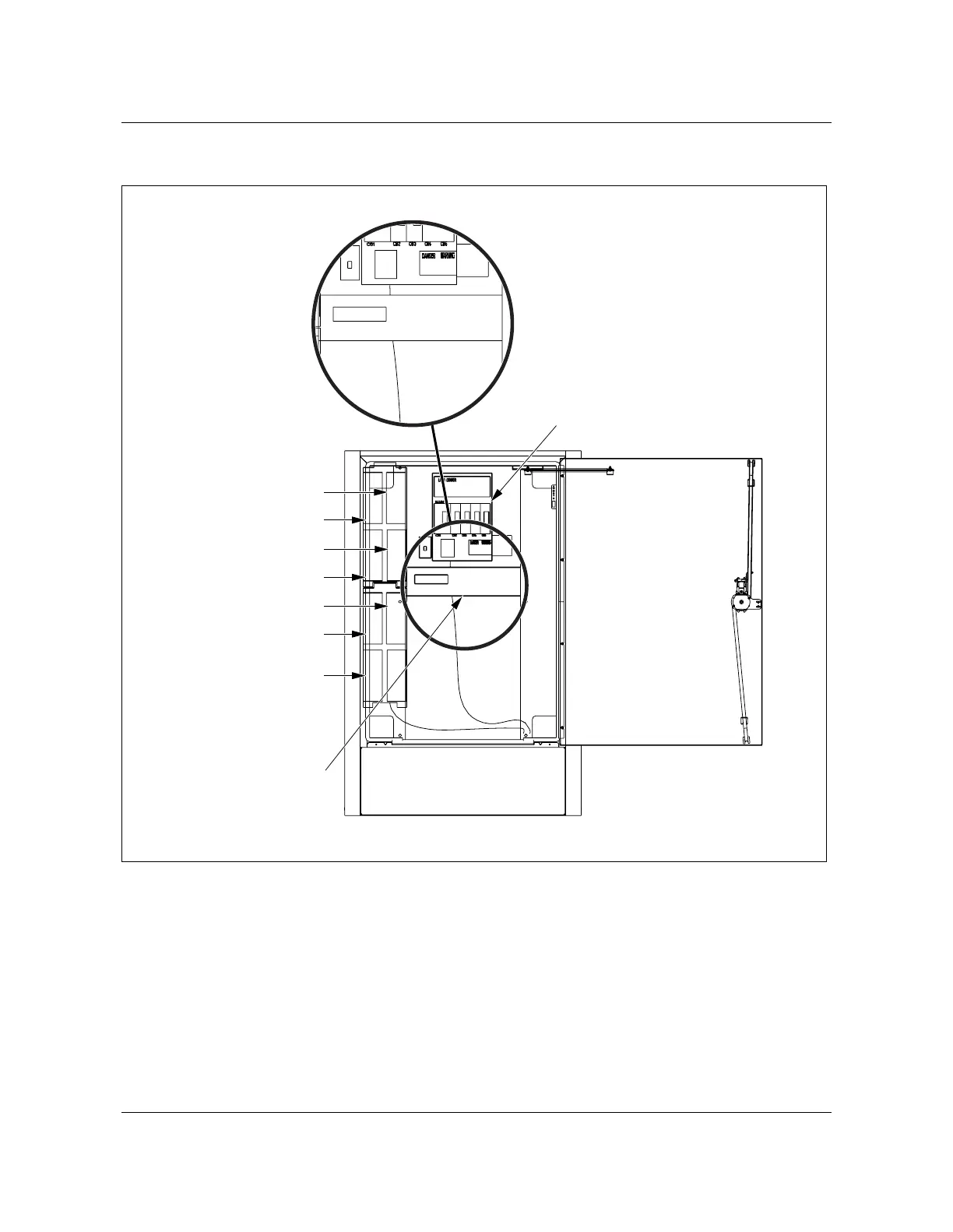

Figure 2-9
AC compartment
AN0036
Optical fiber cable entrance
Optical fibers are brought directly into the equipment compartment for
termination at a rack mounted fiber distribution panel. The fibers enter the AC
compartment in a flexible conduit.
The fibers are routed to the equipment compartment through a small opening
in the AC compartment, above the ground bar (see Figure 2-11). The fibers
enter the equipment compartment and follow the upright to the fiber
distribution panel (see Figure 2-12).
VF SPC
1501-1600
VF SPC
1401-1500
VF SPC
1701-1800
VF SPC
1601-1700
VF SPC
1901-2000
VF SPC
1801-1900
VF SPC
2001-2100
Battery distribution panel
(battery strings 1 to 8)
Battery distribution panel
AC load
center
Right side view of cabinet
CB1 CB2 CB3 CB4 CB5 CB6 CB7 CB8
30A 30A 30A 30A 30A 30A 30A 30A
