Nortel AccessNode 2016 - 2016-Line Accessnode System

Equipment
2-27
User Guide Rel 1.0 Standard May 1999

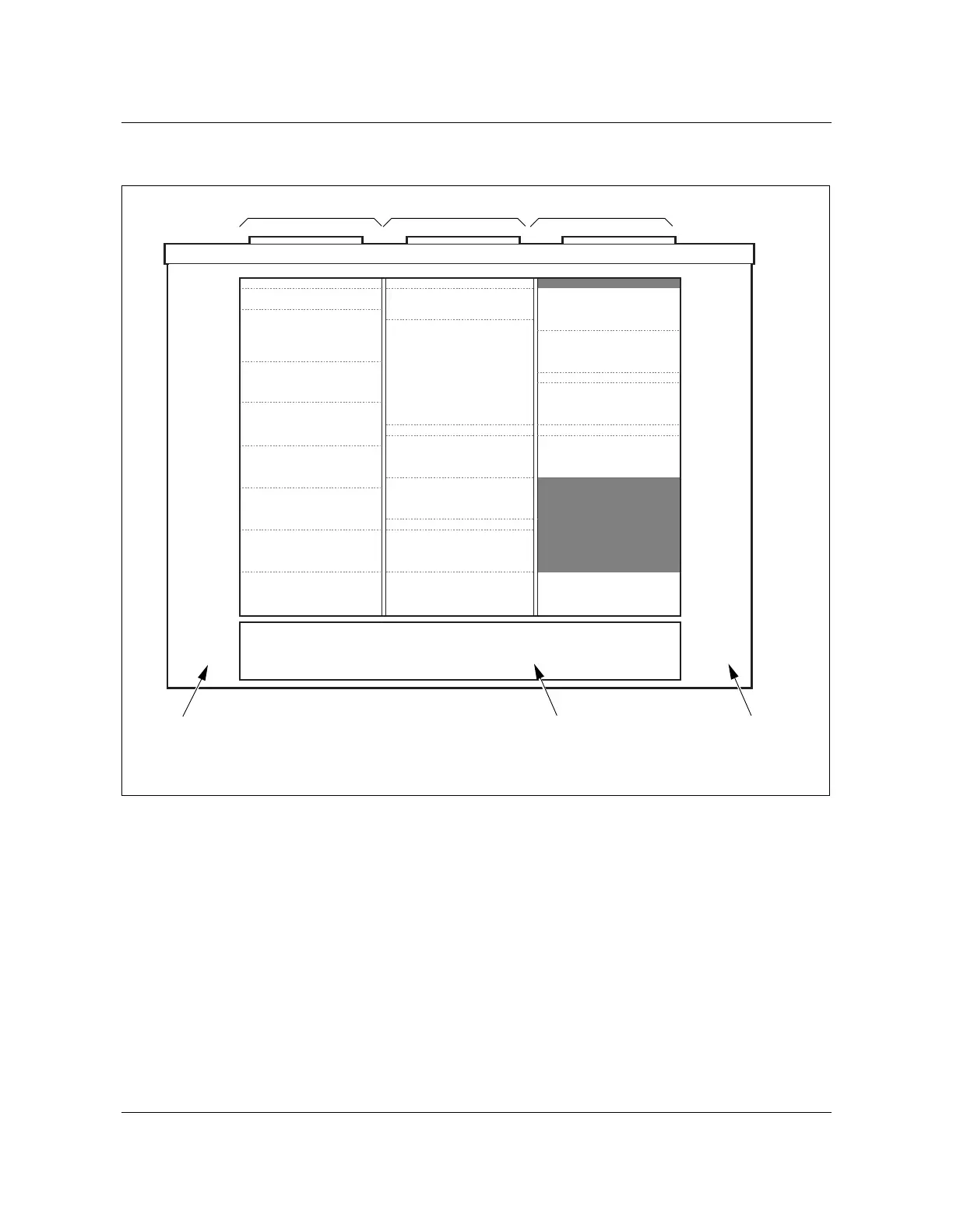

Figure 2-18
1344-line configuration (rear view)
AN0054.eps
2016-line AccessNode system
This configuration consists of 2016-line AccessNode system. Three ABM
shelves are required to support the system capacity. The AccessNode system
is equipped with 21 copper-distribution shelves that provide up to 96 lines
each.
The extended system configuration is equipped with a DSX-1 cross-connect
shelf to feed DS-1 lines from the primary ABM shelf to the second ABM shelf
and to the third ABM shelf.
The 1–2016 VF lines are routed from the system out to the surge protection
center (SPC). You can splice the VF lines directly into the outside plant (OSP)
cables.
LCAP
BIP
ABM 1
Fan shelf
CDS 1 (1)
CDS 2 (1)
Shelf spacer
CDS 3 (1)
RMU
Fiber manager
Helios 200 CTRL
Rectifier shelf 1
Rectifier shelf 2
DSX 1
DSX 2
Loop extender
or DDM+
CDS 4 (1)
CDS 5 (1)
Fan shelf
CDS 6 (1)
Shelf spacer
CDS 7 (1)
Future expansion
Heat exchanger plenum
Rear of cabinet
Air gap
Frame/bay D Frame/bay F Frame/bay E
AC compartment SPC compartment Battery compartment
Heat exchanger
plenum ECU
Heat exchanger plenum
