2-42
Equipment
AN2016 Cabinet User Guide Rel 1.0 Standard May 1999
NT6C28FB-61 dc distribution shelf
The NT6C28FB-61 dc distribution shelf serves as a dc power distribution point
for the rectifiers and batteries in the AN2016 equipment. Figure 2-29 provides
circuit breaker and fuse assignments.
Functional features of the NT6C28FB-61 include:
• two 50 A circuit breakers to protect the power output to the ECU
• twelve 30 A circuit breakers to protect the power output to the BIP for the
AccessNode equipment load
• two 15 A circuit breaker designated as spare for optional equipment
DDM+ or Soneplex loop extender
• three 2 A GMT fuse designated for DSX cross-connect and optional RMU
unit

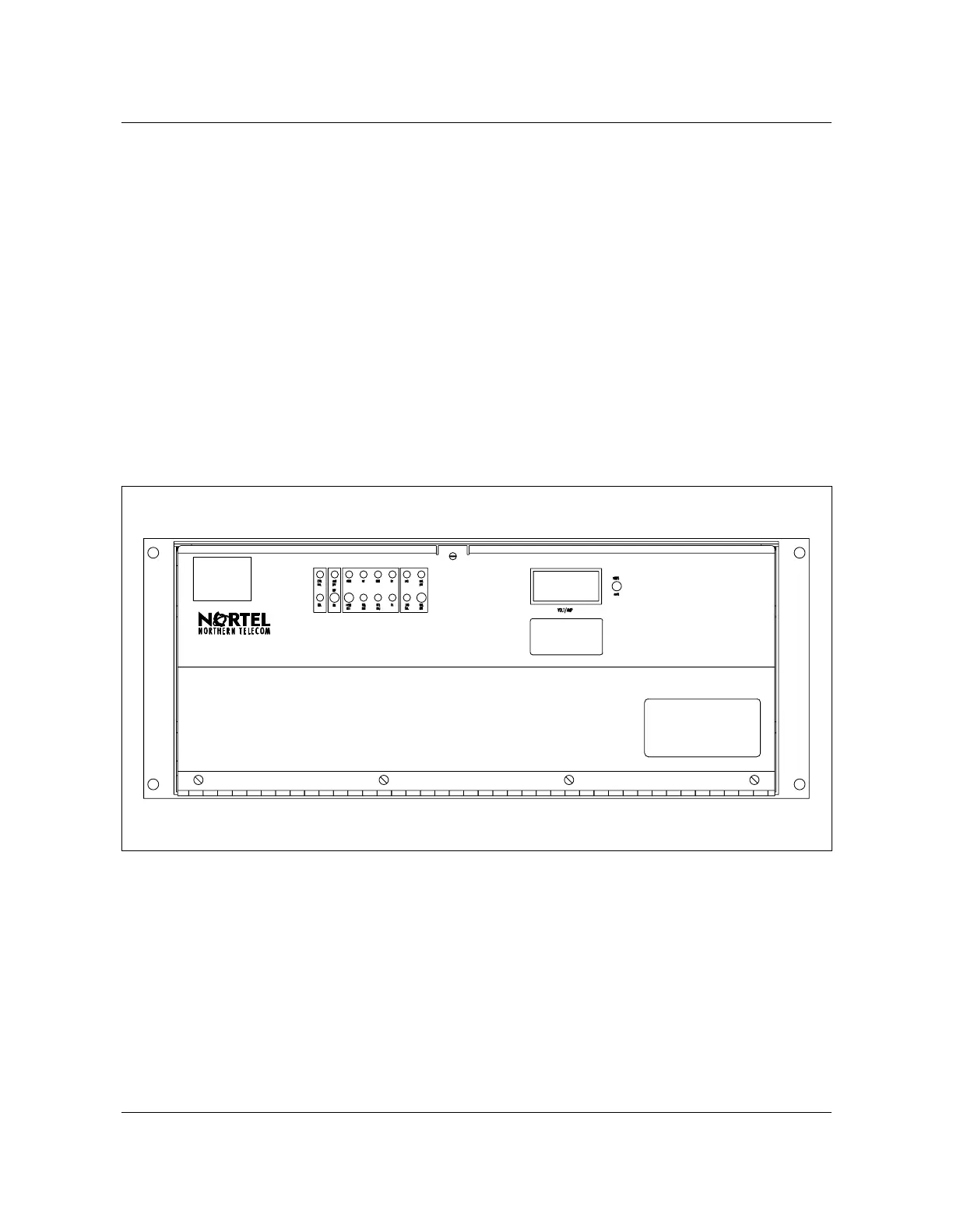

Figure 2-28
NT6C28FB-61 dc distribution shelf
AN0077.eps
