Notifier UDACT

Wiring
110
UDACT Instruction Manual PN 50050:H 09/16/2002

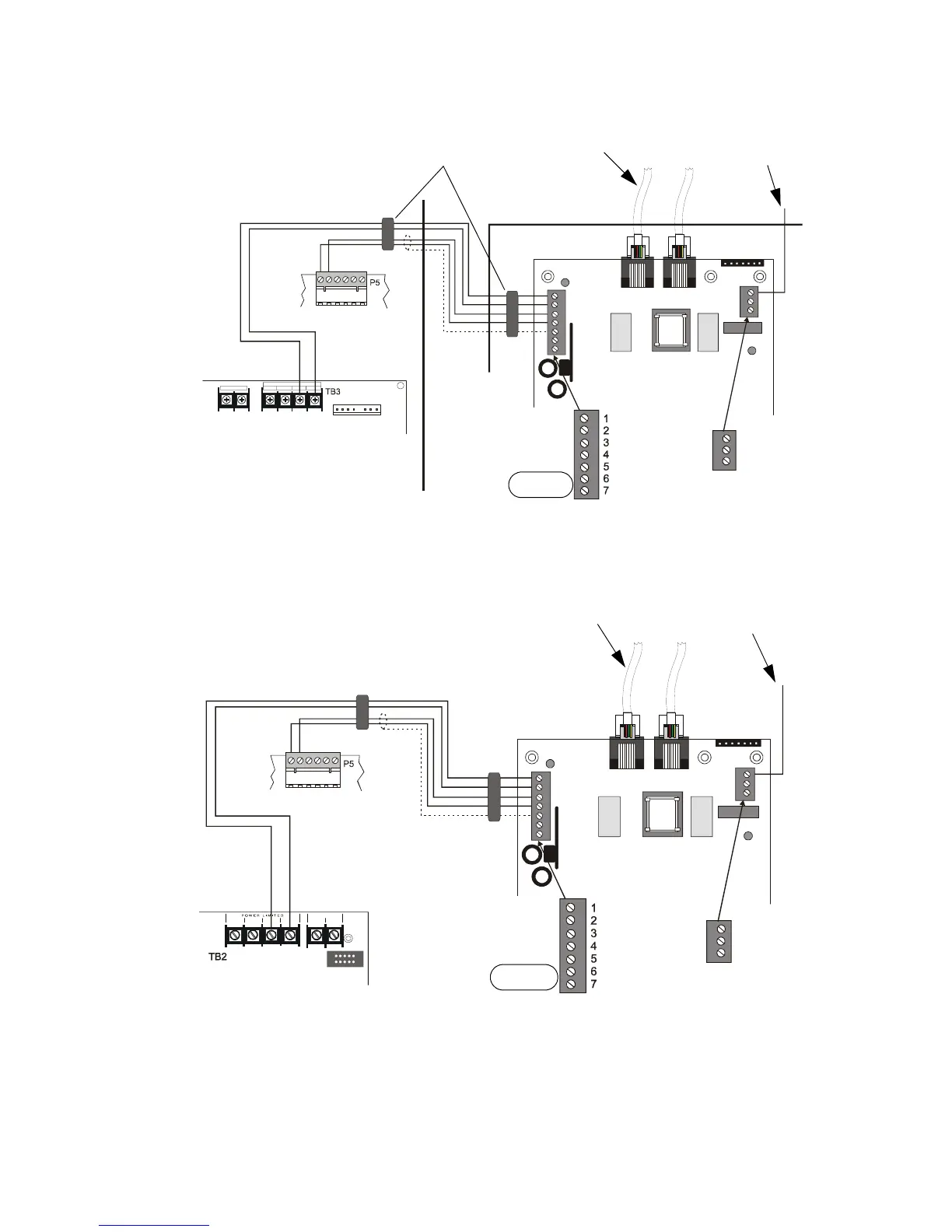

Below is a remote installation of a UDACT with an AM2020/AFP1010 using an MPS-24A main power
supply:
Figure 29 UDACT and AM2020/AFP1010 with MPS-24A
Below is an internal installation of a UDACT with an AM2020/AFP1010 using an MPS-24B main
power supply:
Figure 30 UDACT and AM2020/AFP1010 with MPS-24B
EARTH
Comm FAILURE
+24V
+24V
GND
RS+
RS–
SHIELD
RS+
Rs–
ACS/TERM
TERM
+24R COMMO N + 24 COMMON
POWER LIMI TED
BAT + B AT -
To Phone Lines
(supervised)
Solid Earth
Ground
Connection
MPS-24A
SIB-2048
EIA-485
Interface
DO NOT USE
UDACT-15.cdr
CAB-3/4 Series Cabinet
ABS-8R or UBS-1
Ferrite Cores
EARTH
Comm FAILURE
+24V
+24V
GND
RS+
RS–
SHIELD
RS+
Rs–
ACS/TERM
TERM
COMMONCOMMON BATT - +24V POWER+24V RESET BATT +
To Phone Lines
(supervised)
Connect to CHS-4
Chassis
MPS-24B
SIB-2048
EIA-485
Interface
DO NOT USE
UDACT-16.cdr
