Telephone Connections
24
UDACT Instruction Manual PN 50050:H 09/16/2002
Telephone Connections
Provision to connect to two independent telephone lines is available via two telephone jacks labeled
PH1 (Primary) and PH2 (Secondary). Telephone line control/command is possible via double line
seizure as well as usage of an RJ31X style interconnection. (RJ31X jacks must be ordered separately).
Note: It is critical that the UDACT be located as the first device on the incoming telephone circuit to properly function.

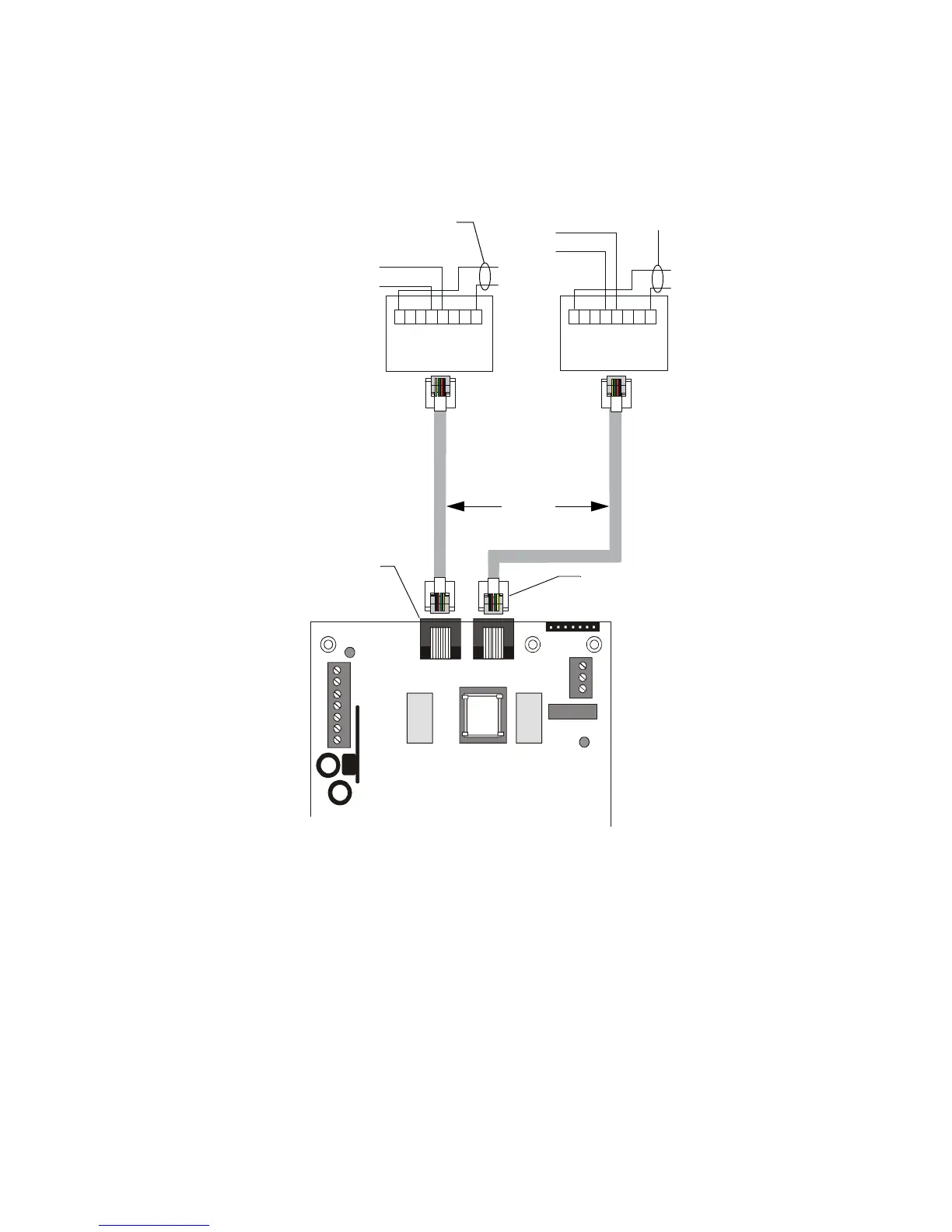

Figure 7 Wiring Phone Jacks
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
UDACT-03.cdr
RJ31X
Jack
RJ31X
Jack
Ring
Tip
Ring
Tip
Ring
Tip
Ring
Tip
Green
Green
Red
Red
To Premise Phones To Premise Phones
Secondary Lines-
Incoming Telco
Phone Lines
Primary Lines-
Incoming Telco
Phone Lines
Note: Shorting bars
inside jack removed
during male plug
insertion
Secondary Phone
Line - PH-2
Primary Phone
Line - PH-1
Seven foot Cable
MCBL-7
(order separately)
Male Plug
Connectors
Modular Female
Connectors
