Troubleshoot Mode
UDACT Instruction Manual PN 50050:H 09/16/2002 57
Troubleshoot Mode
☛ To access Troubleshoot Mode, press MODE, then 8768, then ENTER/STORE.
8768 spells TROU on a Touch-Tone® phone.
Once in this mode, the UDACT will:
• Transmit the 'UDACT Off Normal' message to the Central Station(s).
• Continue to communicate any events not yet acknowledged at the Central Station prior to
entering Troubleshoot Mode.
The
UP, DOWN and 1ST EVENT keys do not function in this mode.
Telephone Line Testing
Pressing C for touchtone dialing or D for rotary dialing, followed by ENTER/STORE causes seizure of the
primary phone line which in turn lights the red LED signifying Primary phone line active. After a delay
of three seconds, the UDACT goes off hook to acquire a dial tone.
The keypad may be used as a telephone touchpad for number dialing. Once the first digit is pressed, the
display will move the C or D character one position to the left, while placing the digit to be dialed on the
farthest right display position. Continue to press the phone numbers to be dialed. Successive
depressions of the
ENTER/STORE key hangs up and picks up the phone (places the phone on or off the
hook).
The secondary phone line may be tested by pressing the E key for touchtone dialing or the F key for
rotary dialing and then following the same procedure used for the primary phone line.

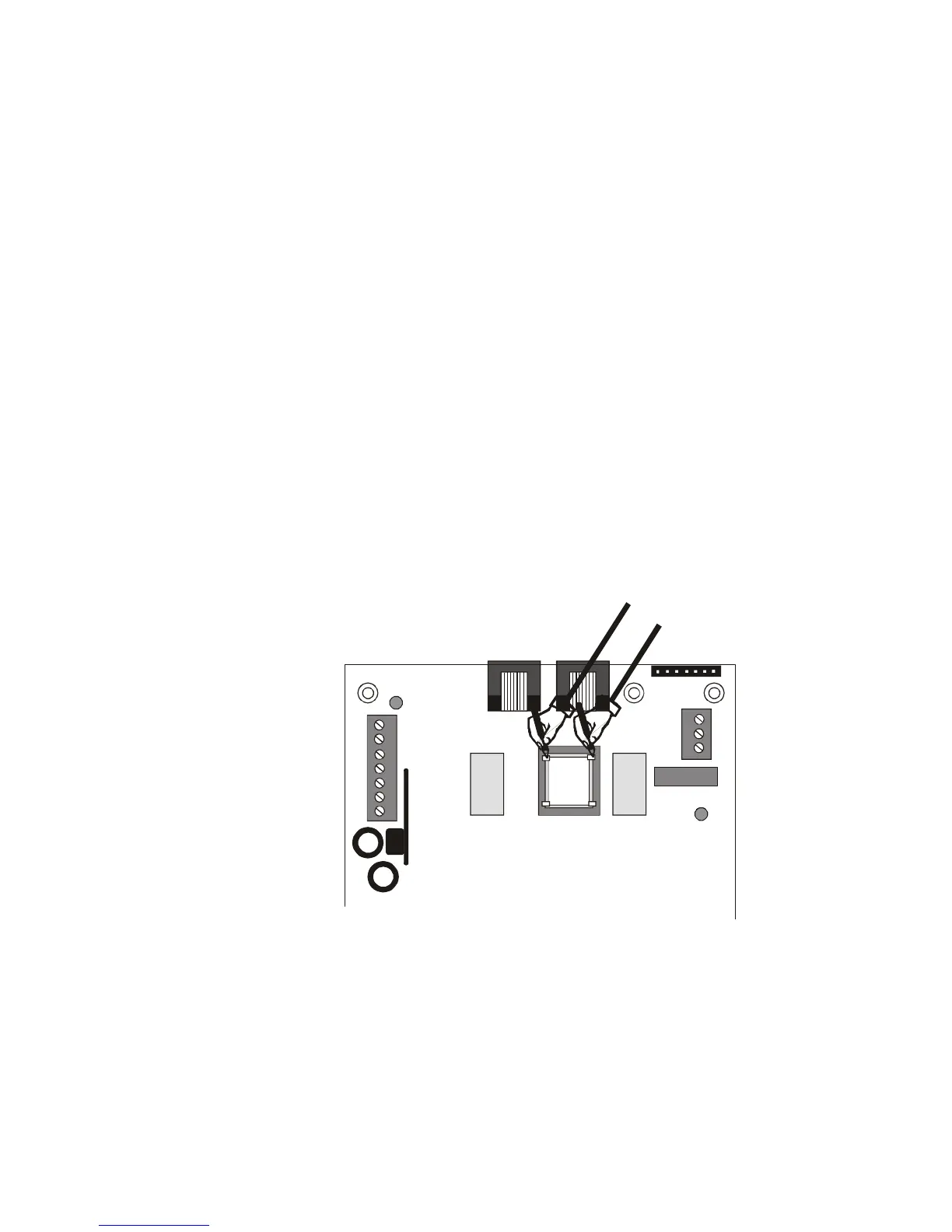

A handset may be temporarily connected across transformer T1 as indicated below. The handset, when
connected across T1, may be used only as an amplifier/speaker or telephone with the UDACT used for
number dialing.
Figure 14 Handset/Speaker Connection
Lamp Test Mode
This will test all system LEDs. The LEDs will stay on for five seconds, then the UDACT will return to
Normal Mode.
☛ To perform a Lamp Test, press MODE, then 5267, then ENTER/STORE.
5267 spells LAMP on a Touch-Tone® phone.
UDACT-08.cdr
Transformer
T1
