Switch Functions
30
UDACT Instruction Manual PN 50050:H 09/16/2002
Switch Functions
The Function of each switch in program mode is shown below:

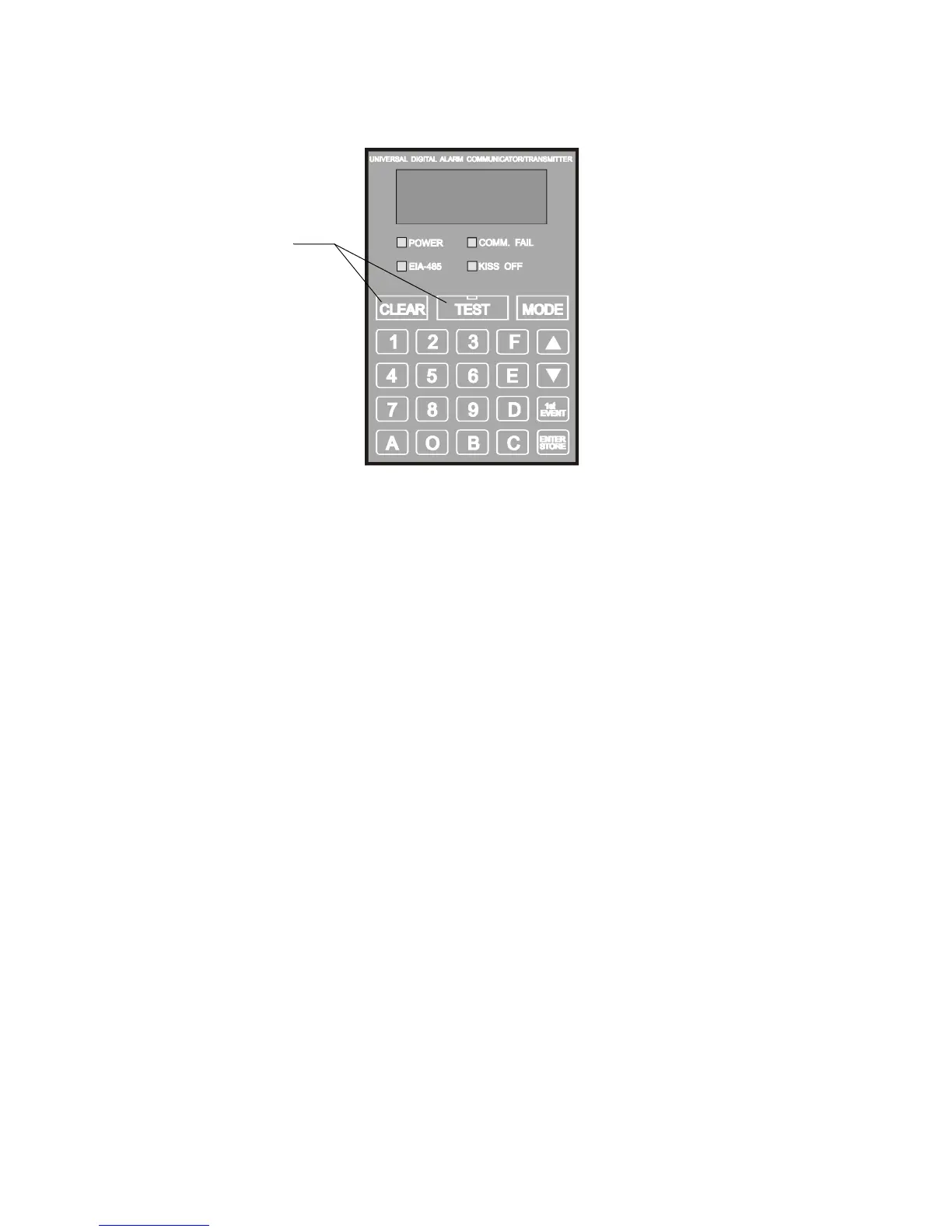

Figure 11 UDACT Keypad
Programming Options
Primary Phone Number (00-15)
The first sixteen addresses, 00-15, are factory set to 'F' (from 00_F to 15_F). Programming is typically
done as follows:
If your phone number is 484-7161, type 4, the display will read 00_4, press
ENTER/STORE to save the
entry to memory and increment to the next address 01_F.
Enter the remaining numbers in their respective addresses as shown below:
Valid entries for both the primary and secondary phone numbers are 0 - F with the numeric digits as
dialed numbers and hexadecimal digits (A-F) representing the following functions:
A= * on a Touchtone phone keypad
B= # on a Touchtone phone keypad
C= look for secondary dial tone for up to 2 seconds (then, dial anyway)
D= 3-second pause
E= 5-second pause
F= end of phone number (Note: F must be entered)
Select operating mode
Increment memory address
Decrement memory address
Once = First memory address
Twice = type any address
Save data, go to next address
No function in
this mode
Address entry keys
are 0 to 9
Data entry keys are
0 to 9 and A to F
UDACT-07.cdr
4847161FFFFFFFFF
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
