Notifier UDACT

Wiring
72
UDACT Instruction Manual PN 50050:H 09/16/2002
Below is a remote installation of a UDACT with an AFP-200:

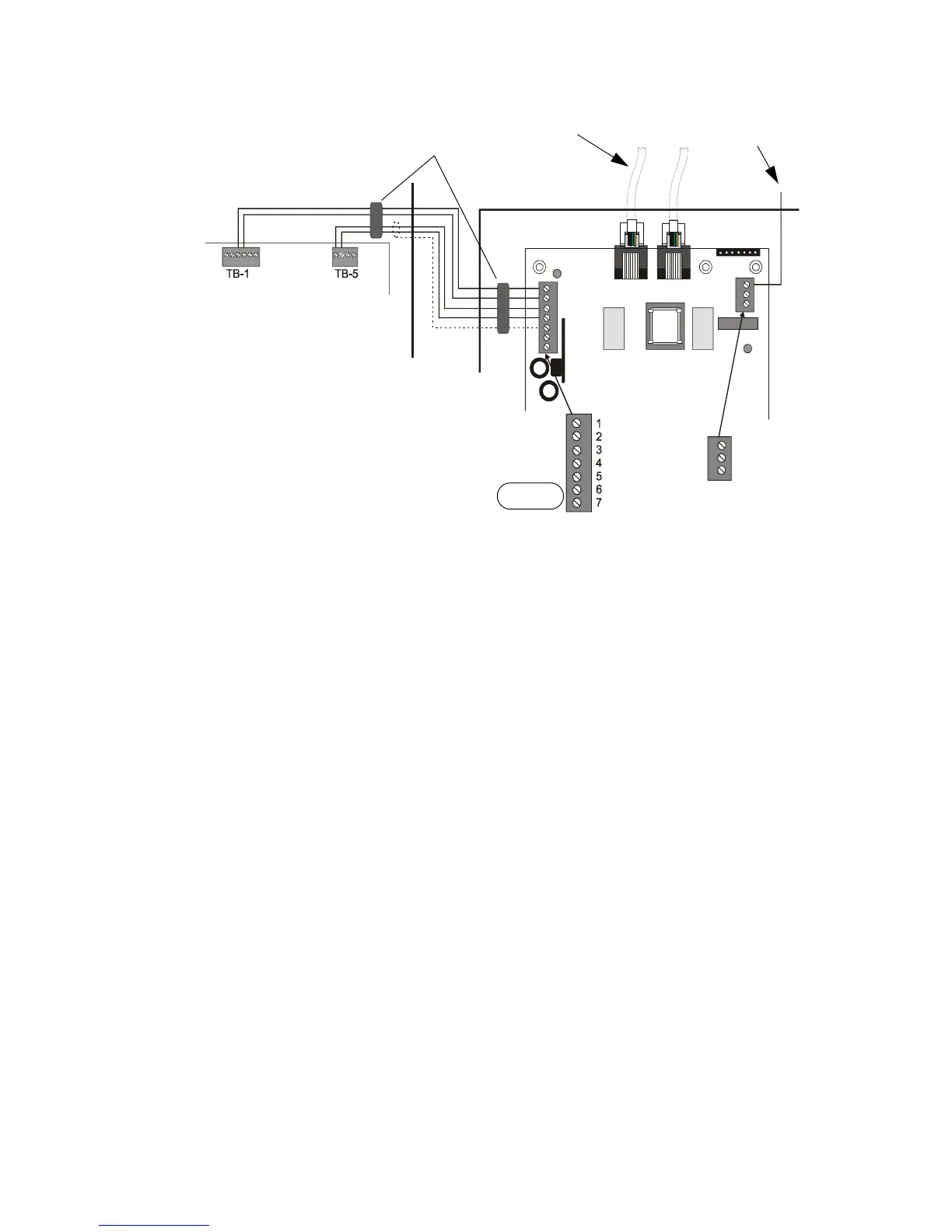

Figure 17 UDACT and AFP-200
EARTH
Comm FAILURE
+24V
+24V
GND
RS+
RS–
SHIELD
RS+
Rs–
ACS/TERM
TERM
UDACT-09.cdr
Solid Earth
Ground
Connection
To Phone Lines
(supervised)
DO NOT USE
AFP-200 Cabinet
AFP-200 Circuit Board
ABS-8R or UBS-1
Ferrite Core
