Notifier UDACT

UDACT Instruction Manual PN 50050:H 09/16/2002 81

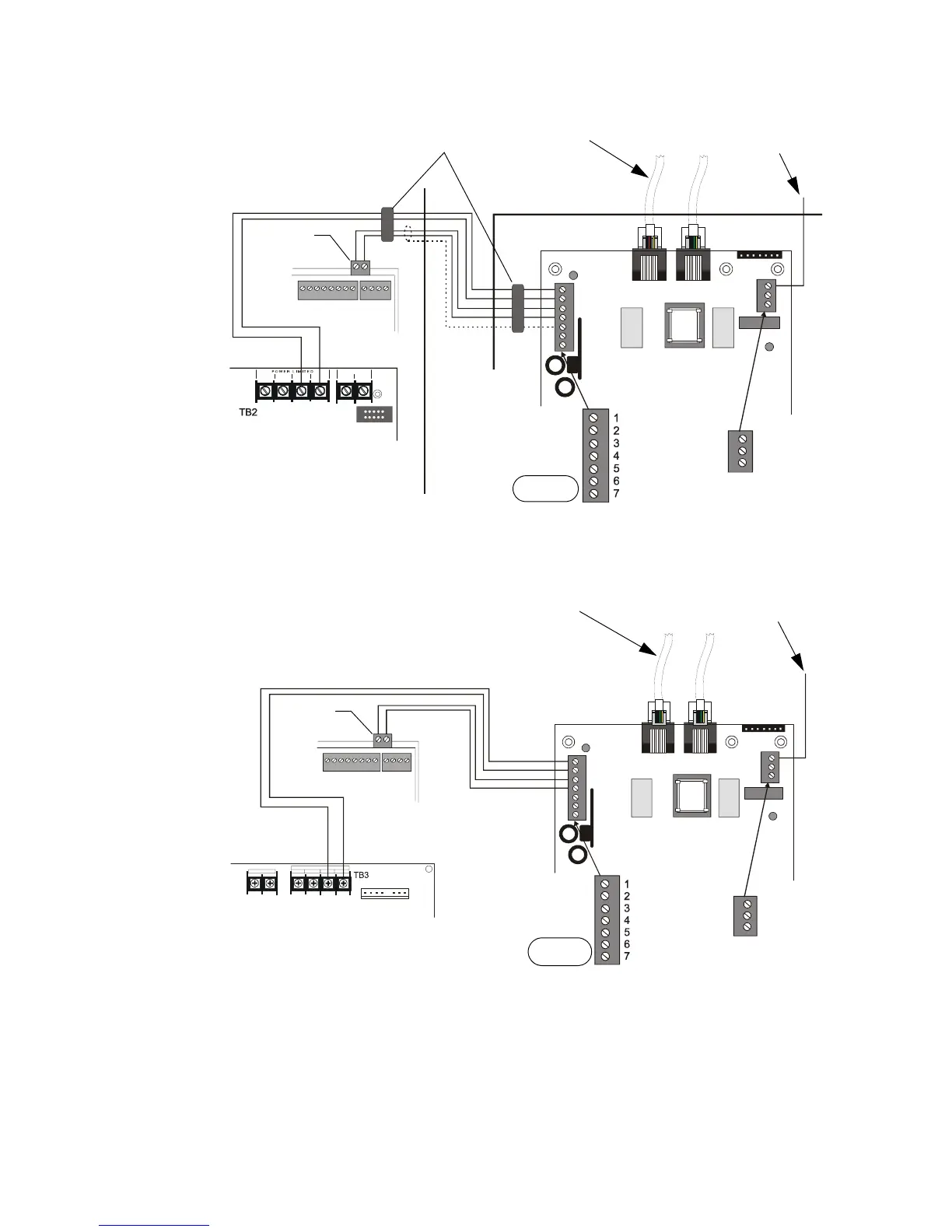

Below is a remote installation of a UDACT with a System 5000 using an MPS-24B power supply:
Figure 19 UDACT and System 5000 with MPS-24B
Below is an internal installation of a UDACT with a System 5000 using an MPS-24A power supply:
Figure 20 UDACT and System 5000 with MPS-24A
EARTH
Comm FAILURE
+24V
+24V
GND
RS+
RS–
SHIELD
RS+
Rs–
ACS/TERM
TERM
COMMONCOMMON BATT - +24V POWER+24V RES ET BATT +
UDACT-12.cdr
Solid Earth
Ground
Connection
To Phone Lines
(supervised)
ABS-8R or UBS-1
System 5000 Cabinet
CPU-5000
EIA-485
Interface
DO NOT USE
MPS-24B
Ferrite Cores
EARTH
Comm FAILURE
+24V
+24V
GND
RS+
RS–
SHIELD
RS+
Rs–
ACS/TERM
TERM
+24R COMMO N + 24 COMMON
POWER LIMI TED
BAT + B AT -
UDACT-11.cdr
To Phone Lines
(supervised)
MPS-24A
EIA-485
Interface
CPU-5000
DO NOT USE
Connect to CHS-4
Chassis
