Notifier UDACT

Wiring
94
UDACT Instruction Manual PN 50050:H 09/16/2002

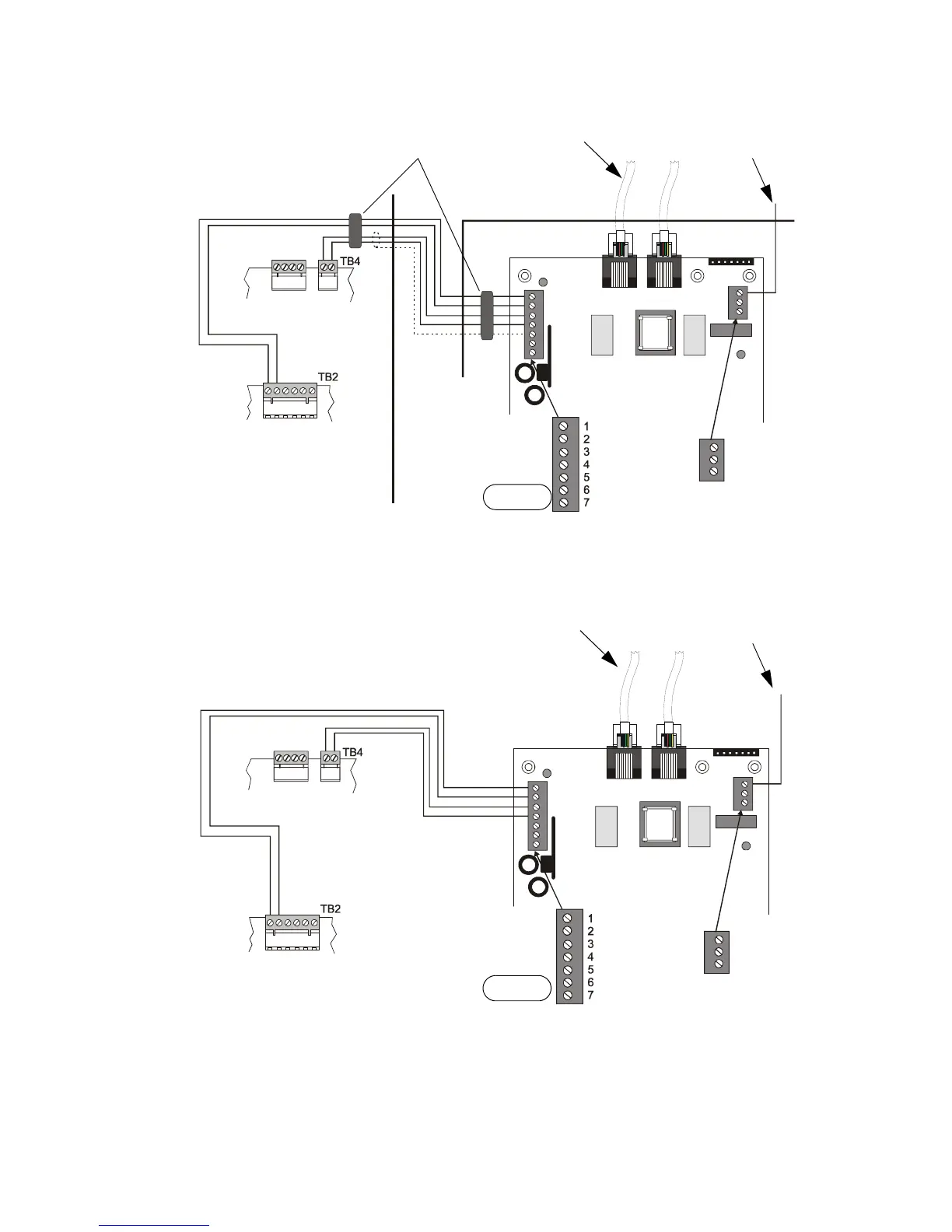

Below is a remote installation of a UDACT with an AFC-600:
Figure 23 UDACT and AFC-600 in a CAB-AA
Below is an internal installation of a UDACT with an AFC-600:
Figure 24 UDACT and AFC-600 in CAB-3/4
EARTH
Comm FAILURE
+24V
+24V
GND
RS+
RS–
SHIELD
RS+
Rs–
ACS/TERM
TERM
To Phone Lines
(supervised)
Solid Earth
Ground
Connection
ABS-8R or UBS-1
CAB-600AA Cabinet
CPU-600
MPS-6
UDACT-13.cdr
DO NOT USE
Ferrite Cores
EARTH
Comm FAILURE
+24V
+24V
GND
RS+
RS–
SHIELD
RS+
Rs–
ACS/TERM
TERM
DO NOT USE
MPS-6
CPU-600
To Phone Lines
(supervised)
Connect to CHS-4
Chassis
UDACT-14.cdr
