Installation Circuit Connections
44 XPIQ PN 51013:C 7/01/03
XPIQ-SLI Wiring Style 4
The SLC, which is connected to the XPIQ-SLI, can be wired Style 4, Style 6 or Style 7. Figure 2.19
illustrates the SLC wired to the XPIQ-SLI in a Style 4 configuration. In this configuration, if SLC
communication is lost between the FACP and XPIQ-SLI, the XPIQ will be unable to detect alarm
conditions and activate notification appliances on the local branch.
M
M
M
M
M
= addressable module
= addressable smoke detector

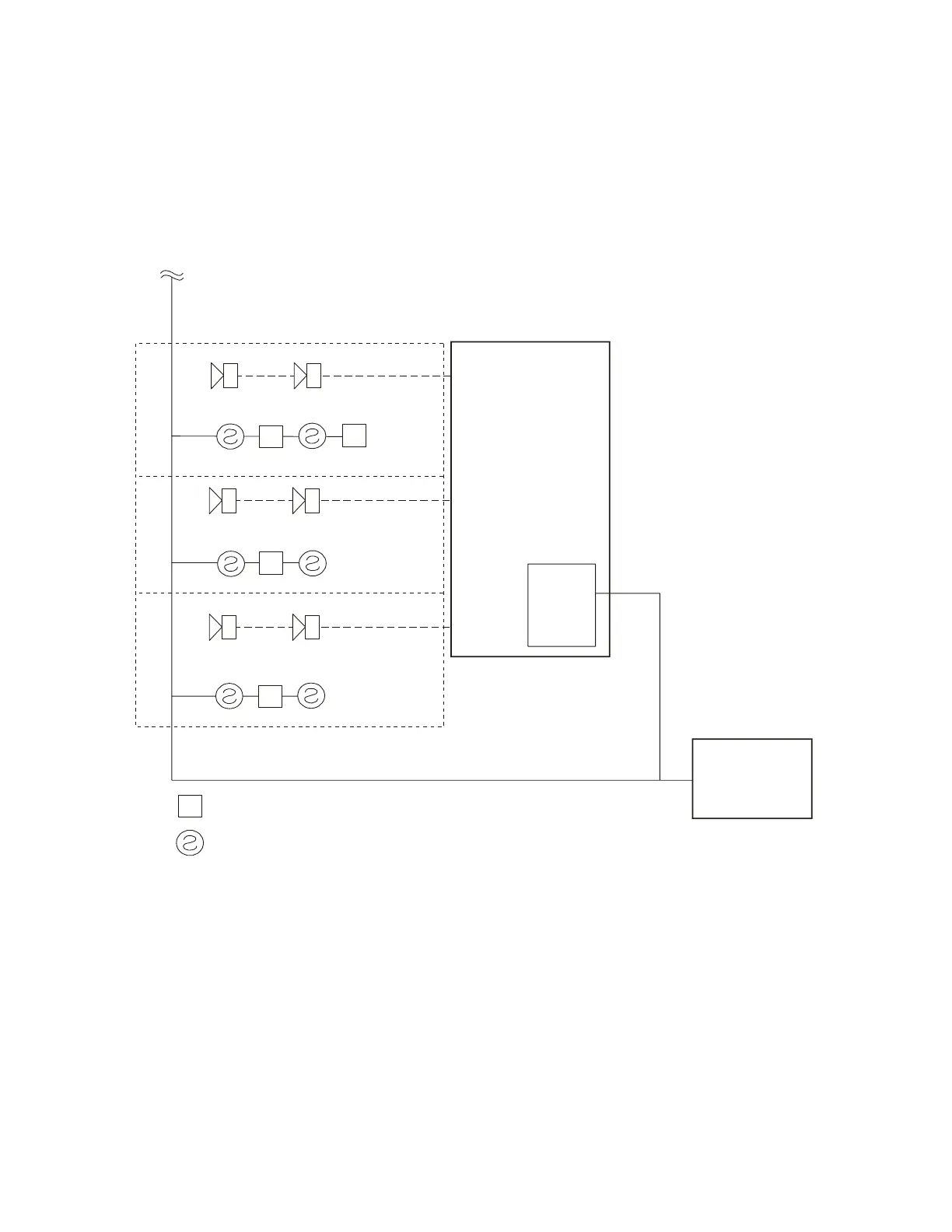

Figure 2.19 SLC Style 4 With T-taps (No Degraded Mode)
FACP
XPIQ-MB
XPIQ-SLI
TB1
Zone 3
Zone 2
Zone 1
SLC
SLC
XPIQst4t.CDR
To Next Page
