5.2 Fitting the Rear Wheel

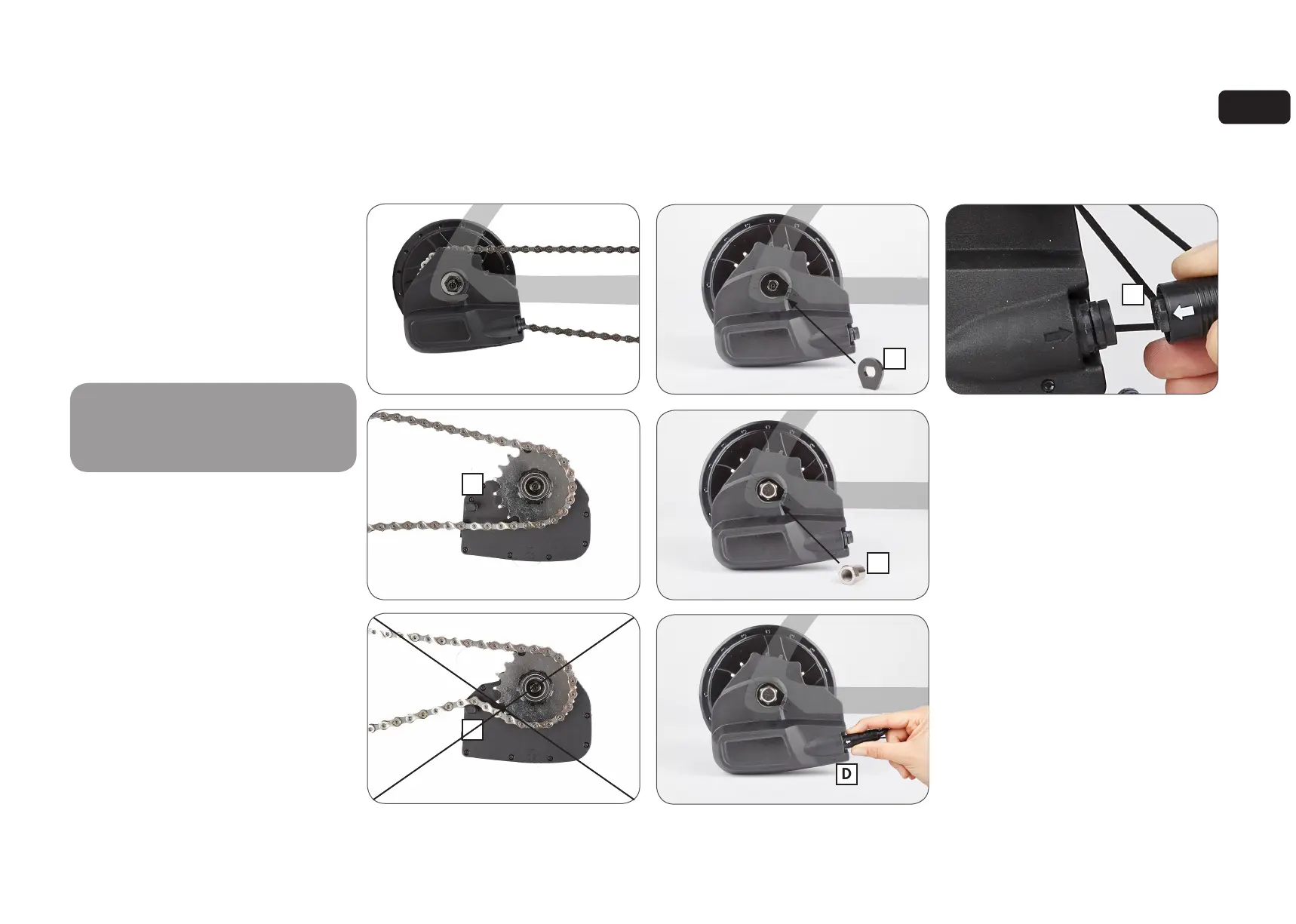

1. Place the rear wheel into the frame,
making sure not to obstruct or pinch
the Harmony wire harness and main
connector.
- Orient the chain around the Harmony Hub
Interface and onto the sprocket.
- In some cases, it is easiest to remove the
chain from the front chain ring to ease rear
wheel installation.
t
2. Slide one no-turn washer (B) onto each
axle end. The serrations of the no-turn
washer must bear against the dropout
of the frame. The rectangular boss must
engage the dropout of the frame.
3. Mount the axle nuts (C). Tightening torque
30-40 Nm (266-350 in-lbs).
- For rim and roller brake applications,
connect the rear brake according to the
manufacturer’s instructions.
4. Install the Harmony main connector by
lining up the arrows (D) and carefully
pressing together.
HARMONY GENERAL CARE
A
Locate the rear wheel speed sensor
boss (A) on the Harmony Hub
Interface. The chain should not catch
on this sensor when fitting the wheel
B
D
C
A

!
D
