NuVinci Harmony H|Sync - Exploded View

25
EN
TECHNICAL OWNER MANUAL

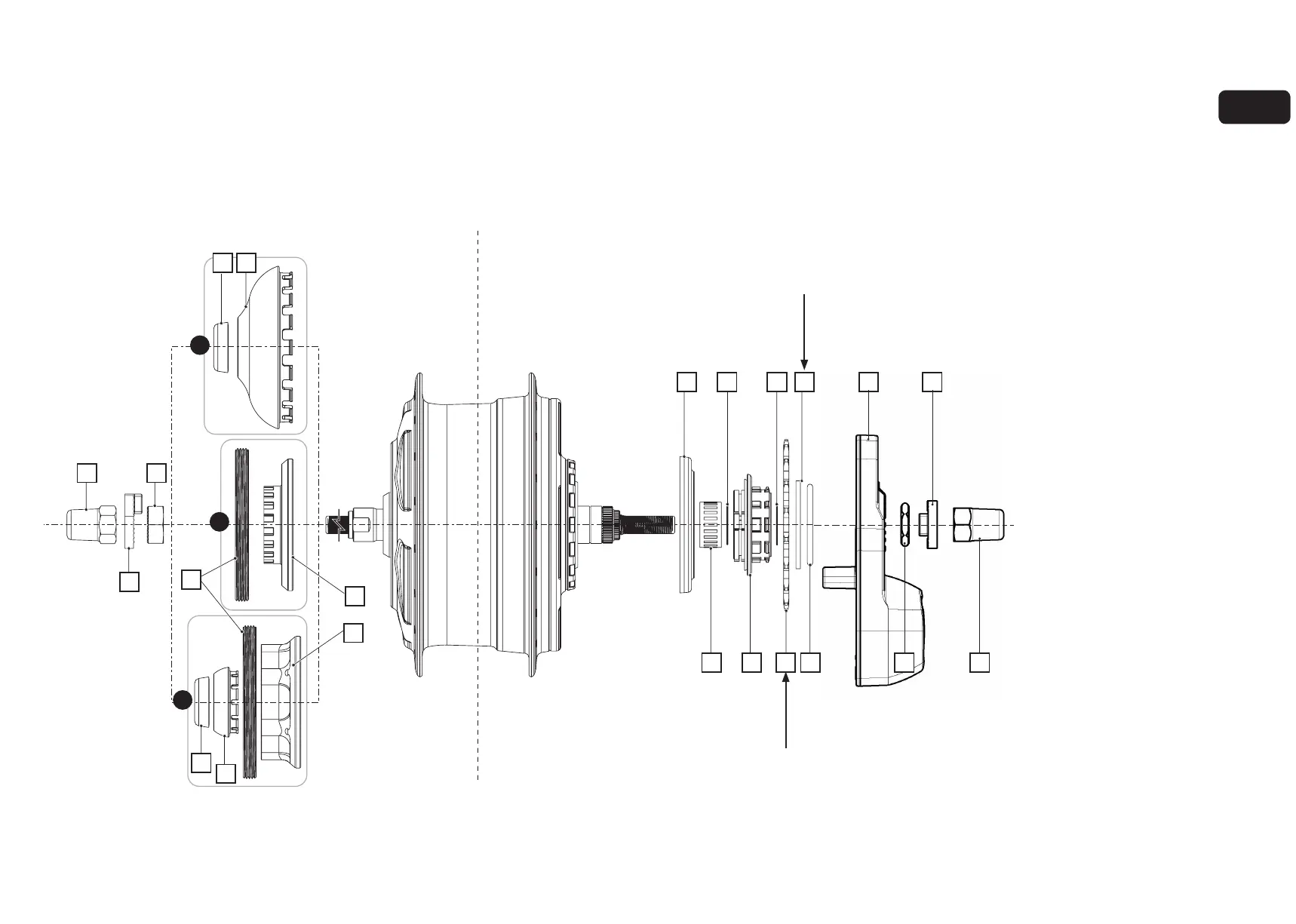

8.3 Exploded View
HARMONY TECHNICAL DATA
18 16 14 12 10
19 17 15 13 11 2
Rim brake configuration
Roller brake configuration
Disc brake configuration
Axle nut
No-turn washer
Left hand nut
Cupped washer
Rim brake cover
Brake lock ring
Roller brake adapter
Brake shield
Disc brake adapter
R.h.nut
Hub Interface
Sprocket snap ring
Sprocket spacer
Sprocket
Snap ring (freewheel)
Freewheel assy
Snap ring (interior)
Needle bearing
R.h. shield
A
B
C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
7
9
4
8
6
4 5
1
2
3
A
B
C
(Optional – to be
used with 2.3 mm
thick sprockets)
Not supplied
Left (non-drive) side Right (drive) side
