6.1 Wheelbuilding

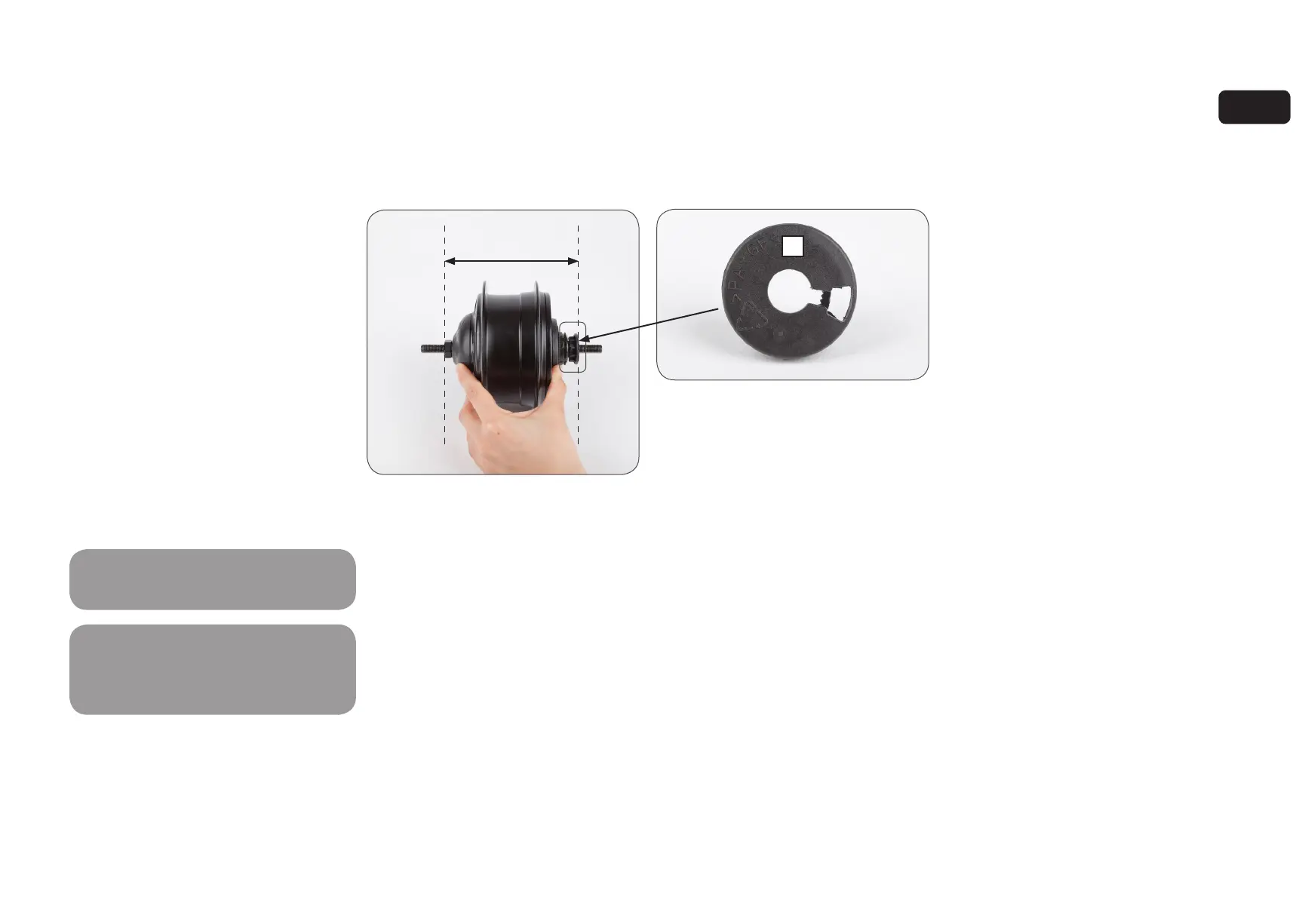

• The anti-shift retainer (A) provides 135mm
spacing, and should remain on the CVP
during lacing and wheelbuilding.
- Maximum spoke diameter is #13/ 2.34mm
- Minimum spoke diameter is #14/ 2.00mm
• Suggested lacing is a 2-cross pattern for 26
inch and 700c wheels.
- Use a 2-cross pattern only if the rim allows
the nipples to be effectively in-line with the
spokes.
• For 24 inch or smaller wheels a 1-cross
pattern is suggested.
• Radial lacing is not recommended.
6. Harmony assembly of components
HARMONY ASSEMBLY OF COMPONENTS
A
Installation and repairs must be made
by a qualified bicycle mechanic.
This section assumes a level of
knowledge and skill consistent with
that of an experienced bicycle
assembler or bicycle mechanic.
135 mm

!

!
