LPCXpresso boards for LPC546xx/LPC540xx/LPC54S0xx families of
MCUs
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2017-2019. All rights reserved.
Rev. 2.1 — 7th January 2019

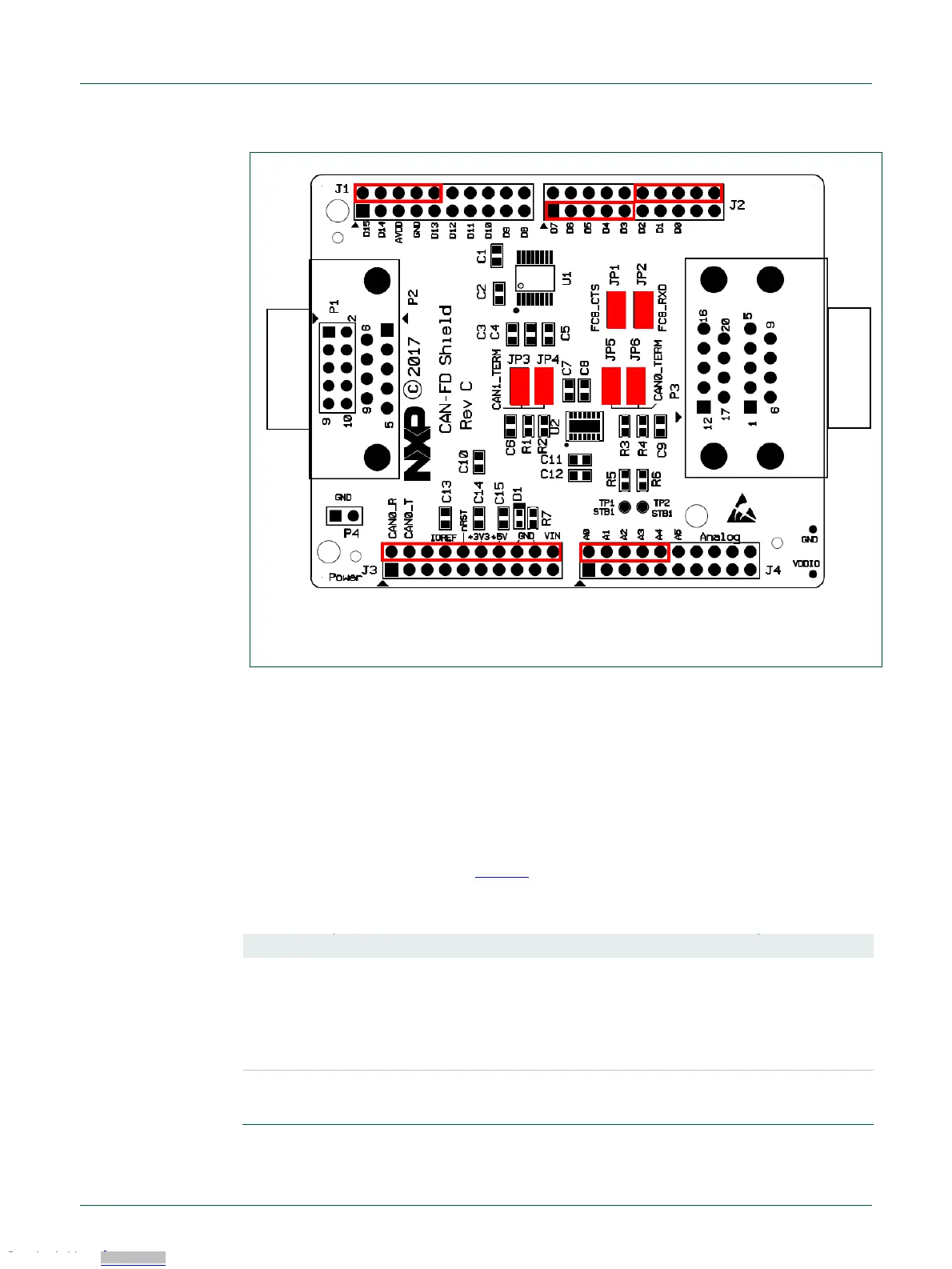

Fig 8. CAN-FD Shield Layout
The CAN-FD Shield has a double-height DB9 connector installed by default (P3) for
CAN/CAN-FD connections.
The Shield board layout includes provision for a DB9 connector to be installed (P2) but a
standard 0.1” header (P1) is installed by default; P1 would need to be unsoldered in
order for P2 to be fitted.
Note that header P4 is provided to allow convenient access to ground.
10.2 Jumper settings
Jumper settings are described in Table 8.
Table 8. CAN-FD Shield Jumper settings
RS232C transceiver CTS connection.
When fitted, the RS232C transceiver CTSn signal is connected
to expansion connector J4 pin 8 (Arduino A4). On the
LPCXpresso546x8/540xx/54S0xx boards A4 is connected to pin
PIO3_4; this pin is shared with the accelerometer interrupt
output.
RS232C transceiver RXD connection.
When fitted, the RS232C transceiver R1OUT signal is connected
to expansion connector J2 pin 20. On the
