NXP Semiconductors LPCXpresso54608 User Manual

NXP Semiconductors
UM11035
LPCXpresso boards for LPC546xx/LPC540xx/LPC54S0xx families of
MCUs
UM11035
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2017-2019. All rights reserved.
User manual
Rev. 2.1 — 7th January 2019
6 of 36
(1) Red is used to highlight key components, brown for buttons and LEDs, green for connectors and blue for expansion
connectors.

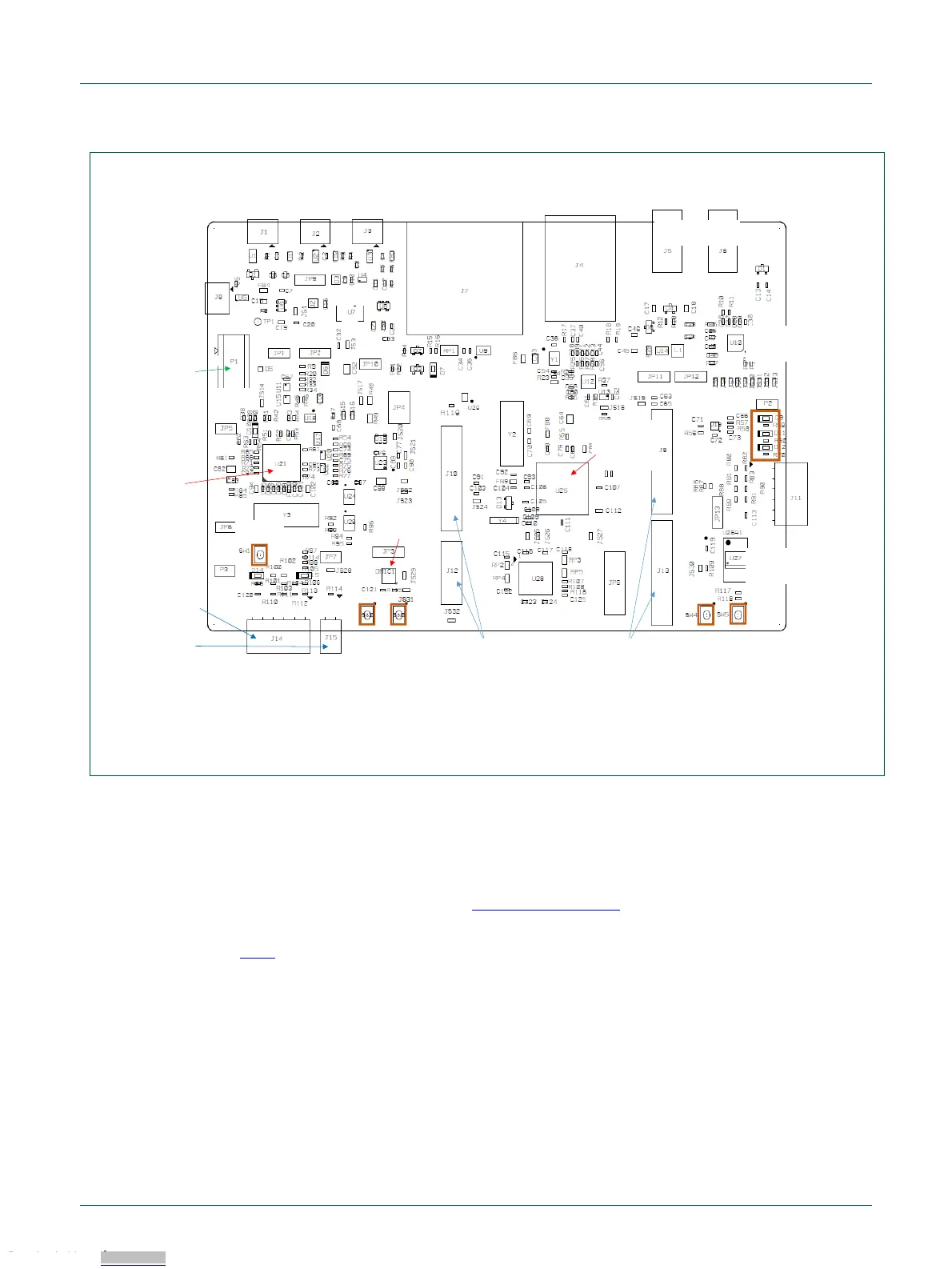

Fig 2. LPCXpresso546x8/540xx/54S0xx main feature layout
The LCD panel is mounted on the reverse side of the board, connected to the circuitry
via two flex cable connectors. It should not normally be necessary to remove the LCD or
access these connectors; the LCD is held in place by 4 double-sided adhesive pads. The
LCD panel is available for purchase separately for the LPCXpresso54S018 which does
not come with this installed; visit https://www.nxp.com and search for part number
RK043FN02H-CT to order this panel.
Fig 3 shows the location of indicators and jumpers.
SD/MMC socket
Ethernet
(RJ45)
Audio jacks
In Out
Debug
probe
(micro B)
Ext.
Debug
Probe
Header
Target
MCU
LPC54608
Peripheral
Pmod
connector
Host
Expansion
Header
Additional host
connector
Arduino/LPCXpresso V3 expansion connectors
Power
(micro B)
High speed
USB port
(micro AB)
Full speed
USB port
(micro AB)
Link2
Debug
Probe
(LPC43xx)
SDRAM
Quad
SPI flash
Reset
ISP3
User
LEDs
ISP2
ISP0 User
Audio
codec
Digital
mic
