Oceanic PROPLUS X - QUICK DISCONNECT HOSE

7
PROPLUS X OPERATING MANUAL
© Pelagic, 2016 Doc. No. 12-5655-r01 (8/19/16)
QUICK DISCONNECT HOSE

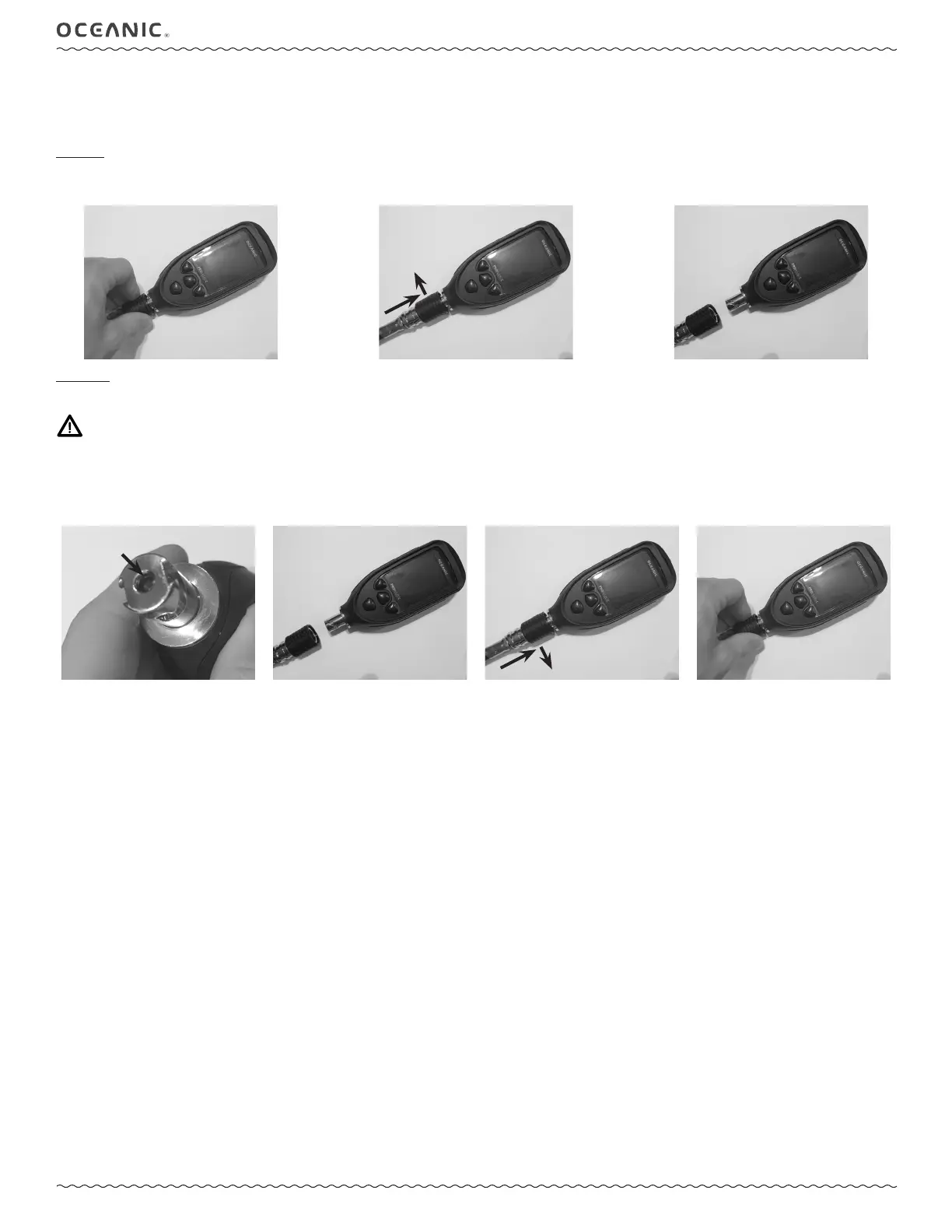

The Quick Disconnect allows for convenient removal and storage of your ProPlus X console.
Removal
• Turn the locking collar counterclockwise to loosen.
• Then push the hose tting towards the ProPlus X and turn it counterclockwise ¼ turn. The hose will release from the console.
Assembly
• Visually inspect the ttings and connection O-ring for damage, corrosion, or deterioration.
WARNING: If damage, corrosion, or deterioration is found, return your ProPlus X to an authorized Oceanic dealer, and DO NOT
attempt to use it until it has received factory prescribed service.
• Line up the Quick Disconnect Hose tting with the male tting on the ProPlus X console.
• Then push the two ttings together while turning clockwise ¼ turn.
• Secure the hose by tightening the locking collar clockwise.
O-ring
