ODB LCT6000 - Hydraulic Parking Jack - OPTIONAL

107
ODB COMPANY
800-446-9823 LCT6000

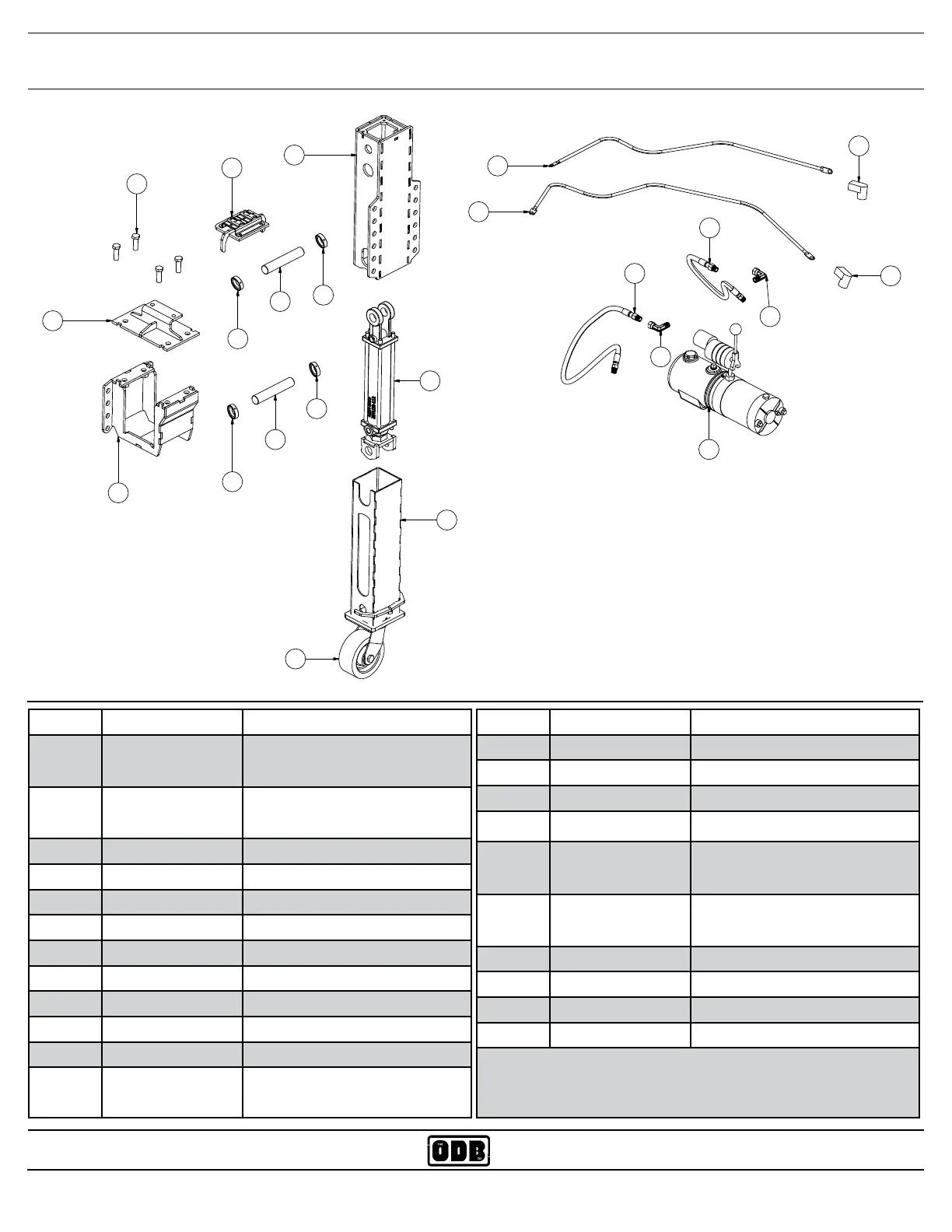

9.4 Hydraulic Parking Jack - OPTIONAL
LCT60C/ 600 / 6000 / 650 - optional - Nov. 2006 and after
ITEM# PART NO. DESCRIPTION
* LCT622.624H1 Hyd. Parking Jack Assembly
incl. all below except#1-10
* LCT622.624H2 Hyd. Parking Jack Assembly
complete (includes 1-19)
1 STD.9001 Outer Tube
2 STD.9002 Inner Tube
3 STD.9003 Caster Assembly
4 STD.9014 Cylinder
5 STD.9006 Lock Collars
6 STD.9004 Top Pin
7 STD.9005 Bottom Pin
8 Outer Tube Top
9 STD.9008* Clamp Top
10 STD.9007
6000.9007
Clamp Bottom, 600/800/650
Clamp Bottom, 6000
ITEM# PART NO. DESCRIPTION
11 5CZ.500.1.5 Clamp Bolts
12 MPM310 Hydraulic Pump
13 80.1552 Fitting, 90 degree
14 80.1552 Fitting, 90 degree
15 STD.9009
STD.9009B
Hydraulic Hose, Top
Hydraulic Hose, Top 2/3X
16 STD.9010
STD.9010B
Hydraulic Hose, Bottom
Hydraulic Hose, Bttm 2/3x
17 STD.9012 Battery Cable, Red
18 STD.9013 Battery Cable, Black
19 65.1306 Stud Cover, Red
20 65.1307 Stud Cover, Black
Notes: *#8,9 not used on 2/3 axis units
* #11-13,16-19 not used on 2/3 axis units
* will work on older units(use LCT622.624H2)
17
18
20
19
14
16
15
13
12
2
3
4
1
8
6
7
10
9
11
5
5
5
5
