ODB LCT6000 - Wiring Harness Diagram 2 Section Valve Body - 2 Axis

80
ODB COMPANY
800-446-9823 LCT6000
Service Section
5.20.1 Wiring Harness Diagram 2 Section Valve Body - 2 Axis

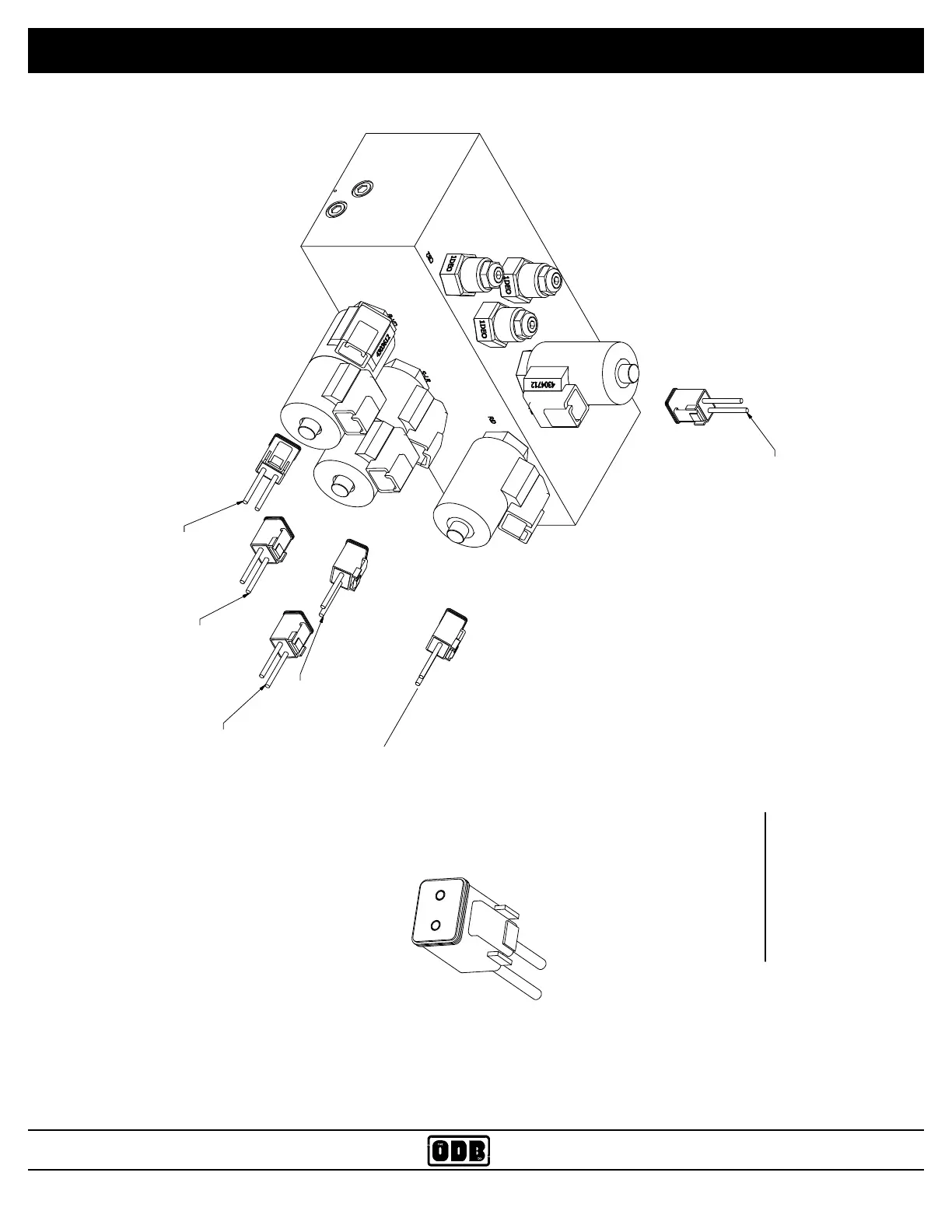

Wiring Diagram
Blue
Orange
Grey
Green
Red w/ Green Stripe
Yellow
Boom Down Boom Up Boom Forward
Boom Reverse Proportional Valve
Deadman
Deadman
(Yellow)
*Bottom Coil
Boom Up
(Orange)
Proportional Valve
(Red w/ Green Stripe)
*Bottom Coil
Boom Reverse
(Green)
*Top Coil
Boom Forward
(Grey)
*Top Coil
Boom Down
(Blue)
-Plug Connector
* Every connector has 2 wires, one is a (color), the other is black
