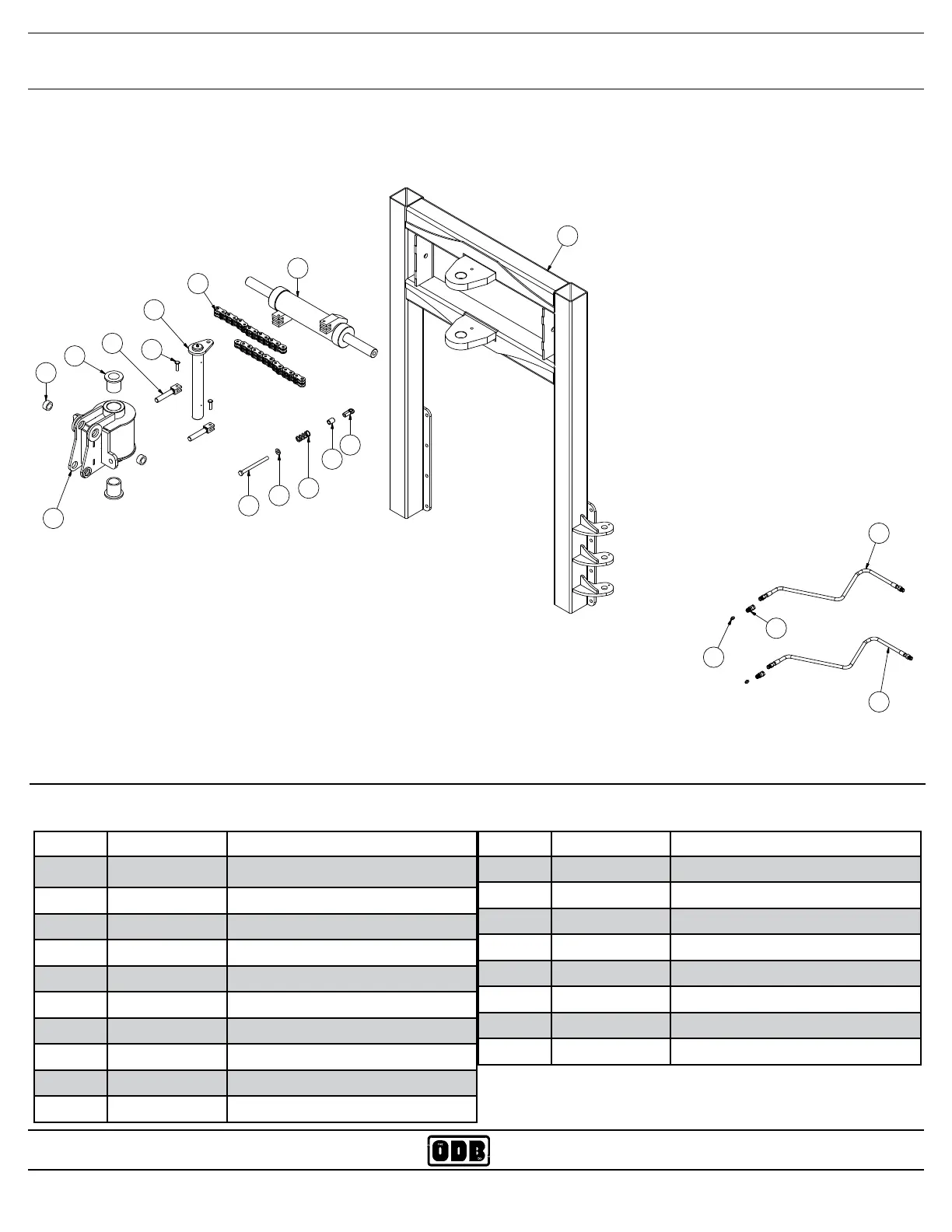

11.7 Hinged Boom Frame Assembly - Chain Drive
ITEM# PART NO. DESCRIPTION
1 600.600C Frame
2 550.1820 Cylinder
3 550.1801 Chain
4 550.1800 Connector
5 550.1800.B Pin
6 550.1812 Boom Swivel
7 8X.002E Bushing
8 550.1812.B Swivel Bushing
9 550.1813 Swivel Pin
10 550.1808B Bolt
ITEM# PART NO. DESCRIPTION
11 550.1808D Washer
12 550.1808 Spring
13 550.1808C Spacer
14 550.1809 Rod End Ball Joint
15 450.1412 Grease Zerk
16 450.1411 Fitting
17 Call Grease Hose
18 Call Grease Hose
