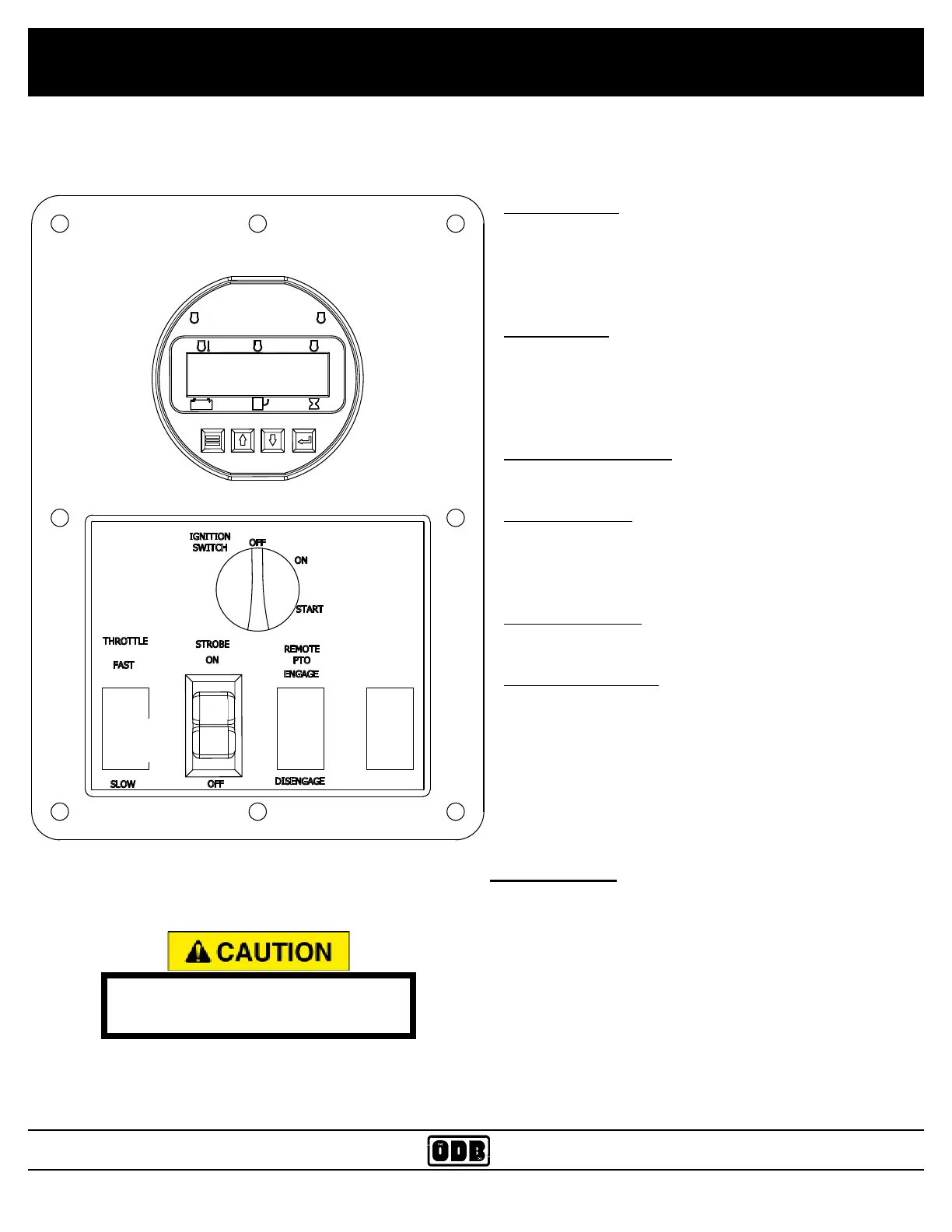

2.1 Instrument and Controls:
Always make sure the PTO is disen-
gaged before starting unit.
Ignition Switch:
Used to power the accessories and start the unit.
ACCESSORIES - rst position
STARTER ENGAGE - second position (springs return
to rst position)
Strobe Toggle
This switch toggles the strobe light on the Blower
Housing (6.3 & 8.2)
CONTROL MODULE
To enter Menu system
Hold Menu button and press Enter◄ button
Menu Navigation
Press Menu to scroll menu options
Press Up▲ arrow to enter Menu option
Press Down▼ arrow to retun
Exit Menu System
Hold Menu button and press Enter◄ button
To Change A Setting
Press Enter◄ button to bring up brackets [ ]
Press Up▲ arrow button and Down▼ arrow button to
change setting
Press Enter◄ button to make selection, brackets
dissapear
*Recycle Key to the OFF position after changing a
setting*
Main Menus
>Active Engine Fault Codes
View/Scroll Active Codes
>Stored Engine Fault Codes
View/Scroll Stored Fault Codes
>Engine Parameters
View ECU Engine Information
(%Load, Torque, Oil Temp, ect)
>Engine Identication
Engine Model # View
Engine Seriel # View
>Module Information
Control Unit Part# View
Control Unit Software Version View
>Controller Set
Input Conguration
Throttle Conguration
Module Conguration
CAN Conguration
MOD bus Conguration
Conguration Menus (Controller Set)
>Input Conguration
Analog 1 Funtion
Digital 1 Function
>CAN Conguration (Throttle)
Throttle type Selection
TSC Minimim Speed
TSC Maximum Speed
TSC Ramp Rate
Throttle Curve Selection
>Module Conguration
Display Units (English, Metric)
Hourmeter Source (Engine ECU, Internal)
Battery Source (J1939, Internal)
Battery Volt Trim
>CAN bus Conguration
Source Adsress (Default=44) Others Available
TSC1 Address (Default=3) Others Available
Engine Address (Default=0) Others Available
Oil / Fuel Transmit
>MOD bus Conguration
Baud Rate
Parity
Stop Bits
Slave Address
Enable Gauges
Tachometer Range
Engine Oil Tempertature Range
Transmission Oil Temperature Range
To access the controller setup menus (Conguration Menus), a password is required
