40
ODB COMPANY
800-446-9823 LCT6000
Operating Section

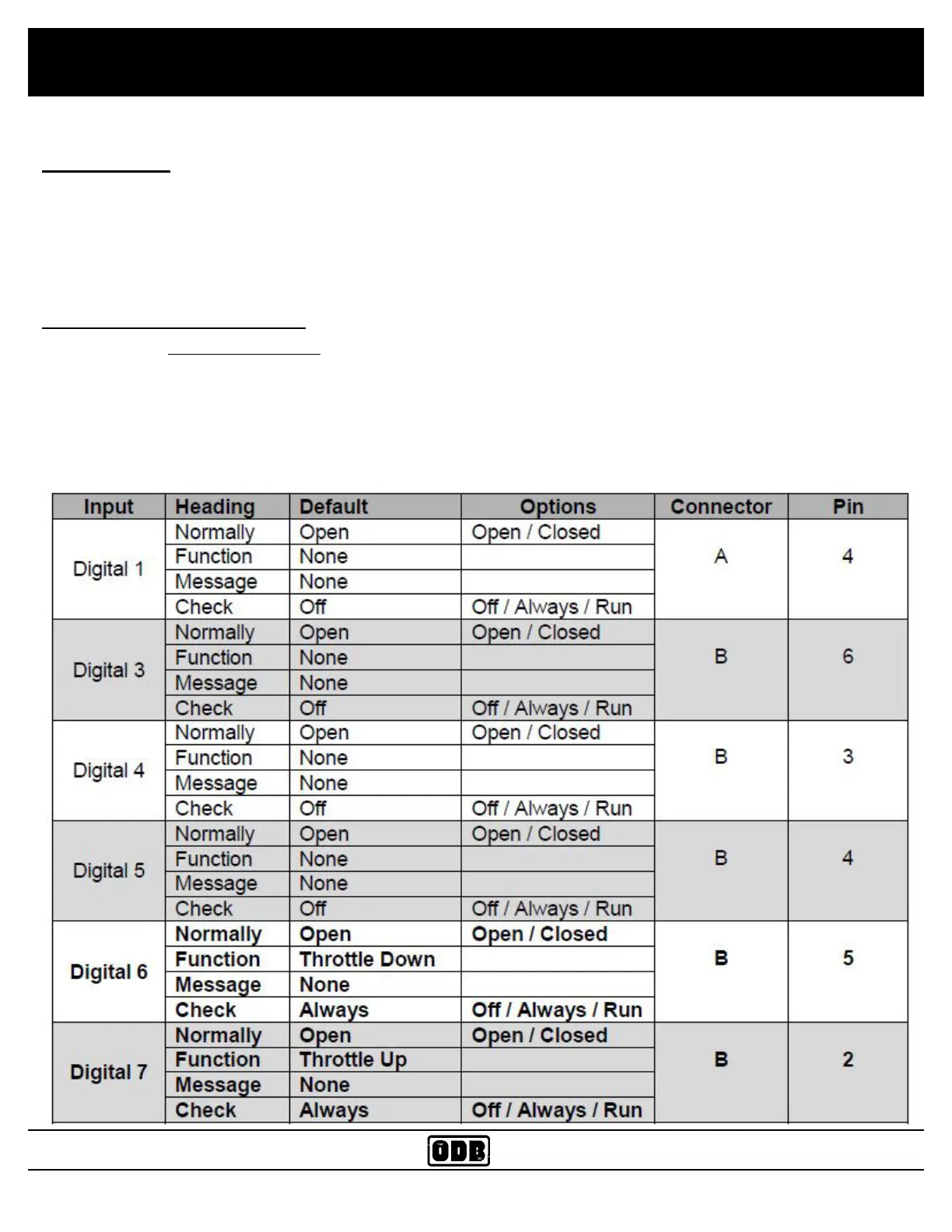

3.5 Engine Controller- Digital Inputs
Digital Inputs
Digital inputs can be used for engine shutdowns using normally open or normally closed (to
ground) switches. Switches for parameters such as low coolant level can be incorporated into the
control panel. Shutdown indications include red lamp illumination and a display message (i.e. Low
Coolant Level Shutdown).
Control Panel Digital Inputs
The panel has two digital inputs available to monitor other components, senders or signals. The
analog input is preset to fuel level and cannot be congured. The digital inputs can be used for a
number of purposes including alarms and shutdowns.
