ODB LCT6000 - Axis) Boom Assembly

119
ODB COMPANY
800-446-9823 LCT6000

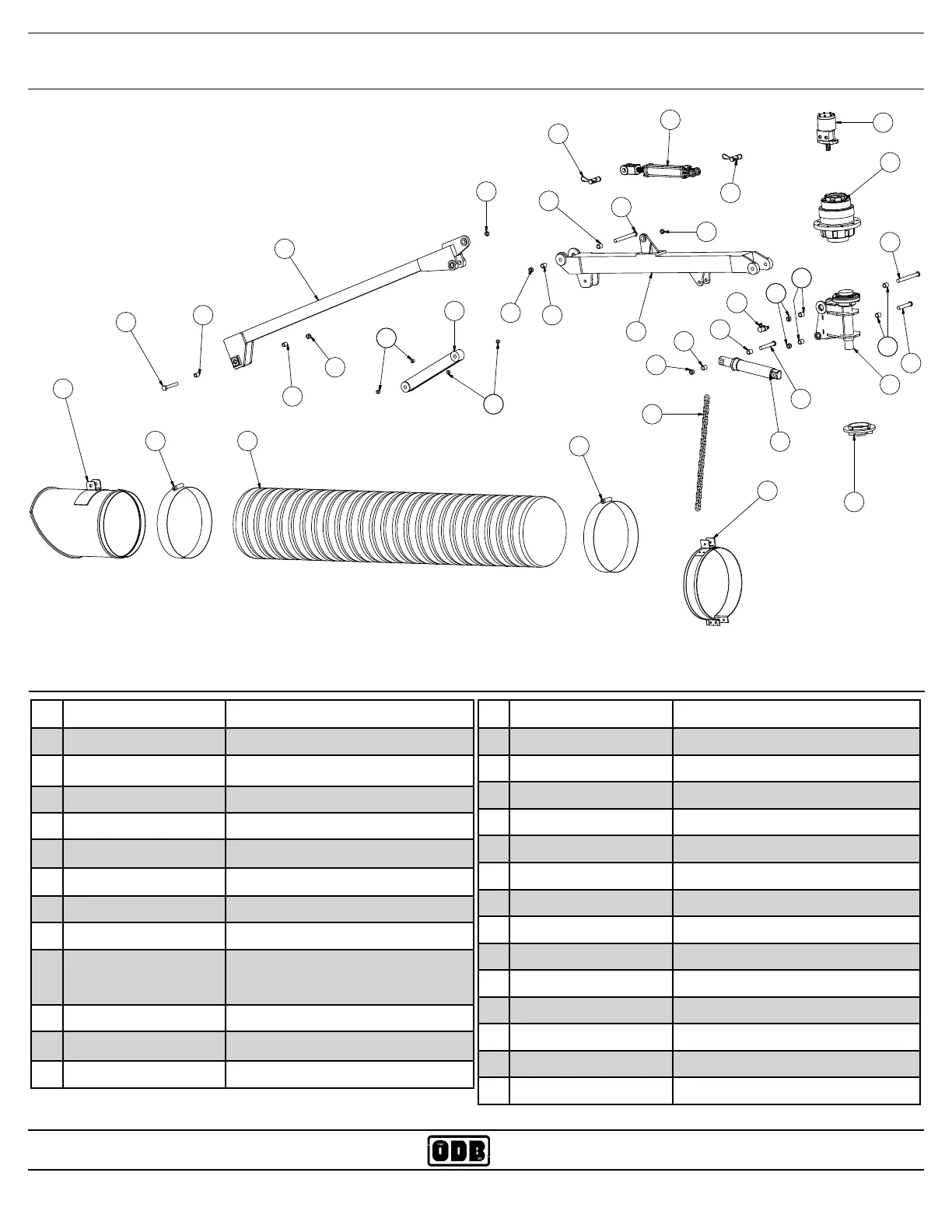

11.4 (3 Axis) Boom Assembly
*All units are custom made, use numbers as a reference only.
(2010 thru present)
# PART NO. DESCRIPTION
1 800.707B Boom Mast
2 LCT616.606MA.2 Boom Arm, Up/Down
3 LCT616.606MA.1 Boom Arm, In/Out
4 SCL816.810 Cylinder, In/Out
5 SCL816.814 Pin
6 SCL816.812 Cylinder, Up/Down
7 800.704B Auburn Gear
8 800.701D Hydraulic Motor
9 SCL816.813
SCL816.813.24
Hose Support Tube,18"
Hose Support Tube, 24"
10 Call Chain
11
LCT616.601MA.HD
Nozzle, 45 degree
12 LCT616.603U Hose Support Band
# PART NO. DESCRIPTION
13 SDH.16.120.UC Intake Hose, 10' Long
14 LCT616.616 Hose Clamp
15 800.708 Bolt, 3/4-16 x 4.5" Long
16 HYF.1028 Fitting, 90 degree swivel
17 800.712 Nut, 3/4"
18 800.710 Bolt, 3/4-16 x 7.5" Long
19 800.711 Bolt, 5/8-11 x 4.5" Long
20 800.713 Nut, 5/8"
21 8X.002E Bushing, .75"IDx1"ODx1"
22 8X.002G Bushing, 1"IDx.375"ODx1"
23 8X.002F Bushing, .625"IDx.875"ODx1"
24 8X.002D Bushing, .625"IDx.75"ODx.5"
25 800.609 Bearing
26 800.709 Bolt, 3/4-16 x 5" Long
16" Diameter Setup,
18" will be different - please verify
