ODB LCT6000 - Engine Rocker Switch Wiring Diagrams

73
ODB COMPANY
800-446-9823 LCT6000
Service Section
Strobe Light Rocker Switch
Remote Throttle and Remote Clutch Rocker Switch

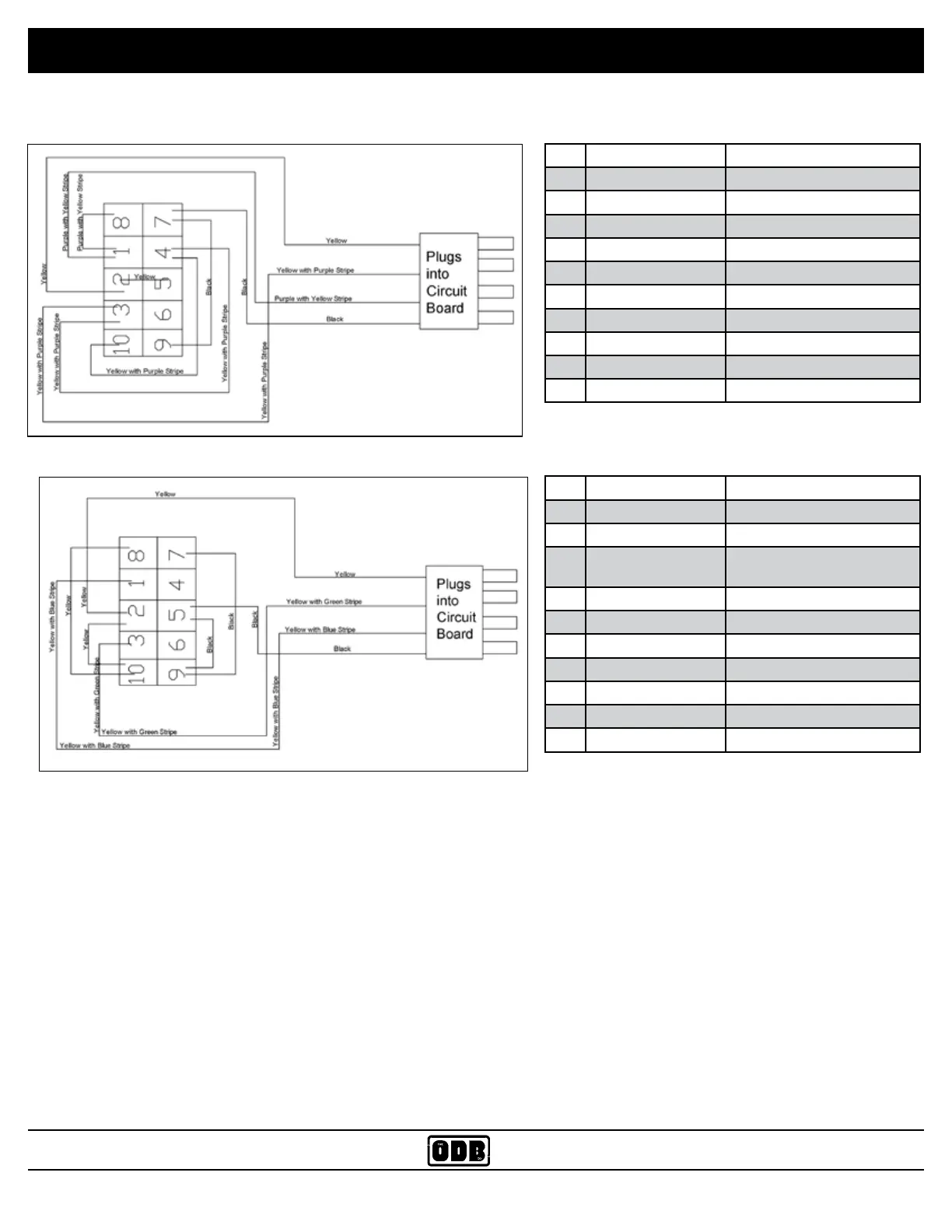

5.10.3 Engine Rocker Switch Wiring Diagrams
PIN# COLOR DESCRIPTION
1 Purple w/Yellow Str "+" Aux from Switch
2 Yellow "+" from Circuit Board
3 Yellow w/Purple Str "+" from Strobe Light
4 Yellow w/Purple Str Looped from #3
5 Yellow Looped from #2
6
7 Black "-" from Circuit Board
8 Purple w/Yellow Str Looped from #1
9 Black Looped from #7
10 Yellow w/Purpe Str Looped from #4
PIN# COLOR DESCRIPTION
1 Yellow w/Blue Stripe Throttle Fast / Clutch Engage
2 Yellow "+" from Circuit Board
3 Yellow w/ Green
Stripe
Throttle Slow
/ Clutch Disengage
4
5 Black "-" from Circuit Board
6
7 Black Looped from #9
8 Yellow Looped from #10
9 Black Looped from #5
10 Yellow Looped from #2
This plug is used for the Remote Throttle and the
Remote Clutch Rocker Switches.
