ODB LCT6000 - Boom Group

112
ODB COMPANY
800-446-9823 LCT6000

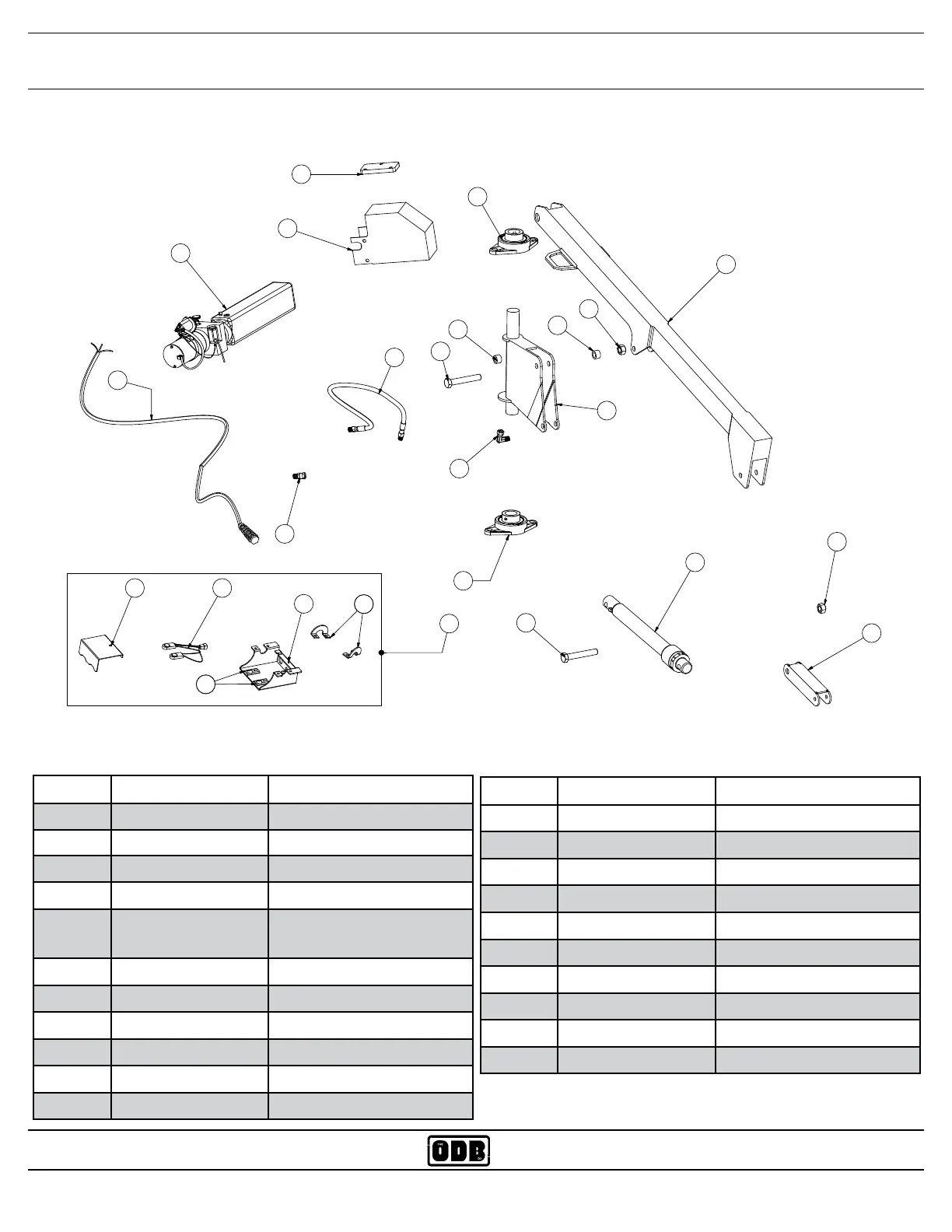

10.1 Boom Group
May 2012 - present
ITEM # PART NO. DESCRIPTION
1 LCT616.606A Boom Arm
2 SCL816.606A Boom Mast
3 MP-CS.150.12 Boom Cylinder
4 LCT616.801 Boom Mast Bearings
5 STD.2320.A Up/Dwn Switch Assmbly
(Items #6 - 9)
6 STD.2321C Push Buttons w/ Harness
7 STD.2322 SS Button Hold Down
8 Push Button Box
9 LCT616.615D Hold Down Bracket
10 STD.2320E Cover Plate
11 ZENC.625 Nut
ITEM # PART NO. DESCRIPTION
12 LCT616.607 Hose Support Hanger
13 5CZ.625.4.0 Bolt
14 600.2322B Boom Harness
15 RMB531 Bushing
16 9405.4.4 90 Degree Fiting
17 LCT617.608 Hydraulic Hose
18 M3219.PC Boom Pump Cover
19 200022 Pump Spacer
20 MP-M3219.S Boom Pump
21 9205.4.4 Straight Fitting
