ODB LCT6000 - Trailer Plug Wiring Diagram

74
ODB COMPANY
800-446-9823 LCT6000
Service Section
White
(ground)
Red
(not used)
Yellow or Orange
(L Turn )
Green
(R turn)
Blue
(Electric Brakes)
Brown or Black
(marker)
Red
(terminated here)
Red
(runs from here to
the trailer bed)
Blue
Break-away
Switch
Plugs into truck
Plugs into trailer bed
recepticle
GD
TM
A
S
RT
LT
LCT60C, LCT600, LCT6000 and LCT650

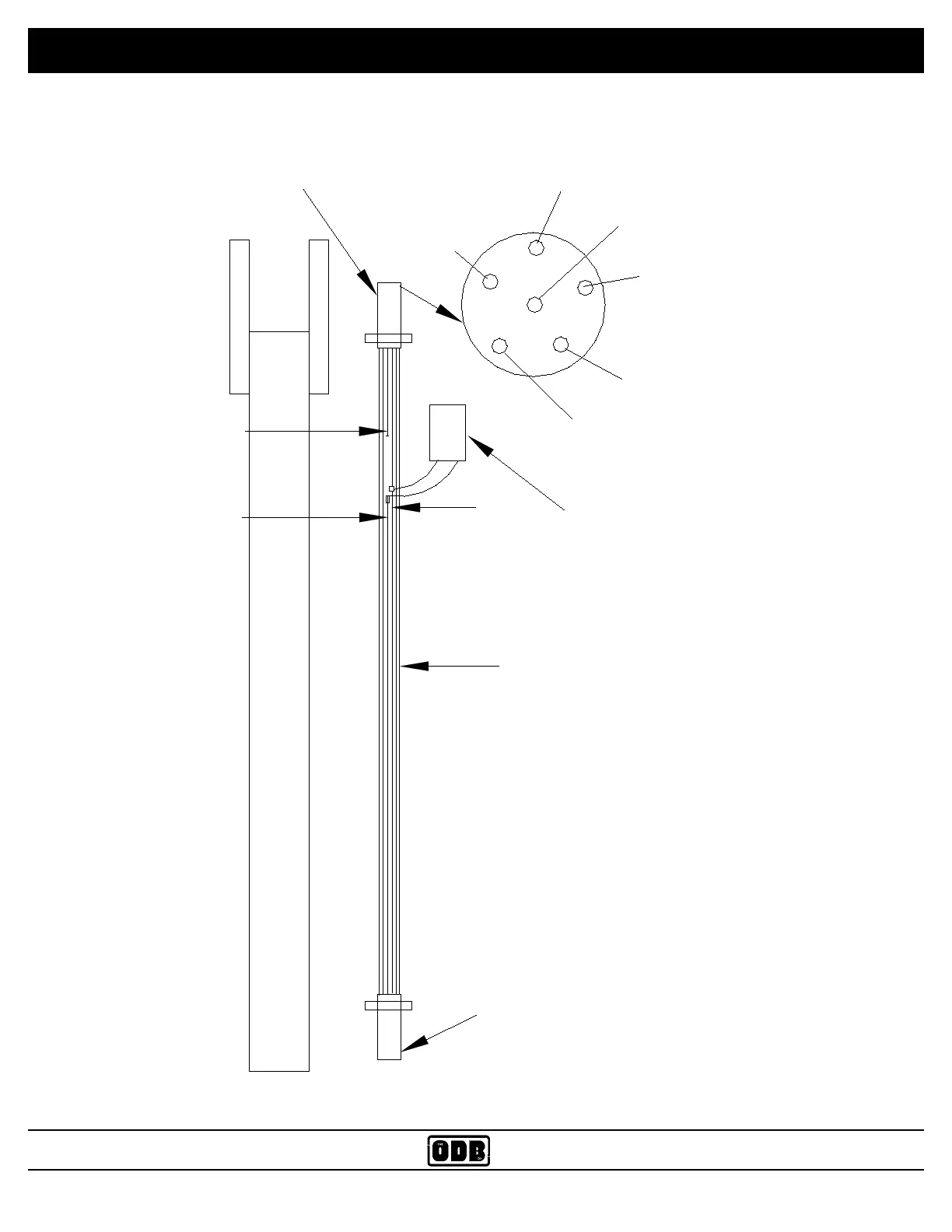

TRAILER PLUG DIAGRAM
Power Cord
5.10.4 Trailer Plug Wiring Diagram
