ODB LCT6000 - Remote Clutch and Remote Throttle Assembly

87
ODB COMPANY
800-446-9823 LCT6000

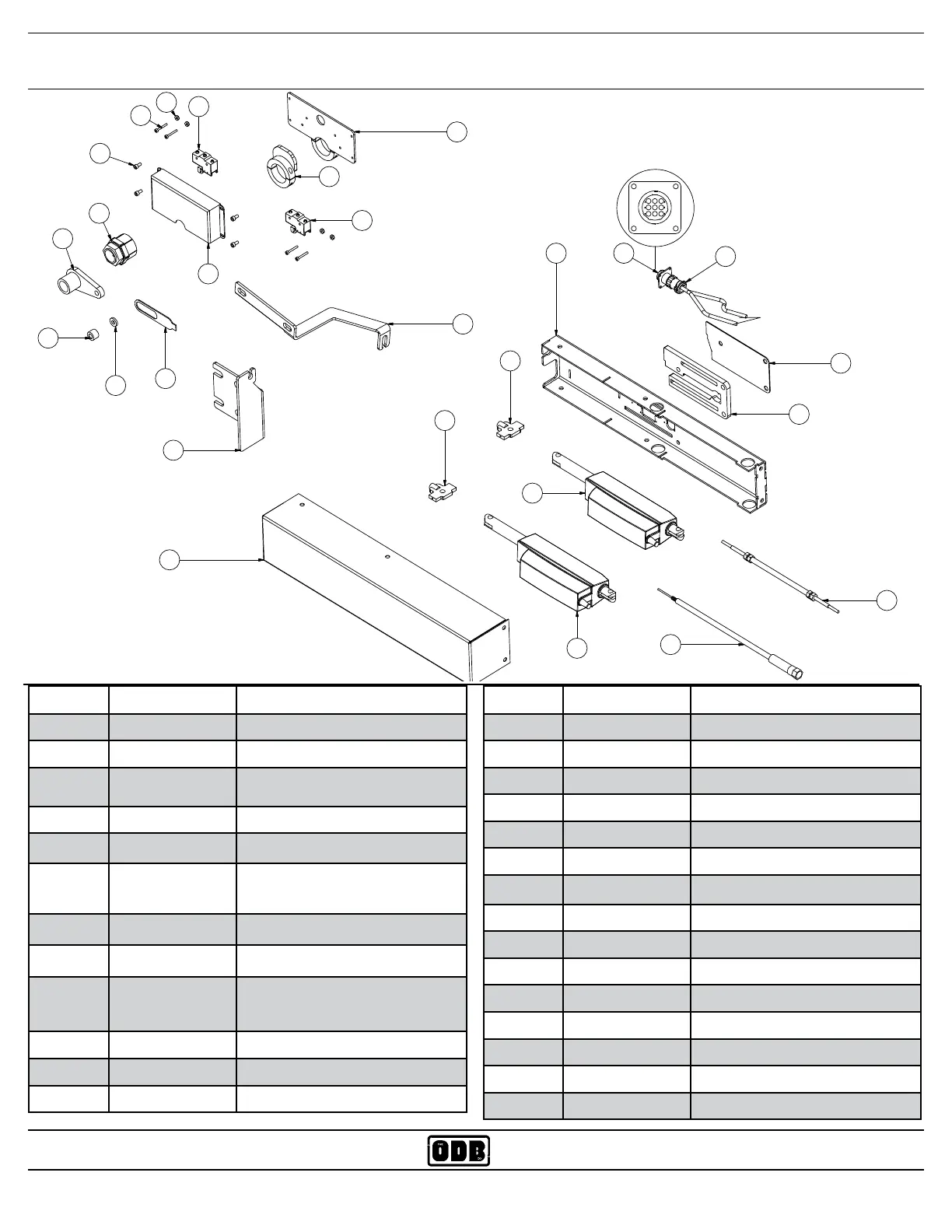

6.4 Remote Clutch and Remote Throttle Assembly
after March 2002- ver. 2
ITEM # PART NO. DESCRIPTION
STD.6550B Entire Assembly
1 STD.6551A Mounting Base
2 STD.6551A.01 Thick Spacer
3 STD.6551A.02 Thin Spacer
4 STD.2919 CPC Plug, 9 Pin
5 STD.6554
STD.6554B
Clutch Cable - Direct Drive
Clutch Cable - Belt Drive
6 STD.6556 Clutch Actuator (top)
7 STD.6559 Cable Adaptor - clutch
8 STD.6553
STD.6553B
Throttle Cable - direct drive
Throttle Cable - belt drive
9 STD.6557 Throttle Acutator (bottom)
10 STD.6558 Cable Adaptor-throttle
11 STD.6552A Cover
ITEM # PART NO. DESCRIPTION
12 4045.6565 Throttle Cable Bracket
13 4045.6564 Clutch Cable Bracket
14 STD.6563 Torque Coupling
15 STD.6562 Coupling Sleeve
16 STD.6560 PTO Cable Adaptor
17 STD.6561 Roller Bearing
18 STD.6568 Spacer Washer
19 STD.6569 Collar Cam (3x only)
20 800.433 Limit Switch (3x only)
21 STD.6571 Cover
22 STD.6570 Limit Switch Bracket
23 BSB632X.1.00 Bolt 1in
24 NS632ESN Nut
25 BSB1032X.375 Bolt Bolt .375in
26 STD.2916 CPC Housing
22
20
20
19
21
14
15
17
18
16
13
12
11
10
7
1
8
5
9
6
2
3
Wires are a part of the Remote
Clutch and Throttle Acuators
4
26
23
24
25
