ODB LCT6000 - Hinged Boom Frame Assembly - Gear Drive

120
ODB COMPANY
800-446-9823 LCT6000

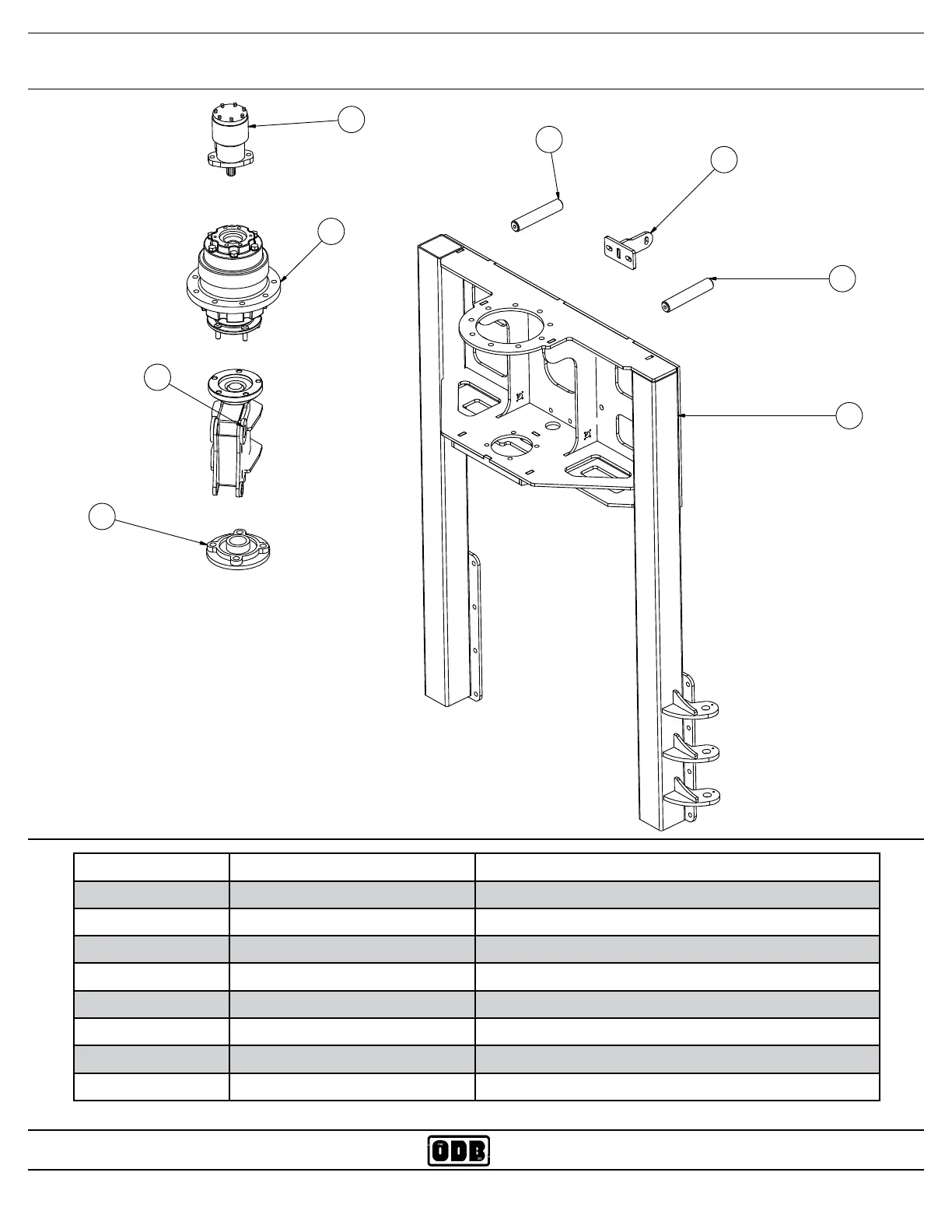

11.5 Hinged Boom Frame Assembly - Gear Drive
2or 3 Axis units July 2005 and after
5
4
3
2
7
8
1
6
ITEM # PART NUMBER DESCRIPTION
1
800.600C Boom Frame
2
SCL816.501 Bearing
3
800.707A Boom Mast, Knuckle
4
800.704B Auburn Gear (see breakdown next page)
5
800.801D Hydraulic Motor
6
800.609 Frame Support
7
SCL816.503L Boom Stop, LH
8
SCL816.503R Boom Stop, RH
