ODB LCT6000 - Or 3 X) Hydraulic Tank - Valve Body Group

116
ODB COMPANY
800-446-9823 LCT6000

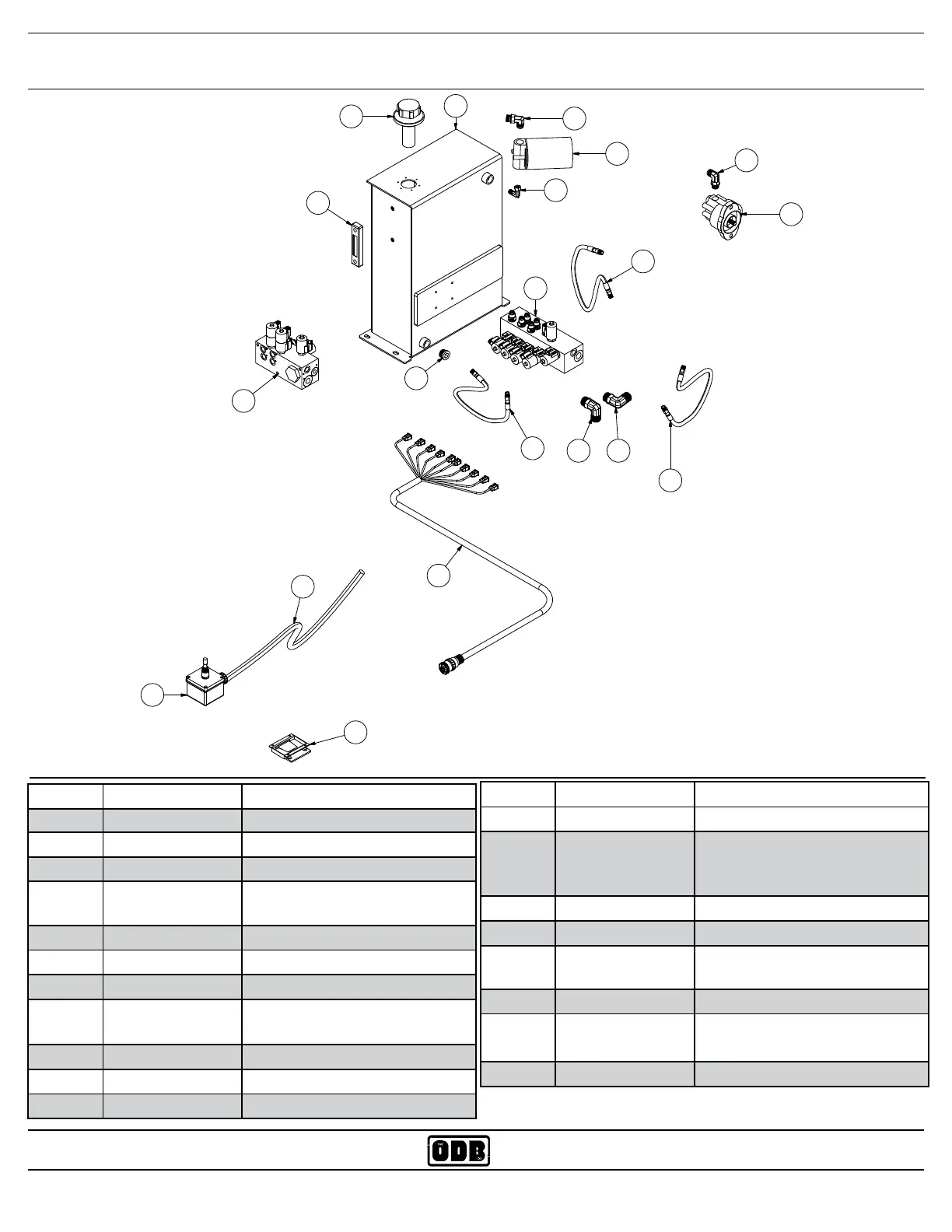

11.1 (2 or 3X) Hydraulic Tank - Valve Body Group
LCT600 / 6000 multi-axis units - January 2006 and after
Notes: All hydraulic hoses and wiring harness are special and
have to be made up to t the particular application.
15
16
18
19
12
17
9 10
11
7
5
4
6
2
13
14
*2 Station
2 axis
*4 Station
3 axis
1
3
8
8
ITEM # PART NUMBER DESCRIPTION
1
600.2401 Hydraulic Tank
2
800.2005 Filler Cap
3
SCL.5CT1214 Site Guage
4
800.2003
800.2004
Hydraulic Filter Assembly
Filter Only
5
90 Degree Fitting To Tank
6
90 Degree Fitting
7
*Hose* Hydraulic Hose, 1/2"
8
STD.9057
550.1700B
Valve Body 2 Section
Valve Body 4 Section
9
90 Degree Fitting
10
90 Degree Fitting
11
*Hose* Hydraulic Hose, 1/2"
ITEM # PART NUMBER DESCRIPTION
12
*Hose* Hydraulic Hose, 1/2"
13
STD.9015
650.142
Hydraulic Pump, Double
Valve
Hydraulic Pump, Single Valve
14
90 Degree Fitting
15
Varies Wiring Harness to Valve Body
16
Varies Wiring Harness To Joystick
Fitting To Tank
17
Fitting to tank
18
800.950
800.900
Joystick Assembly, Single
Joystick Assembly, Dual
19
800.952 Single Joystick Holder
