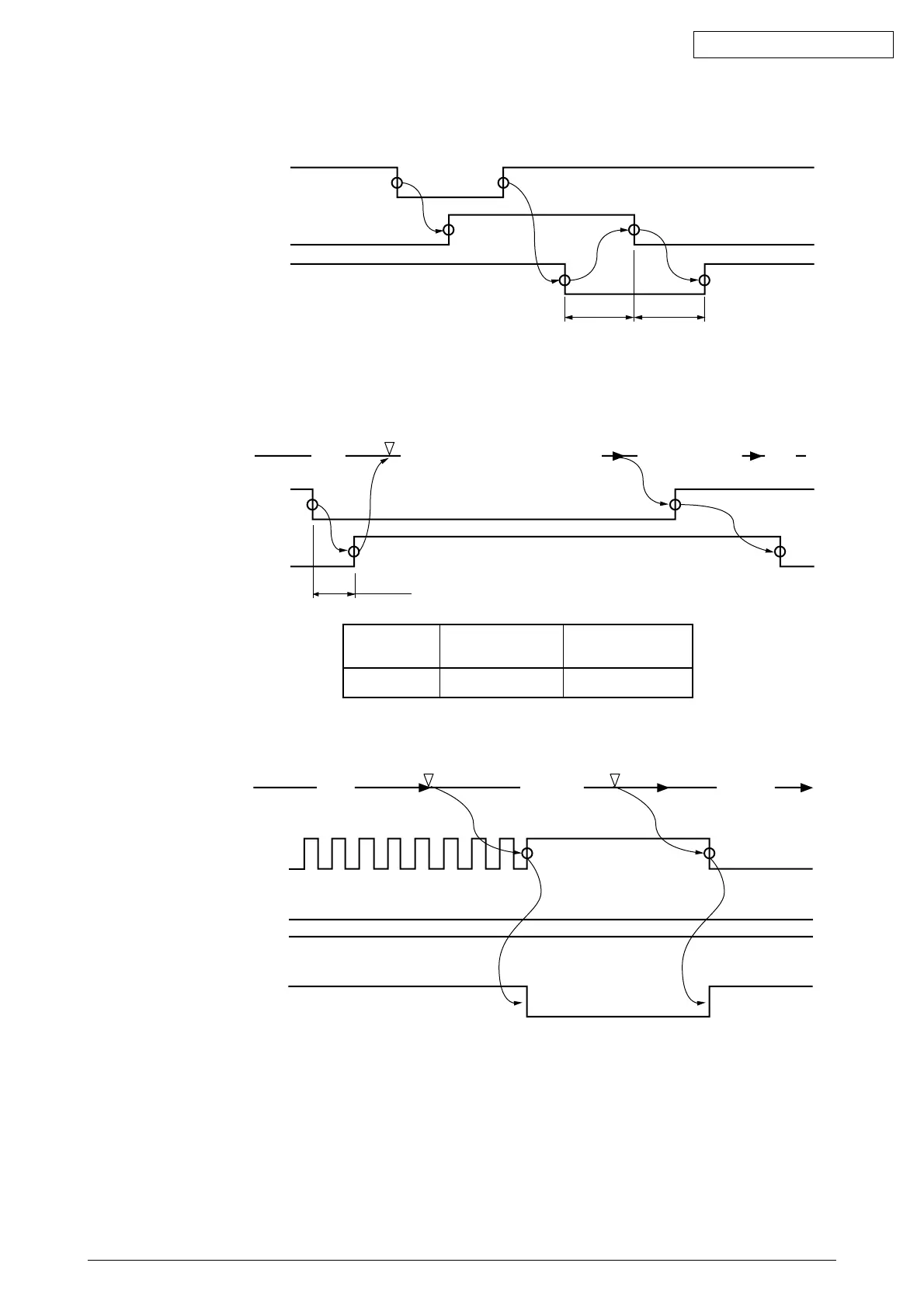

d) Data Reception (Menu Setting: Ack/Busy Timing=Ack while Busy)
nStrobe
H
L
Busy
H
L
nAck
T(ACK)/2 T(ACK)/2
H
L
Printer
Status
Idle Clearing Send/Receive Buffer Canceling Job Idle
I/F Initialization
nInit
H
L
Busy
3 MICRON SEC
H
L
T(INIT)
Menu Setting
(I-PRIME)
T(INIT ) 2.0µs
50 MICRON SEC
33.3µs
Idle Off-line On-line
Notice of Transition to Off-line
Notice of Transition to On-line
H
L
H
L
H
L
H
L
Printer
Status
Busy
PError
nFault
Select
* The T (ACK) values are the same as those shown in the section c).
e) I-Prime (Not at menu-set I-PRIME=DISABLE)
f) Off-line
